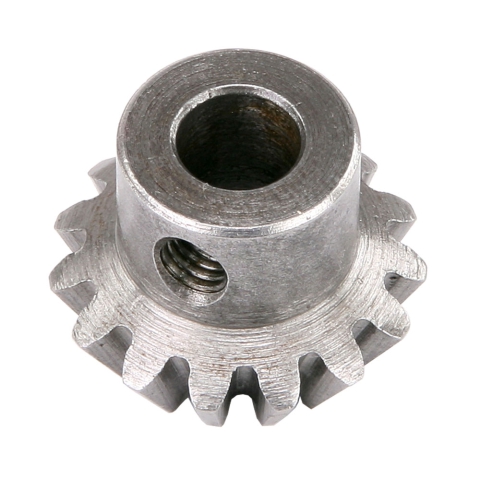

Gear, Bevel Z-Axis 15 Teeth, Bench Mill

Gear, Bevel Z-Axis 15 Teeth, Bench Mill
  • 15 tooth bevel gear - Z-axis
  • 8 mm bore
  • 20 mm height, 25 mm width
  • M5 set screw threaded hole
  • HiTorque bench mill, large bench mill and SIEG SX2.7/SX3.5
Part Number: 5754
Weight: 0.06 lb

Price: $21.02

In stock
Z-Axis drive shaft gear. This gear has 15 teeth, a bore of 8mm and is secured with a M5x5 cone point set screw.

Used on HiTorque Bench Mill ( SIEG SX2.7) and HiTorque Large Bench Mill (SIEG SX3.5).

Approximate dimensions are 20 mm in height and 25 mm in width.

See Used On tab for reference to machines using this part and the corresponding drawing number.
