Power Feed, Bench Mill - Long Table (27.5" x 6.25")

Fits 5550 & 6550/6570 HiTorque Bench Mills (SIEG Sx2.7L)
Clutch disengages power feed when not in use
Adjustable limit switches restrict travel
120-240V 50-60Hz

Part Number: 5850
Weight: 11.2 lb

Price: $429.95

Share this page:
http://lmscnc.com/5850

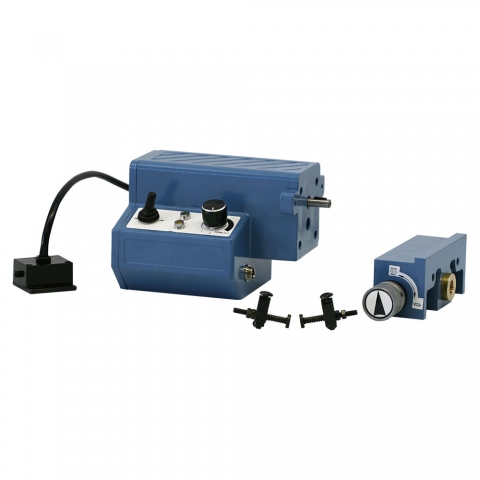

Power table feed for the SX2.7L mill.

This power feed mounts on the left end of the mill's table and drives the X-axis feed screw. It is variable speed (0 to 20 inches per minute).

The kit takes about 20 minutes to install. It is a bolt-on accessory for the bench mill and requires no modifications to the machine. The power feed adds 8 1/4" inches to the left end of the table.

The power feed works on 120-240V 50-60Hz power. It has a computer-style (IEC 60320 C3/C4) power cord that unplugs from the power supply unit. This makes it easy to adapt for other countries. The furnished power cord has a North American (NEMA 5-15P) wall plug.

* This kit is designed for SIEG Sx2.7L mills with a LONG table (27.5" x 6.25")

Chris' Tips

Chris' Tips
Here's a video showing the power feed in action.

This 24-minute video by Frank Hoose of mini-lathe.com shows installation of the power feed and includes Frank's review.

Compatibility

Compatibility

This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)

SIEG X2.7L Bench Mill
WEN 33075 WEN Bench Mill
LittleMachineShop.com 5550 HiTorque Bench Mill
LittleMachineShop.com 6550 HiTorque Bench Mill
LittleMachineShop.com 6570 HiTorque Bench Mill
SIEG SX2.7L Bench Mill
