Clamping Kit, 7/16" T-Slot, Professional Grade 5-Piece
- Nut fits 7/16" (12 mm) T-Slots
- Stud thread: 3/8"-16
- 5 Pieces
- Made of IC45e steel, hardened to HRC30-40
- Manufactured at factory for top US brands
Weight: 1.33 lb
Price: $11.95
http://lmscnc.com/5910
This professional grade clamping kit is manufactured at a world class factory that produces high quality US brands. Pieces are made of IC45e steel for improved strength and all parts are case hardened or heat treated to HRC30-40.

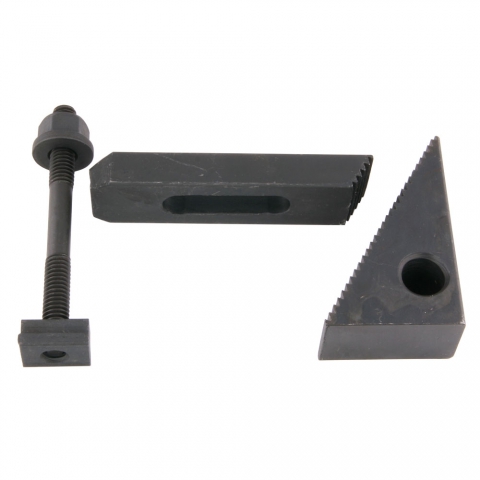

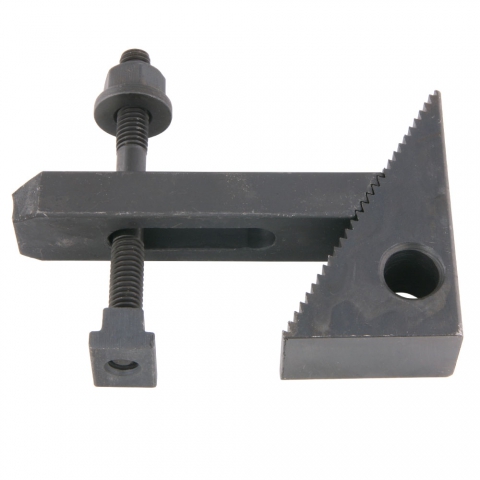

The t-slot clamp kit includes 1 each of:
- 7/16" T-slot nut
- 3/8"-16 stud
- Step clamp
- Step block
- Flange Nut
This machinist clamping kit fits the 12 mm T-slots on the mini mill.
The stated dimension of the clamping kit is the width at the top of the T-slot.
Chris' Tips
|
|
Slot |
B |
Thread A |
C |
D |
E |
Length |
|
|
1/4" |
0.24" |
M5 |
0.23" |
0.10" |
0.38" |
0.38" |
|
|
3/8" |
0.37" |
5/16" - 18 |
0.50" |
0.19" |
0.63" |
0.88" |
|
|
7/16" |
0.43" |
3/8" - 16 |
0.50" |
0.28" |
0.69" |
0.88" |
|
|
1/2" |
0.49" |
3/8" - 16 |
0.50" |
0.28" |
0.88" |
0.88" |
|
|
5/8" |
0.61" |
1/2" - 13 |
0.63" |
0.34" |
1.00" |
1.13" |
|
|
6 mm |
5.7 mm |
M5 |
8.2 mm |
4 mm |
10 mm |
12 mm |
|
|
8 mm |
7.7 mm |
M6 |
10 mm |
5 mm |
13 mm |
13 mm |
|
|
10 mm |
9.7 mm |
M8 |
12 mm |
6 mm |
15 mm |
15 mm |
|
|
12 mm |
11.7 mm |
M10 |
12 mm |
7 mm |
18 mm |
18 mm |
 |
Kit Pieces |
Nominal Sizes for 7/16" T-Slot Nut
Suitable for 12 mm T-Slot tables on common mini mills.
 |
