Motor, 1000 Watt Brushless, HiTorque Large Bench Mill

1000w Motor, 1.34 HP
Drives the large bench mill spindle
Fits HiTorque large bench mills
Fits SIEG SX3.5 large bench mills

Part Number: 5938
Weight: 10.1 lb

$499.95 On Sale

Regularly $699.95

Share this page:
http://lmscnc.com/5938

Spindle motor for the HiTorque Large bench mills and SIEG SX3.5 bench mills. This brushless motor is 1.34 hp (1000 Watts).

Dimensions: Motor Shaft diameter 14mm (0.55"), shaft overall length 43mm (1.70"), base 92mm x 92mm (3.62" x 3.62"), overall length without shaft 175mm (6.89").

See Used On tab for reference to machines using this part and the corresponding drawing number.

Photos

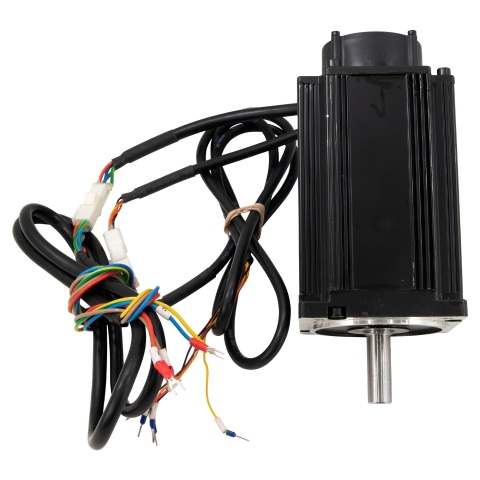

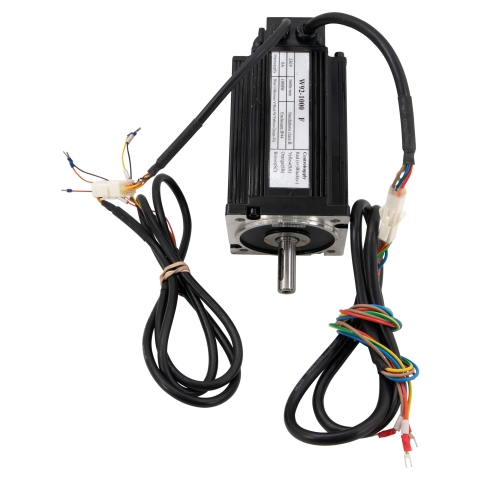

	Front with wiring

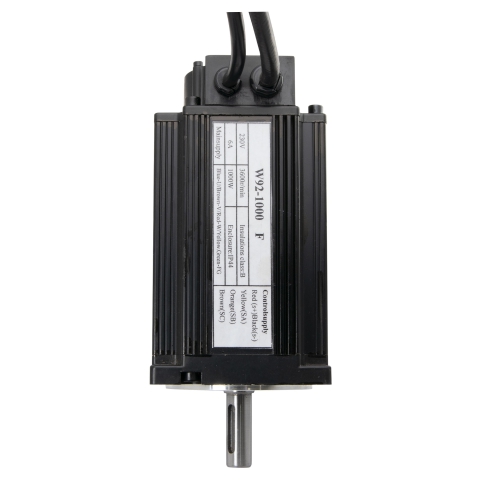

	Back view

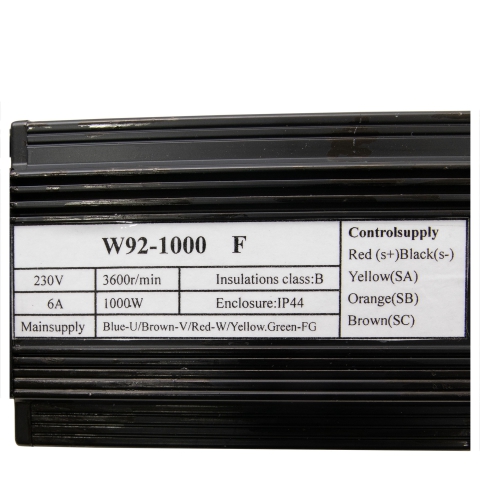

	Label

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
A033	LittleMachineShop.com 6700 HiTorque Large Bench Mill LittleMachineShop.com 6750 HiTorque Large Bench Mill Various SX3.5-US SIEG Large Bench Mill LittleMachineShop.com 6770 HiTorque Large Bench Mill
D22	LittleMachineShop.com 6750 HiTorque Large Bench Mill LittleMachineShop.com 6700 HiTorque Large Bench Mill Various SX3.5-US SIEG Large Bench Mill
D33	LittleMachineShop.com 6770 HiTorque Large Bench Mill

Click your model to see the complete parts list.
