Quick Change Tool Post Set, AXA
- Quick change tool post set for lathes with up to 12" swing
- AXA, or series 100 size
- Tool holders interchange with Aloris, Dorian, and Phase II
- All steel construction
- Includes five tool holders

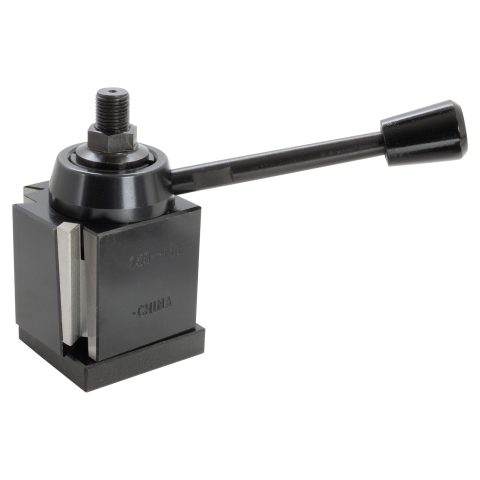

This AXA quick change tool post set is designed for lathes with up to 12" swing.
It is a good fit on 9x20 lathes, but requires some modification or our mounting sleeve.
Many people feel that these tool posts are too large for mini lathes, but others like the mass and rigidity they provide.
All working parts are hardened and ground. This lathe tool post set is completely sealed for maintenance-free operation.
The tool holders interchange with Aloris, Dorian, and Phase II.

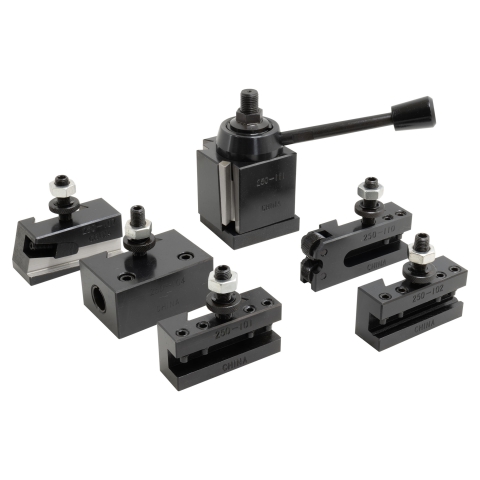

This lathe tool post set includes the tool post and the following tool holders:

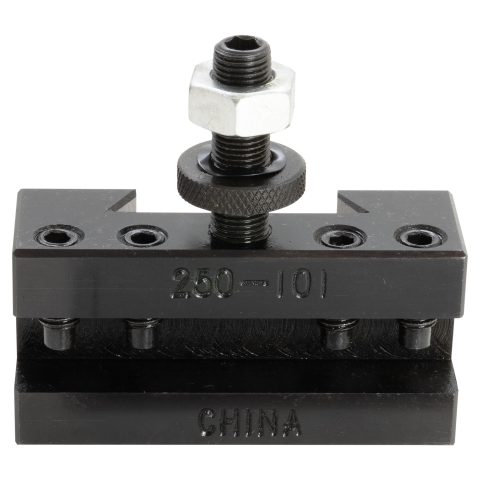

No. 1 - Turning & Facing Tool Holder

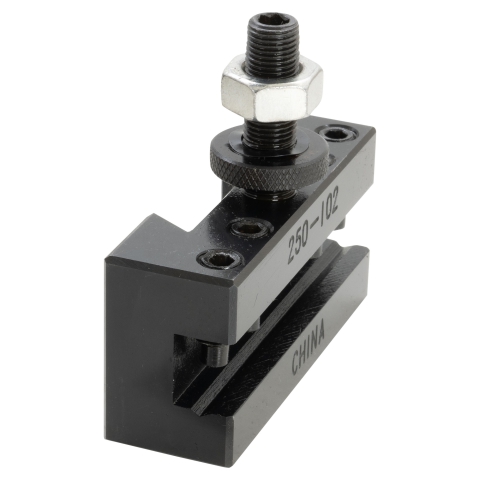

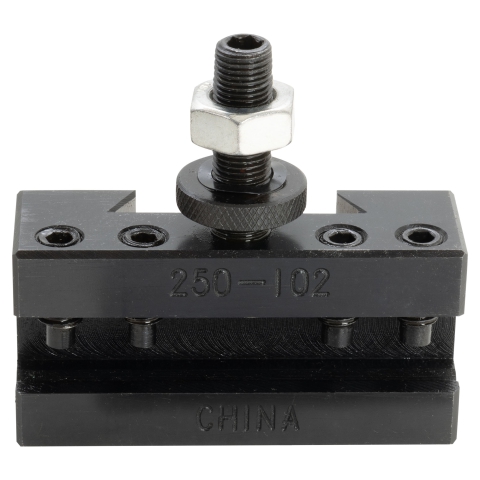

No. 2 - Boring, Turning & Facing Tool Holder

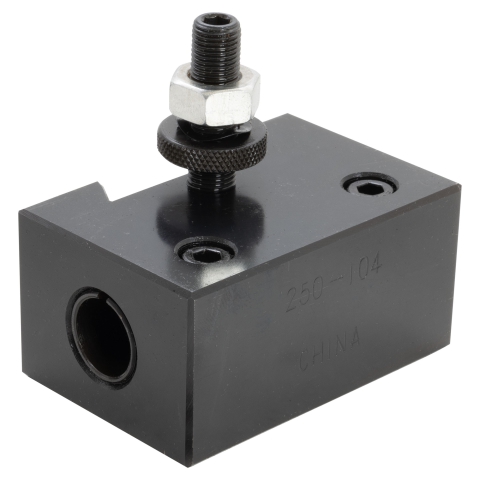

No. 4 - Heavy Duty Boring Tool Holder, will hold 5/8" or 3/4" round shanks.

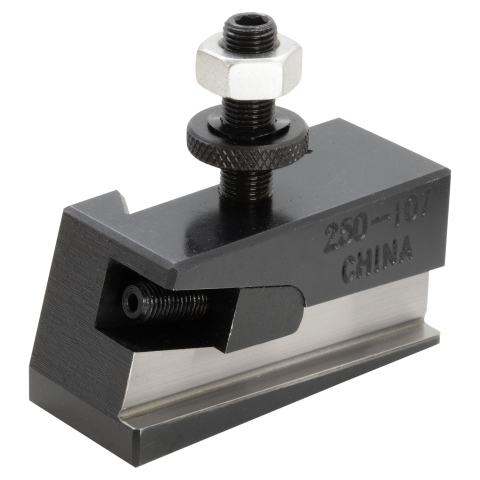

No. 7 - Universal Parting Blade Holder

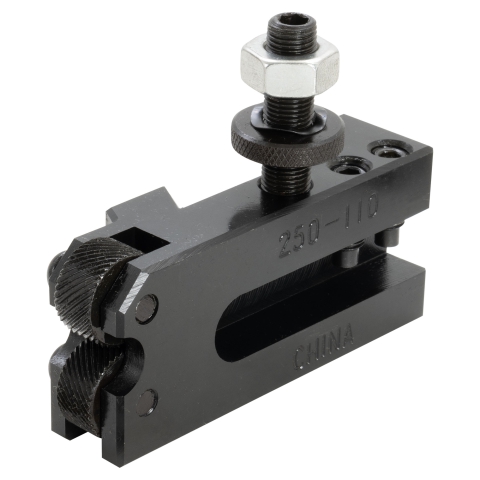

No.10 - Knurling, Facing & Turning.
This set includes a 9/16"-18 threaded stud and a piece of steel from which you can make a T-slot nut to fit your lathe.
See the comparison chart of the quick change tool post sets we carry.
This QCTP is a good fit for the 9x20 lathe. it is a bolt-on accessory with the addition of our 3712 Quick Change Tool Post Mount, AXA for 9x20 Lathes
This product works with these LittleMachineShop.com products:
- 1777 Compound Rest Bottom, Mini Lathe, Drilled & Milled
- 1881 Compound Rest Bottom, Mini Lathe, Drilled & Milled, 20 TPI
- 4914 Compound Rest Top, for AXA QCTP, Bench Lathe
- 2283 Quick Change Boring Tool Holder, AXA
- 2284 Quick Change Cut-Off Tool Holder, AXA
- 2285 Quick Change Knurling & Turning Tool Holder, AXA
- 3712 Quick Change Tool Post Mount, AXA for 9x20 Lathes
- 2282 Quick Change Turning & Boring Tool Holder, AXA 3/16" - 1/2"
- 2281 Quick Change Turning & Facing Tool Holder, AXA 3/16"-1/2"
- 3970 Set Screw, M8x20, Socket Dog Point, Set of 10
This product works with lathes with a 8 to 12 inch swing including:
- MX-8x14 Preenex (and others) 8x14 Lathe
- Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
- Grizzly G0768 8x16 Benchtop Lathe
- Emco Compact 8 8x17 Lathe
- LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
- SIEG C4 8.5x16 Bench Lathe
- SIEG SC4 8.5x16 Bench Lathe
- Travers Tools OT218410 OTMT 8x16 Bench Lathe
- LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
- LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
- BD-920N Jet 9x20 Lathe
- Grizzly G4000 9x19 Bench Lathe
- Harbor Freight 45861 Central Machinery 9x20 Bench Lathe
- SIEG C6 10x21 Lathe
- Busy Bee Tools CX705 Craftex 10x21 Lathe Mill Combo
- Grizzly G0516 10x21 Lathe Mill Combo
- Prazi SD500 10x20 Lathe
- SIEG M6 10x21 Lathe Mill Combo
- SIEG C8 11x24 Lathe
