Compound Rest Top, Bench Lathe for AXA QCTP

Bench lathe compound rest to hold a AXA QCTP
Threaded 9/16-18 for AXA quick change tool post
Fits SIEG C4, SC4, and HiTorque bench lathes
6mm oil fitting (Not Included)

Part Number: 4914
Weight: 2.47 lb

Price: $29.95

This product is currently backordered.

Estimated availability:
13-Dec-2024
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/4914

Description

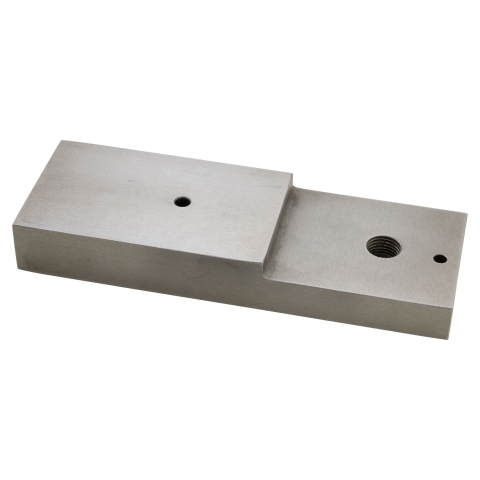

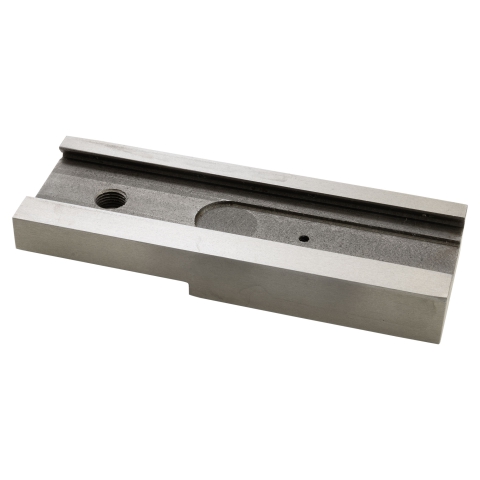

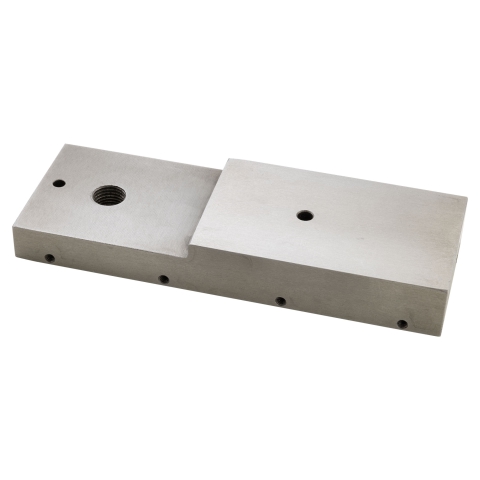

This compound rest top is specially modified to mount the AXA quick change tool post on a HiTorque 8.5x16 or 8x20 Bench Lathe or a SIEG C4 or SC4 lathe.

The threading is 9/16-18 to support an AXA quick change tool post.

This is the compound rest top that comes equipped on the HiTorque Deluxe bench lathes. See Used On tab for reference to machines using this part and the corresponding drawing number.

If replacing a bench lathe standard tool post with an AXA QCTP, see the compatibility tab for reference to machines that are compatible with this product.

Specifications

Specifications
Length	6.69" (170.0 mm)
Width	2.36" (60.0 mm)
Tall Section Length	3.94" (100.0 mm)
Narrow Section For Tool Post - Length	2.76" (70.0 mm)
Tall Section Height	0.94" (24.0 mm)
Narrow Section For Tool Post - Height	0.67" (17.0 mm)
Threaded Hole	9/16"-18
