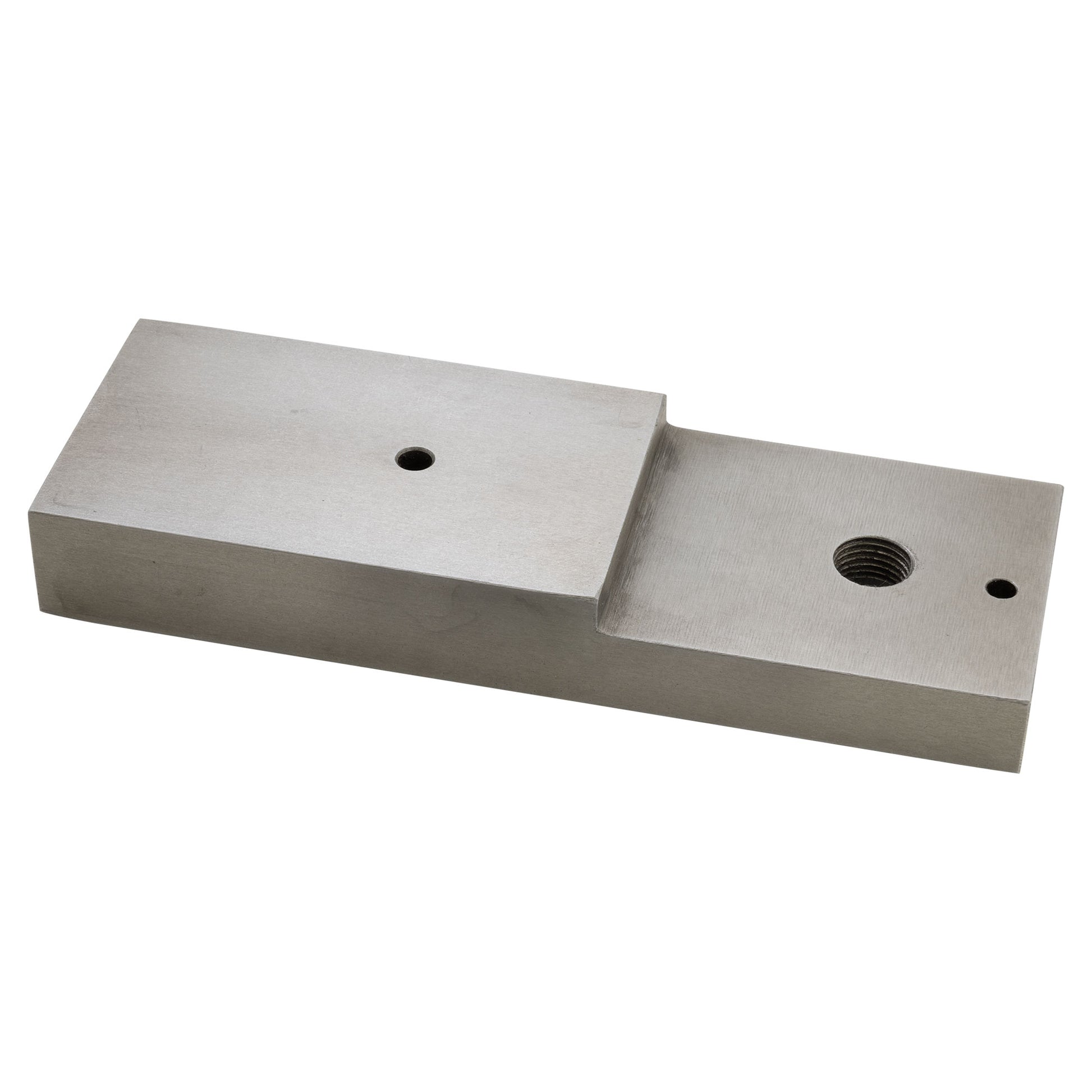

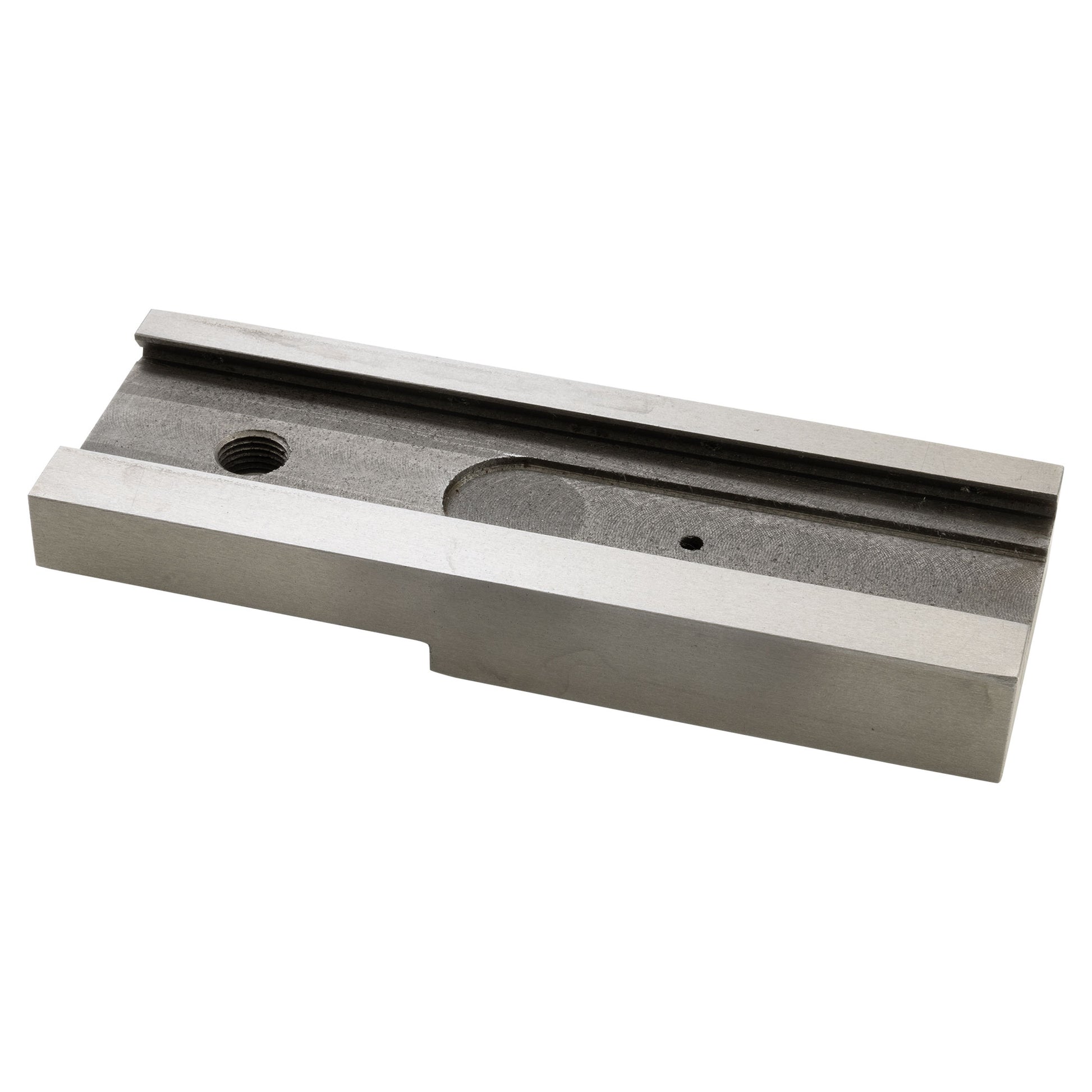

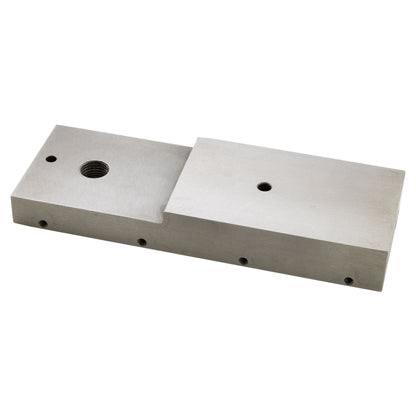

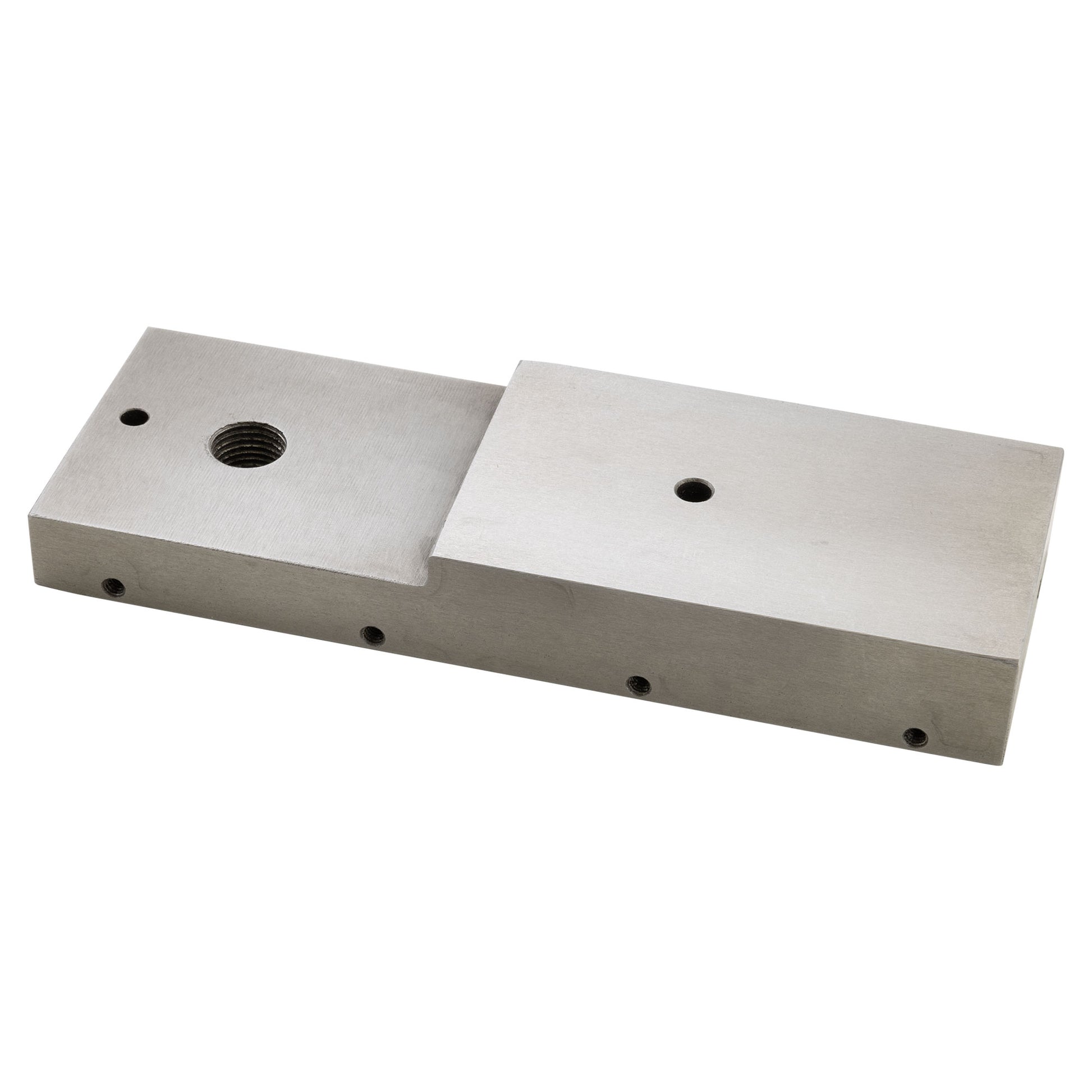

Compound Rest Top, 8.5x20 Bench Lathe for AXA QCTP

Compound Rest Top, 8.5x20 Bench Lathe for AXA QCTP

4914

$29.95 USD
$29.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Bench lathe compound rest to hold a AXA QCTP
  • Threaded 9/16-18 for AXA quick change tool post
  • Fits SIEG C4, SC4, and HiTorque bench lathes
  • 6mm oil fitting (Not Included)
*Will this fit my machine? Check our Replacement Parts

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

This is the compound rest top that comes equipped on the HiTorque Deluxe bench lathes.

This compound rest top is specially modified to mount the AXA quick change tool post on a HiTorque 8.5x16 or 8.5x20 Bench Lathe or a SIEG C4 or SC4 lathe. The threading is 9/16-18 to support an AXA quick change tool post.

If replacing a bench lathe standard tool post with an AXA QCTP, see the compatibility tab for reference to machines that are compatible with this product.

*NOTE: If you have a newer 9x20 HiTorque Bench Lathe please order part 6573 (http://lmscnc.com/6573)

Specifications

Length: 6.693" (170 mm)

Width: 2.362" (60 mm)

Tall Section Length: 3.937" (100 mm)

Narrow Section For Tool Post - Length: 2.756" (70 mm)

Tall Section Height: 0.945" (24 mm)

Narrow Section For Tool Post - Height: 0.669" (17 mm)

Threaded Hole: 9/16"-18

Product Compatibility

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

  • LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
  • SIEG C4 8.5x16 Bench Lathe
  • SIEG SC4 8.5x16 Bench Lathe
  • Travers Tools OT218410 OTMT 8x16 Bench Lathe
  • LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
  • LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
  • LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
  • LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
