Clamping Kit, 7/16" T-Slot, Professional Grade

Clamping Kit, 7/16" T-Slot, Professional Grade
  • Nuts fit 7/16" (12 mm) T-Slots
  • Stud thread: 3/8"-16
  • 58 Pieces
  • Made of IC45e steel, hardened to HRC30-40
  • Storage rack included
Part Number: 5975
Weight: 16.7 lb

Price: $86.95

In stock
Quantity:

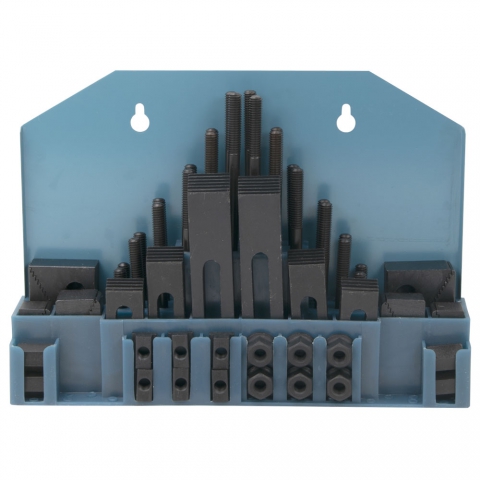

58-piece clamping kit 3/8"-16, 7/16" T-Slot.

This professional grade clamping kit is manufactured at a world class factory that produces high quality US brands. Pieces are made of IC45e steel for improved strength and all parts are case hardened or heat treated to HRC30-40.

The T-slot clamp kit includes:

24 Studs (3/8"-16) - 4 each 3" 4" 5" 6" 7", and 8"

- 4 Coupling nuts

- 6 Flange nuts

- 6 Forged steel step clamps

- 6 T-slot Nuts

- 12 Step blocks in pairs

- 1 Wall Rack

This machinist clamping kit fits the 12 mm T-slots on the mini mill.

The stated dimension of the clamping kit is the width at the top of the T-slot.

Chris Chris' Tips
Measure the width at the top of the T-slot as shown in the photo below. This is the dimension given for T-slot nuts and clamping kits. For example, if you measure 0.468 at the top of the T-slot, you should get a 7/16” (0.438”) T-slot nut or clamping kit.


Following are the dimensions of the T-slot nuts that we sell separately or as part of a set.

Part Number

Slot

B

Thread A

C

D

E

Length

3097, 2718*

1/4"

0.24"

M5

0.23"

0.10"

0.38"

0.38"

5592, 5491*

3/8"

0.37"

5/16" - 18

0.50"

0.19"

0.63"

0.88"

1269, 1144*, 1426*, 5910*, 5975*

7/16"

0.43"

3/8" - 16

0.50"

0.27"

0.69"

0.88"

2021, 1268*

1/2"

0.49"

3/8" - 16

0.50"

0.28"

0.88"

0.88"

5971, 3667*, 4833*

5/8"

0.61"

1/2" - 13

0.63"

0.34"

1.00"

1.13"

2059, 1943*, 2718*

6 mm

5.7 mm

M5

8.0 mm

4 mm

10 mm

10 mm

2058, 1427*, 1813*, 1972*, 2039*, 3442*

8 mm

7.7 mm

M6

10 mm

5 mm

13 mm

13 mm

2991

10 mm

9.7 mm

M8

12 mm

6 mm

15 mm

15 mm

1418

12 mm

11.7 mm

M8

12 mm

7 mm

18 mm

18 mm

*Indicates t-slot nuts included as part of a clamping kit.


Specifications
Stud Thread 3/8" -16
Nominal T-Slot Width 7/16" (12 mm)
T-Slot Width Range 0.43" - 0.49" (10.9 mm - 12.6 mm)

Nominal Sizes for 7/16" T-Slot Nut

Suitable for 12 mm T-Slot tables on common mini mills.

7/16 inch t slot nut

Compatibility

This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)

  •   Bolton XJ-9510 Mill/Drill
  •   Clarke CMD300 Milling Drilling Machine
  •   Grizzly G8689 Mini Milling Machine
  •   Hare & Forbes HM-10 Mill/Drill
  •   Princess Auto 8507667 Powerfist Mini Mill
  •   SIEG X2-MT3 Mini Mill
  •   Micro-Mark 82573 MicroLux Milling Machine
  •   BusyBee CX605 Craftex Mini Mill
  •   Cummins (Tools Now) 7877 Mini Mill
  •   Eastwood 32498 Mini Mill
  •   Harbor Freight 44991 Central Machinery Mill/Drill
  •   Homier 03947 Speedway Mini Mill
  •   King Canada KC-15VS King Industrial Mini Mill
  •   Northern Tool 49657 KLUTCH Mini Mill
  •   Penn Tool Co XJ-9510-1 Precise Mini Mill
  •   SIEG X2-R8 Mini Mill
  •   Travers Tools OT2213 OTMT Mini Mill
  •   SIEG X2P Mini Mill
  •   LittleMachineShop.com 4962 SIEG Mini Mill
  •   SIEG X2D Mini Mill
  •   SIEG X2L Mini Mill
  •   WEN 33013 WEN Mini Mill
  •   SIEG X2LF Mini Mill
  •   BusyBee CX612 Craftex Mini Mill
  •   SIEG SX2 Mini Mill
  •   Micro-Mark 84630 MicroLux Mini Mill
  •   LittleMachineShop.com 3900 HiTorque Mini Mill
  •   SIEG SX2L Mini Mill
  •   LittleMachineShop.com 3960 HiTorque Mini Mill
  •   LittleMachineShop.com 4190 HiTorque Mini Mill
  •   LittleMachineShop.com 6450 HiTorque Mini Mill
  •   LittleMachineShop.com 3990 HiTorque Mini Mill
  •   SIEG SX2LF Mini Mill
  •   Grizzly G0781 Mill/Drill
