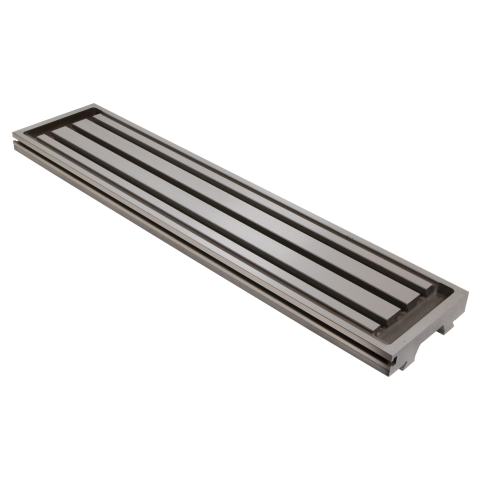

Table, HiTorque Bench Mill Deluxe, Long Table
- Bench mill table, long
- Fits HiTorque deluxe bench mills
- Fits SIEG SX2.7L bench mills
- L x W x H: 27.56" x 6.3" x 1.57"
- Compatible with 7/16" or 12 mm T-Slot nuts
Table for the deluxe HiTorque bench mill with long table as well as SIEG SX2.7L bench mills.
The table has 3 T-Slots at 12 mm which will support both 12 mm or 7/16" T-Slot nuts.
The overall length is 700 mm (27.56"), width 160 mm (6.30") and height 40 mm (1.57").
See Used On tab for reference to machines using this part and the corresponding drawing number.
Length | 27.56" (700.0 mm) |
Width | 6.30" (160.0 mm) |
Height | 1.57" (40.0 mm) |
T-Slots | 0.47" (12.0 mm) |

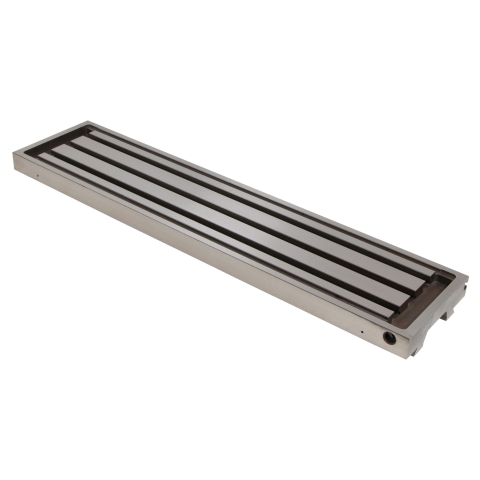

Reverse View |
In your instruction manual, this part appears on the parts list as:
Item No | Models |
---|---|
C36 | LittleMachineShop.com 5550 HiTorque Bench Mill Various SX2.7L-US SIEG Bench Mill LittleMachineShop.com 6550 HiTorque Bench Mill LittleMachineShop.com 6570 HiTorque Bench Mill |
