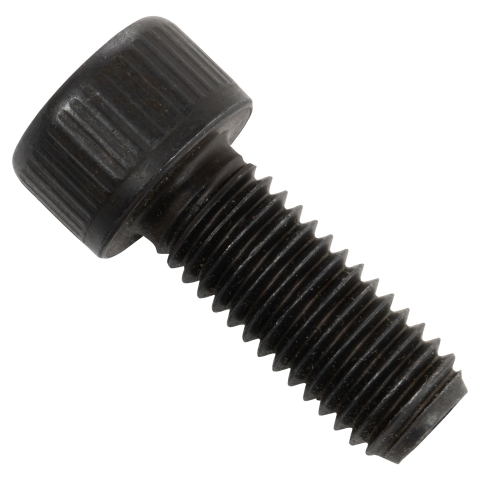

Cap Screw, M10x25, Socket Head
- Quill locking screw
- HiTorque large bench mill
- Fits SIEG SX3.5 bench mills
- Locks the Z-Axis fine feed and the spindle quill
M10x25 socket head cap screw for locking the quill on the HiTorque large bench mill. The large bench mill is fitted with a quill lock as well as a spindle lock. When engaging this locking mechanism the quill (spindle sleeve) is locked preventing the Z-Axis fine feed from raising or lowering.
See Used On tab for reference to machines using this part and the corresponding drawing number.
In your instruction manual, this part appears on the parts list as:
|A074||LittleMachineShop.com 6700 HiTorque Large Bench Mill|
LittleMachineShop.com 6750 HiTorque Large Bench Mill
Various SX3.5-US SIEG Large Bench Mill
