Drill Chuck, 1/64-5/16", Keyless with Integrated MT2 Arbor 6140 (Discontinued)

1/64" to 5/16" Keyless Drill Chuck
Integrated 2MT Shank (Tang)
+/- .0025" (0.0635 mm) TIR
More compact than traditional chuck/arbor combinations
No chuck slipping

Part Number: 6140 (Discontinued)
Weight: 1.14 lb

Price: $74.95

Share this page:
http://lmscnc.com/6140

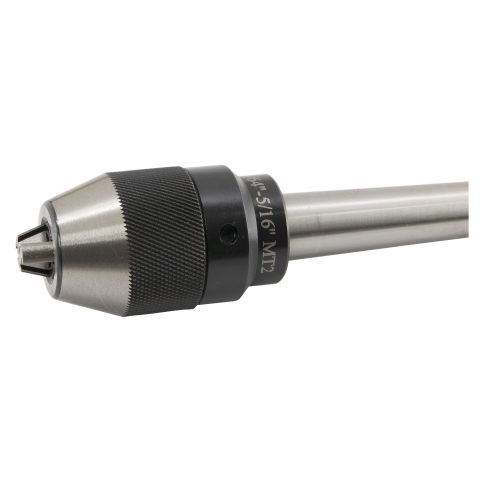

1/64" – 5/16" Precision keyless drill chuck with integral 2MT shank. The integrated design maximized rigidity and accuracy. Additionally, the chuck is more compact than a typical combined drill chuck and arbor combination, and there can be no chuck slipping on its arbor.

The chucks total indicated runout (TIR) is 0.0025" (0.0635 mm) or less.

Photos

"Drill Chuck

Compatibility

Compatibility

This product works with lathes with a 2 Morse taper tailstock taper including:

LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
Grizzly G0765 7x14 Mini Lathe
Prazi SD400 7x16 Lathe
MX-8x14 Preenex (and others) 8x14 Lathe
Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
Grizzly G0768 8x16 Benchtop Lathe
Emco Compact 8 8x17 Lathe
LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
SIEG C4 8.5x16 Bench Lathe
SIEG SC4 8.5x16 Bench Lathe
Travers Tools OT218410 OTMT 8x16 Bench Lathe
LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
BD-920N Jet 9x20 Lathe
Grizzly G4000 9x19 Bench Lathe
Harbor Freight 45861 Central Machinery 9x20 Bench Lathe
SIEG C6 10x21 Lathe
Busy Bee Tools CX705 Craftex 10x21 Lathe Mill Combo
Grizzly G0516 10x21 Lathe Mill Combo
Prazi SD500 10x20 Lathe
SIEG M6 10x21 Lathe Mill Combo
SIEG C8 11x24 Lathe
