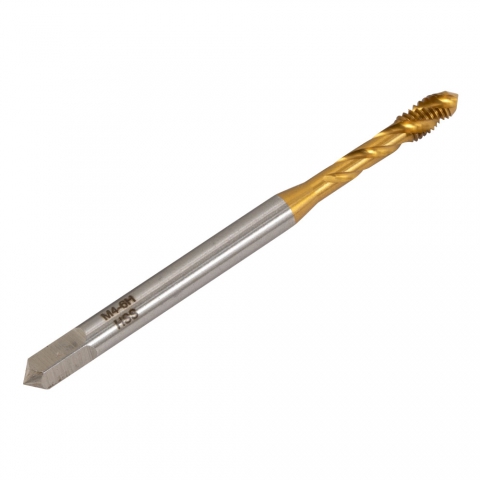

Tap, M4x0.7 Metric, Spiral Flute, TiN Coated

Metric spiral flute plug style tap
High speed steel (HSS) / TiN coated
Size M4x0.7
Ground threads
Complies with DIN 371 standards

Part Number: 6193
Weight: 0.02 lb

Price: $6.49

Share this page:
http://lmscnc.com/6193

Description
Chris' Tips

Description

High speed steel (HSS) spiral flute plug style taps with a titanium (TiN) coating.

These metric spiral flute taps have 35 degree spiral to assist in evacuating chips out of the tapped hole. Spiral flutes are recommended when bridging a gap inside the hole such as a keyway or cross-hole.

These metric taps comply with standard tap dimensions as defined in DIN 371. The thread tap limits (pitch diameter limits) is D4 (plus 0.0020).

Chris' Tips

Chris' Tips
Need help choosing the correct tap? Try this quick guide: Choosing the Correct Tap.
