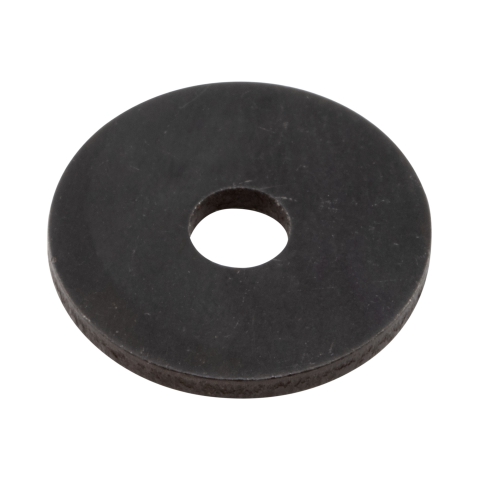

Washer, M4.5 x 17.7
- M4.5 flat washer - wide
- ID: 4.5 mm, OD: 1477 mm, Thickness: 1.48 mm
- Used on HiTorque Deluxe Bench Mill handwheels
- Fits SIEG SX2.7L handwheel assemblies
Part Number: 6268
Weight: 0.01 lb
Weight: 0.01 lb
Price: $0.95
Share this page:
http://lmscnc.com/6268
http://lmscnc.com/6268
Large diameter M4.5 flat washer used on the Deluxe HiTorque bench mill handwheel assembly and SIEG SX2.7L handwheels.
Inside diameter 4.5 mm, outside diameter 17.7 mm, thickness 1.48 mm.
See Used On tab for reference to machines using this part and the corresponding drawing number.
| Inside Diameter | 0.18" (4.5 mm) |
| Outside Diameter | 0.70" (17.7 mm) |
| Thickness | 0.06" (1.5 mm) |
In your instruction manual, this part appears on the parts list as:
| Item No | Models |
|---|---|
| C40 | LittleMachineShop.com 5550 HiTorque Bench Mill Various SX2.7L-US SIEG Bench Mill LittleMachineShop.com 6550 HiTorque Bench Mill LittleMachineShop.com 6570 HiTorque Bench Mill |
