Thread Checker, Dasqua

Thread Checker, Dasqua
  • More robust than plastic checkers

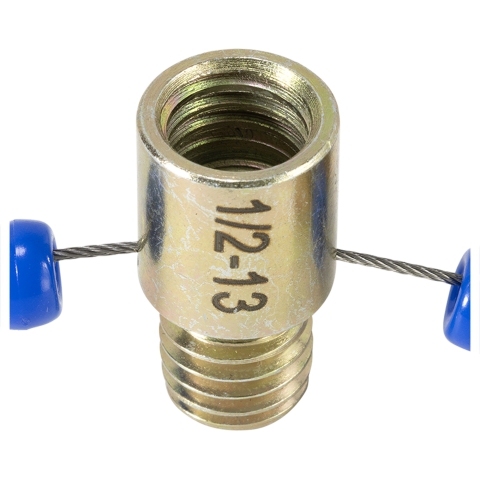

  • Each size has a nut and bolt checker on the same gauge with the sizes etched on each gage
  • The individual gauges rotate freely on the wire cable for fast thread verification
  • All on a convenient wire cable with a loop for hanging
Part Number: 6269
Weight: 0.88 lb

Price: $24.95

In stock
Quantity:

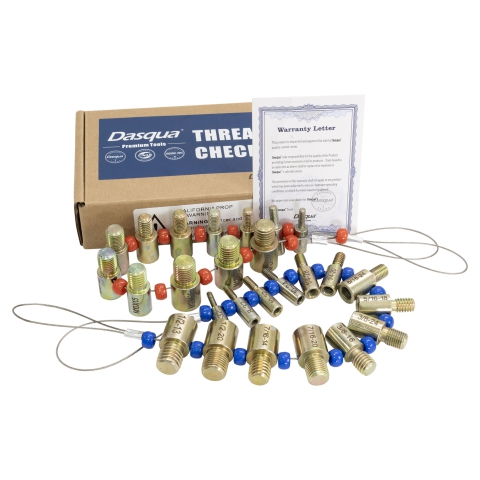

This thread checker set provides a quick and easy way to measure standard threads in both inches and metric.

They provide all the information you need for screws; diameter, length, threads per inch, hole size and even tap drill sizes. Each piece has a mail and female end to help you identify screws, nuts, or other threaded items.

The metal construction removes the issue of damaging the checker when testing threading which is sometimes an issue with plastic checkers.

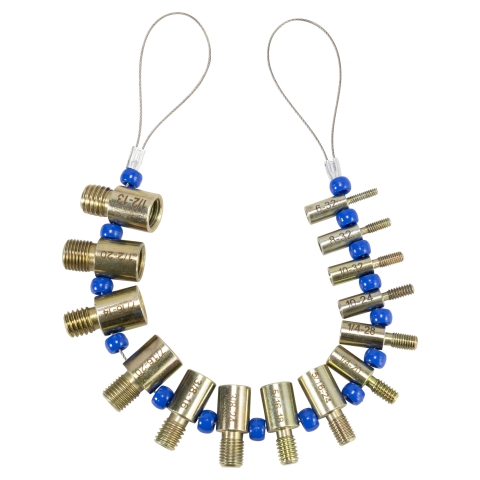

Inch Sizes Included: #6-32, #8-32, #10-24, #10-32, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20

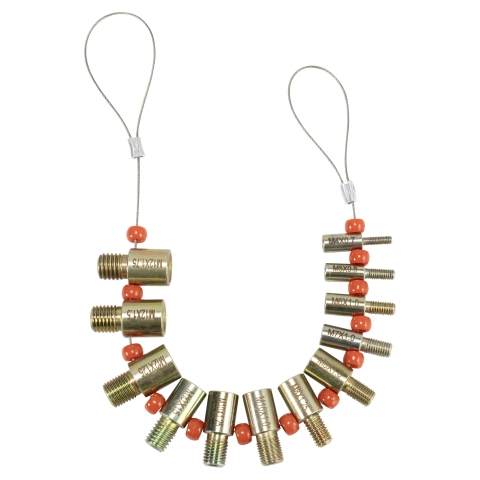

Metric Sizes Included: M4 x 0.7, M5 x 0.8, M6 x 1.0, M7 x 1.0, M8 x 1.0, M8 x 1.25, M10 x 1.0, M10 x 1.25, M10 x 1.5, M12 x 1.25, M12 x 1.5, M12 x 1.75

Note: Spacer beads may vary in color and style.
