Drill Press, Mini Bench Top, Variable Speed
- 1/4" Drill capacity
- 0 to 3600 and 0 to 5000 RPM continuously variable speed ranges
- Cast iron base and steel column
- DRO depth readout
Part Number: 6303
Weight: 30.0 lb
Weight: 30.0 lb
Price: $299.95
Share this page:
http://lmscnc.com/6303
http://lmscnc.com/6303
This small precision drill press is perfect for small work. Cast iron and steel construction provide the rigidity for accurate work.
150 watt motor and PWM variable speed controller provide plenty of power for small drilling projects.
The cast iron base is 6.5" wide and 10.8" deep.
The depth DRO can be zeroed at any point for accurate hole depths.
| Drilling Capacity | 0.24" (6.0 mm) |
| Quill Travel | 1.6" (40 mm) |
| Swing | 13.0" (330 mm) |
| Column Diameter | 1.2" (30 mm) |
| Maximum Spindle to Base | 7.9" (200 mm) |
| Drill Chuck | 0.02" - 0.24" (0.5 mm - 6.0 mm) |
| Spindle Taper | JT1 |
| Motor | 0.20 hp (150 Watts) |
| Spindle Speeds | 2 Speed ranges 0 - 3600 RPM |
| Power Requirements | 120 V 60 Hz 2.00 Amps |
| Machine Weight | 31 lbs (14 kg) |
| Base Dimensions (W x D) | 6.5" x 10.8" (165 mm x 275 mm) |
| Overall Dimensions (W x D x H) | 7.5" x 11.0" x 17.3" (190 mm x 280 mm x 440 mm) |
| Crated Weight | 42 lbs (19 kg) |
| Carton Dimensions | 20.5" x 15.7" x 9.8" (520 mm x 400 mm x 250 mm) |
 |

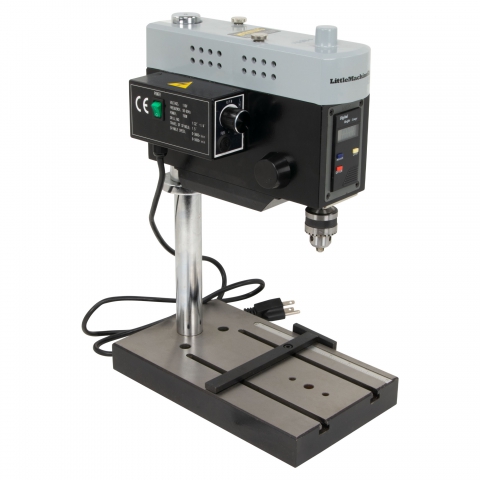

Alternate View |
 |

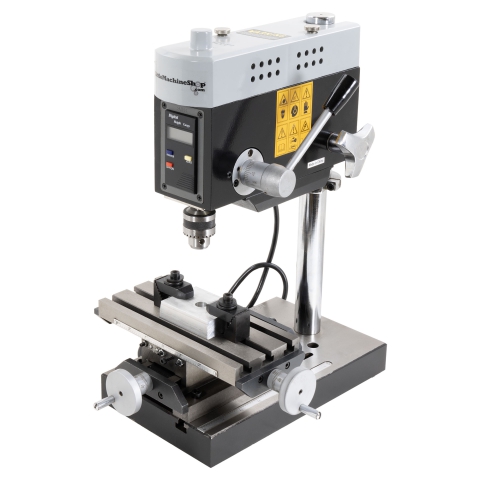

Shown with X-Y Table Assembly and 8mm clamping kit (not included) |
 |

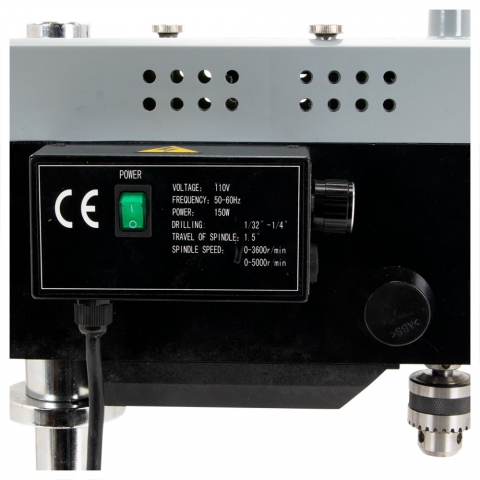

Side View, Power Switch |
 |

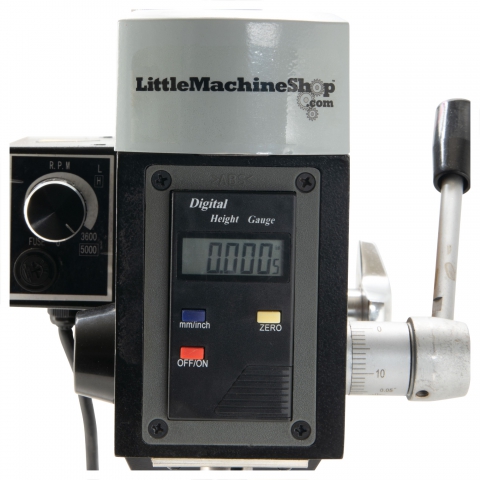

Ditigal Height Gauge and Speed Dial |
 |

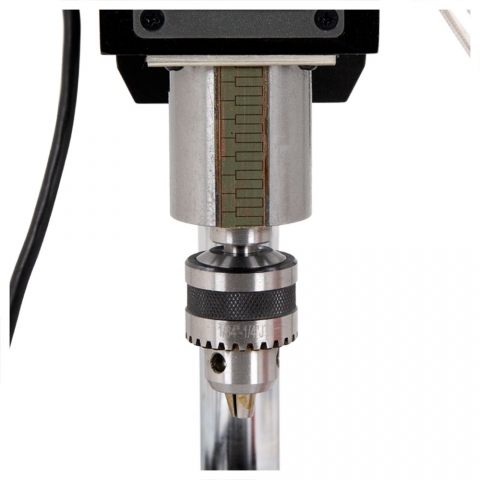

Quill and Chuck |
 |

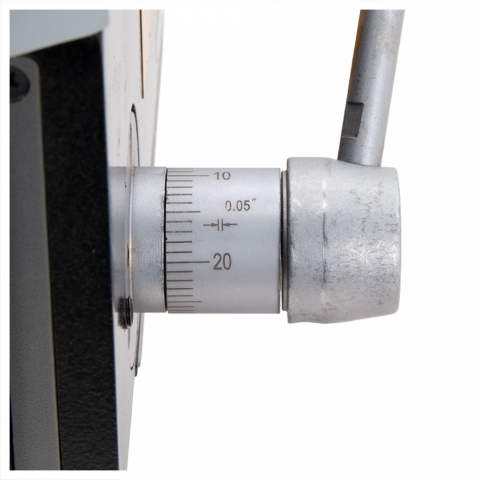

Z-Axis Dial |
 |

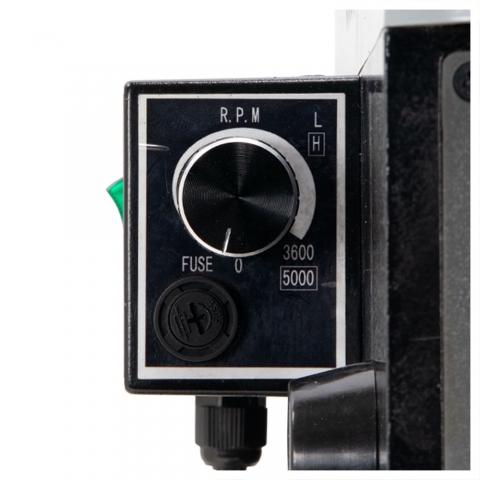

Speed Dial |
 |

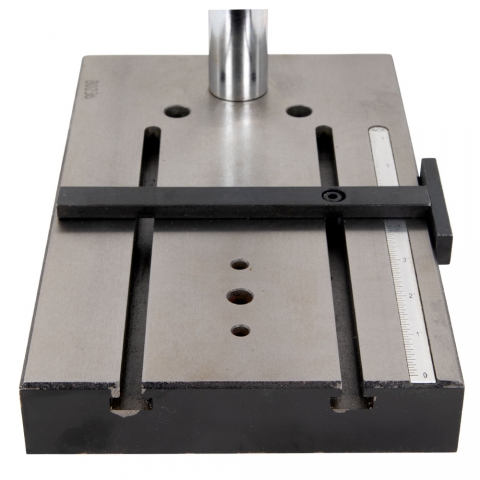

Base |
 |

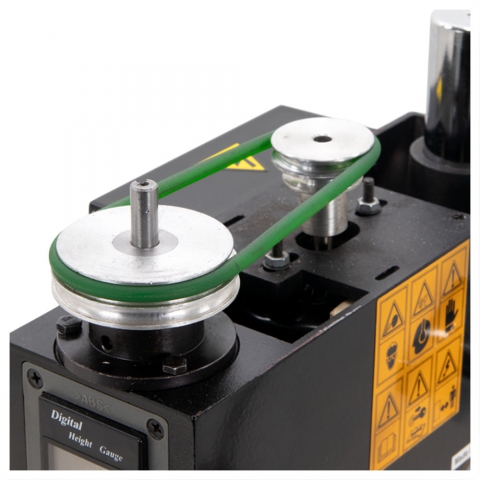

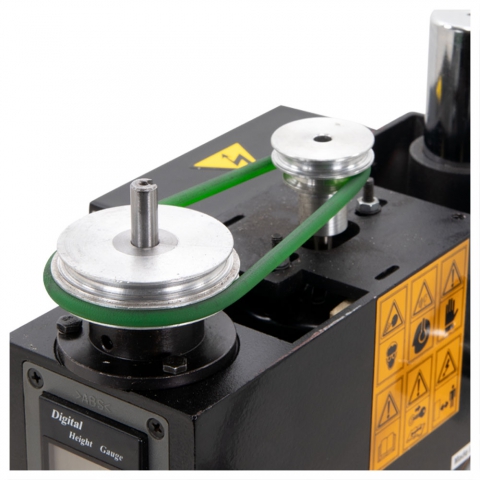

Belt in High RPM Position |
 |
Belt in Low RPM Position |
 |

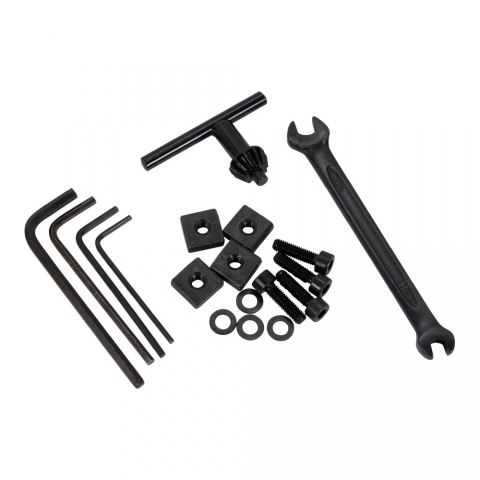

Included Tools |
