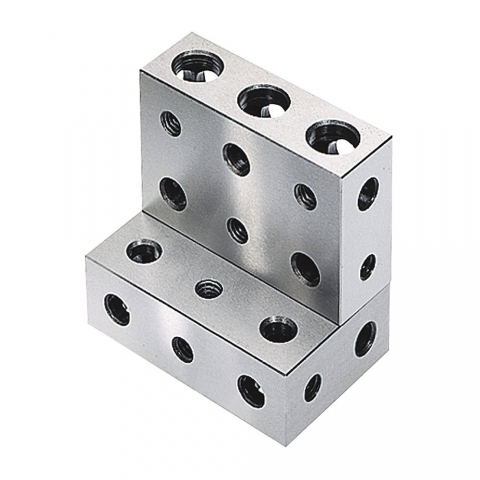

Blocks, 1-2-3, Universal 11 Hole Set
- Five threaded holes - 5/16"-18
- Six through holes for clamping
- Hardened and precision ground steel
- Pairs are matched within 0.0002"
- Dimensions: 2" width x 1" height x 3" length
Part Number: 6323
Weight: 2.04 lb
Weight: 2.04 lb
Price: $67.95
This product is currently backordered.
Estimated availability:
Unknown
What is "estimated availability"?
Click this button if you want to receive an email notification when this product becomes available.
Share this page:
https://littlemachineshop.com/6323
https://littlemachineshop.com/6323
These 1-2-3 blocks are ground and case hardened on all sides to 55-62 Rc. The blocks are 1" x 2" x 3".
They are parallel within 0.0002" and have a .0001" to .0003" over allowance for nominal lapping.
Each set includes two matched blocks. These blocks can be bolted together using 5/16"-18 socket head cap screws (not included).
The blocks have 11 holes, six drilled through with deep recesses for clamping, and five tapped holes which are threaded 5/16"-18 NC.
