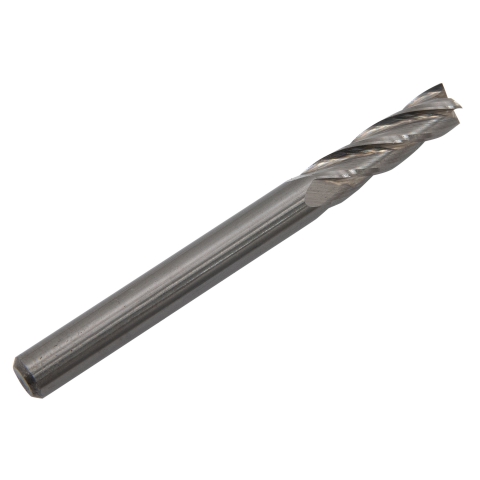

End Mill, 3/16" 4 Flute, Carbide

Single ended, 4 flute, center cut geometry
Designed for increased chip removal rate
Used for finishing operation
Ideal for milling, slotting, profiling and trace milling
Manufactured from premium submicron grain carbide

Part Number: 6333
Weight: 0.03 lb

Price: $13.95

Share this page:
http://lmscnc.com/6333

Description
Specifications

Single end 4 flute center cut end mill made from premium submicron grain carbide. Used for finishing operations. The 4 flute design allows for a high feed rate as less material is removed per flute. Ideal for milling, slotting, profiling and trace milling.

If greater swarf removal is desired, consider one of our 2 flute end mills.

Specifications

Specifications
Diameter	3/16"
Flute Length (Loc)	5/8"
Overall Length	2"
Cutting Diameter Tolerance	+.000 / -.002
Shank Diameter Tolerance	-.0001 / -.0004
Radius Tolerance	+.001 / -.001
Run-Out Tolerance	.0005 maximum shank to cutting diameter
