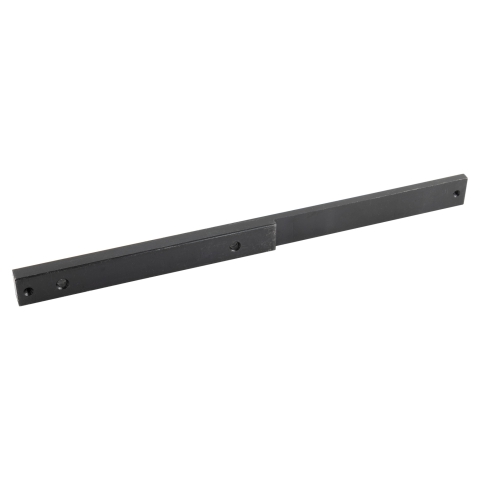

Y- Axis DRO Magnetic Scale Bracket
- Magnetic scale mounting bracket - Y-axis
- Used on X2 mini mills
- 220mm x 16mm x 8&5mm, holes 210mm on center
Part Number: 6453
Weight: 0.40 lb
Weight: 0.40 lb
Price: $9.95
Share this page:
http://lmscnc.com/6453
http://lmscnc.com/6453
Mounting bracket for the Y-axis DRO magnetic scale on X2 and other mini mills. Mounts on side of table and step-up on bracket matches table side.
See Used On tab for reference to machines using this part and the corresponding drawing number.
In your instruction manual, this part appears on the parts list as:
| Item No | Models |
|---|---|
| 209 | LittleMachineShop.com 6450 HiTorque Mini Mill |
| 212 | LittleMachineShop.com 4190 HiTorque Mini Mill |
