Bracket, Traditional DRO, Straight for Mills

Traditional DRO display mounting arm for mills
Overall length 360 mm (14.17")
Arm L/W/H is 320mm x 20mm x 40mm (12.6" x 0.79" x 1.6")
Baseplate is 74 mm x 50 mm (2.91" x 1.97")
Comes with mounting hardware

Part Number: 6468
Weight: 1.20 lb

Price: $19.95

Share this page:
http://lmscnc.com/6468

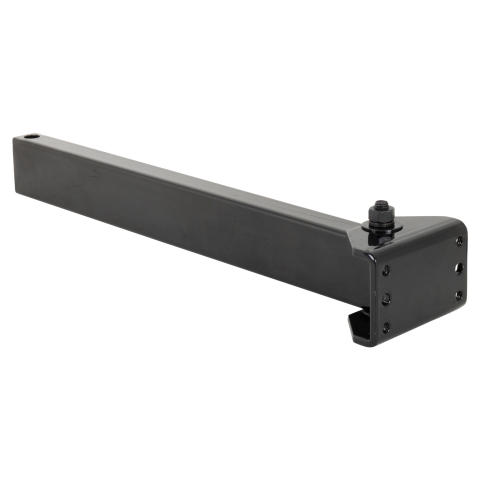

Mill mounting arm for the hard wired (traditional) DRO display. This mounting arm is designed to be mounted on the column of a mill. The arm can be rotated to the desired angle and tightened into place.

The arm is 320mm (12.6") from bracket to end, 20mm (0.79") wide, and 40mm (1.6") tall.

The end of the arm has a 10mm hole which is designed to accommodate the mounting pin on the back of the hard-wired DRO display.

The base bracket has six 6mm holes for mounting hardware. The baseplate is 74mm x 50mm (2.91" x 1.97").

The bracket is painted with a high-gloss heavy duty black paint.

Bracket comes with mounting hardware.

Photos

"Bracket

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
	LittleMachineShop.com 6770 HiTorque Large Bench Mill

Click your model to see the complete parts list.
