Base, Compound Rest, 9x20 Bench Lathe
- Baseplate for compound rest assembly
- Fits HiTorque 9x20 and SIEG SC50 bench lathes
Part Number: 6569
Weight: 1.00 lb
Weight: 1.00 lb
Price: $11.95
Share this page:
http://lmscnc.com/6569
http://lmscnc.com/6569

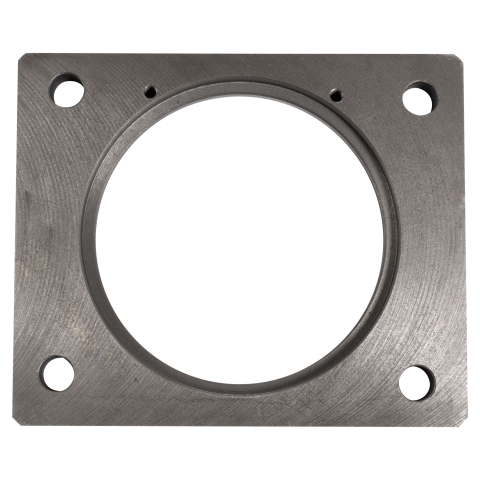

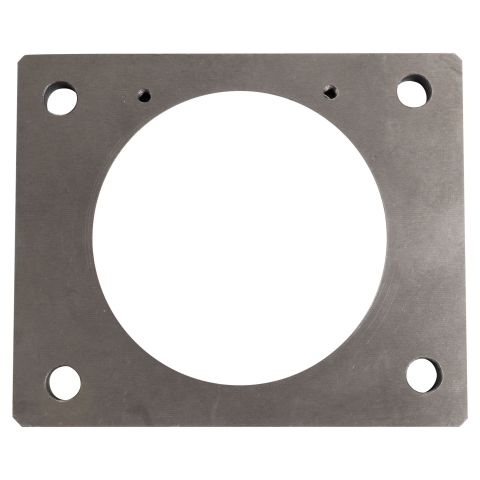

Baseplate for compound rest assembly for the HiTorque 9x20 and SIEG SC50 bench lathes.
Supports the compound rest swivel disk.
See Used On tab for reference to machines using this part and the corresponding drawing number.
In your instruction manual, this part appears on the parts list as:
| Item No | Models |
|---|---|
| 2-01 | LittleMachineShop.com 7600 HiTorque Bench Lathe - 9x20 LittleMachineShop.com 7650 HiTorque Bench Lathe - 9x20 |
