Handwheel, Compound Rest, 9x20 Bench Lathe

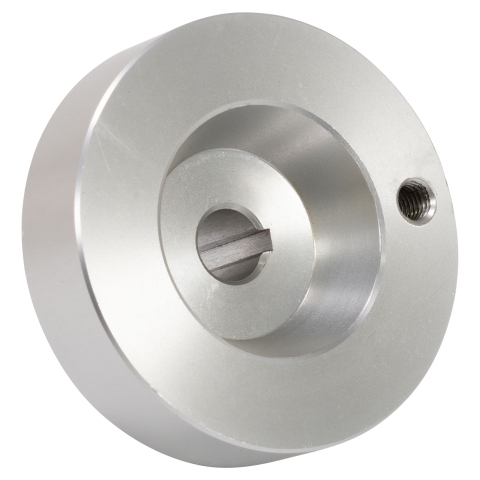

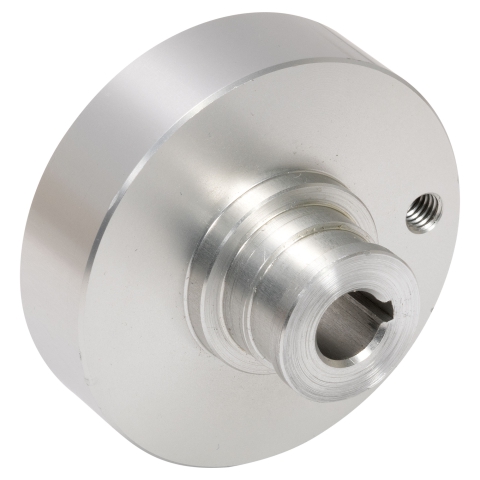

Compound rest handwheel for the HiTorque 9x20 bench lathes and SIEG SC50 bench lathes without DRO. The hand wheel is 60 mm in diameter. It mounts on a 10 mm shaft, with a 4 mm key. The length through the bore is 23 mm. There is an M6 threaded hole for a handle.

The handwheel is anodized aluminum.

See Used On tab for reference to machines using this part and the corresponding drawing number.
