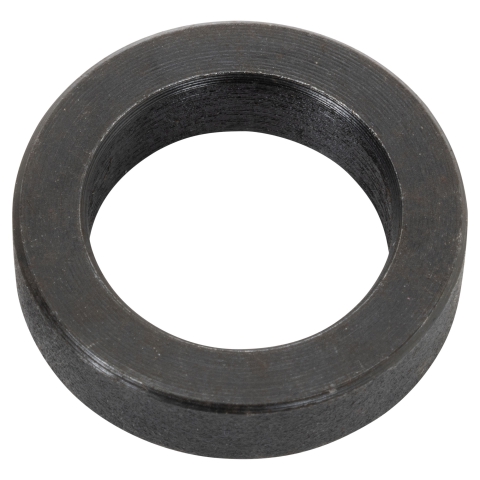

Washer / Spacer 2, Belt Tensioner, 9x20 Bench Lathe

- Washer/spacer two for 9x20 bench lathe
- Outside diameter 25mm
- Inside diameter 16mm
- Thickness 6mm
Washer / Spacer two, used in the 9x20 bench lathe belt tensioner assembly.
Outside diameter 25mm
Inside diameter 16mm
Thickness 6mm.
See Used On tab for reference to machines using this part and the corresponding drawing number.
In your instruction manual, this part appears on the parts list as:
Item No | Models |
---|---|
8-14 | LittleMachineShop.com 7600 HiTorque Bench Lathe - 9x20 LittleMachineShop.com 7650 HiTorque Bench Lathe - 9x20 |
