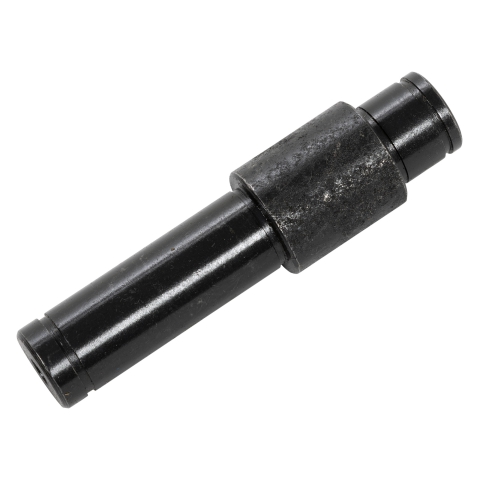

Bearing Shaft, Belt Tensioner, 9x20 Bench Lathe

- Bearing Shaft
- Belt tensioner assembly
- Fits 9x20 bench lathes
This bearing shaft mounts to the belt tensioner plate, feeds through the belt tensioner and the two bearings that allow the belt tensioner to rotate freely. It is secured by M12 external retaining rings on both sides.
See Used On tab for reference to machines using this part and the corresponding drawing number.
In your instruction manual, this part appears on the parts list as:
Item No | Models |
---|---|
8-19 | LittleMachineShop.com 7600 HiTorque Bench Lathe - 9x20 LittleMachineShop.com 7650 HiTorque Bench Lathe - 9x20 |
