Dial Indicator and Magnetic Base

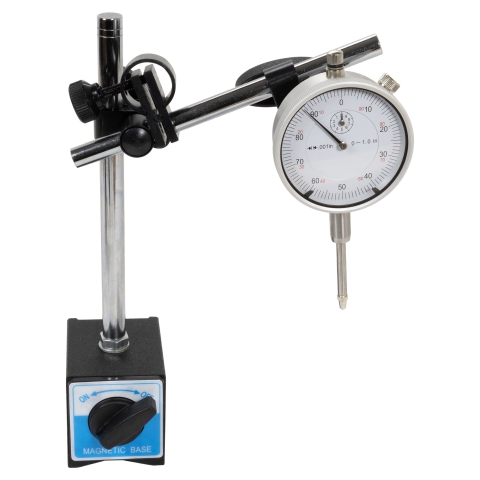

0-1" Dial indicator
Magnetic base with fine adjustment
Permanent magnet has an 80 kg (176 lb) holding force
On/off switch makes it easy to position
V-groove base allows you to mount it on cylindrical surfaces

Part Number: 6786
Weight: 3.70 lb

Price: $29.95

Share this page:
https://littlemachineshop.com/6786

This 1" stroke dial indicator features large, easy to read numbers and crisp graduations. Each revolution is 0.100", indicated by the revolution counter. The resolution is 0.001". There is a mounting lug on the back of the case.

The magnetic base indicator holder has a fine adjustment feature. The on/off switch makes it easy to position. The v-groove base allows you to mount it on cylindrical surfaces. The permanent magnet has an 80 kg (176 lb) holding force.

Chris' Tips

Chris' Tips
Here are some instructions for using a dial indicator and magnetic base.

AGD Groups define the size of the indicator.

AGD Group	Face Diameter
0	1.00 - 1.38"	25 - 35 mm
1	1.38 - 2.00"	35 - 50 mm
2	2.00 - 2.38"	50 - 60 mm
3	2.38 - 3.00"	60 - 75 mm
4	3.00 - 3.75"	75 - 95 mm

Inch indicators have a 0.375" diameter shank with a #4-48 thread for tips. Metric indicators have an 8 mm diameter shank with an M2.5 thread.

Contents

This product contains the following items:
	Description	Qty
	Dial Indicator, 1" x 0.001", P/N 1236	1
	Magnetic Base Indicator Holder, Two Rod Style, P/N 6787	1
