Products > Tooling > Clamping Kits > T-Slot Nuts Individual Sizes

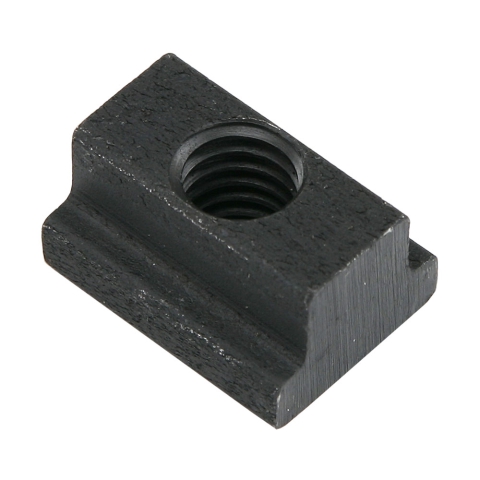

T-Slot Nut, 7/16"


T-Slot Nut, 7/16"
Part Number: 1269
Weight: 0.05 lb

Price: $1.49

In stock
Quantity:


Share this page:
http://lmscnc.com/1269

Related Products

T-Slot Nuts
T-Slot Nuts

Adjustable Clamps
Adjustable Clamps

Clamping Bars
Clamping Bars

  • Fit 7/16" T-Slot
  • Threaded 3/8-16
  • Black oxide finish
  • Heat treated 1040 steel
  • Case hardened

Description

These T-slot nuts fit a (12 mm) 7/16" T-slot and are threaded 3/8-16.

The nuts are the correct size for the Mini Mill.

The 12mm nuts are heat treated and have a black oxide finish.

The stated dimension of the T-slot nut is the width at the top of the T-slot.

Chris' Tips

Chris Chris' Tips
Following are the dimensions of the T-slot nuts that we sell separately or as part of a set.

Part Number

Slot

B

Thread A

C

D

E

Length

3097

1/4"

0.24"

M5

0.23"

0.10"

0.38"

0.38"

5592, 5491*

3/8"

0.37"

5/16" - 18

0.50"

0.19"

0.63"

0.88"

1269, 1144*, 5975*

7/16"

0.43"

3/8" - 16

0.50"

0.28"

0.69"

0.88"

2021, 1268*

1/2"

0.49"

3/8" - 16

0.50"

0.28"

0.88"

0.88"

5971, 3667*

5/8"

0.63"

1/2" - 13

0.63"

0.34"

1.00"

1.13"

2059, 1943*

6 mm

5.7 mm

M5

8.2 mm

4 mm

10 mm

12 mm

2058, 1813*, 1972*, 2039*

8 mm

7.7 mm

M6

10 mm

5 mm

13 mm

13 mm

2991

10 mm

9.7 mm

M8

12 mm

6 mm

15 mm

15 mm

1418

12 mm

11.7 mm

M8

12 mm

7 mm

18 mm

18 mm

*Indicates t-slot nuts included as part of a clamping kit.


Compatibility

Compatibility

This product works with mills with a 0.43 to 0.495 inch T-slot width including:

  •   Bolton XJ9510 Mill/Drill
  •   Grizzly G8689 Mini Milling Machine
  •   Hare & Forbes HM-10 Mill/Drill
  •   Princess Auto 8507667 Powerfist Mini Mill
  •   SIEG X2-MT3 Mini Mill
  •   Micro-Mark 82573 MicroLux Milling Machine
  •   BusyBee CX605 Craftex Mini Mill
  •   Cummins (Tools Now) 7877 Mini Mill
  •   Harbor Freight 44991 Central Machinery Mill/Drill
  •   Homier 03947 Speedway Mini Mill
  •   Northern Tool 49657 KLUTCH Mini Mill
  •   SIEG X2-R8 Mini Mill
  •   Travers Tools OT2213 OTMT Mini Mill
  •   WEN 33013 WEN Mini Mill
  •   SIEG X2P Mini Mill
  •   LittleMachineShop.com X2D SIEG Mini Mill
  •   LittleMachineShop.com 4962 SIEG Mini Mill
  •   SIEG X2L Mini Mill
  •   SIEG X2LF Mini Mill
  •   BusyBee CX612 Craftex Mini Mill
  •   SIEG SX2 Mini Mill
  •   Micro-Mark 84630 MicroLux Mini Mill
  •   LittleMachineShop.com 3900 HiTorque Mini Mill
  •   SIEG SX2L Mini Mill
  •   LittleMachineShop.com 3990 HiTorque Mini Mill
  •   LittleMachineShop.com 4190 HiTorque Mini Mill
  •   LittleMachineShop.com 3960 HiTorque Mini Mill
  •   SIEG SX2LF Mini Mill
  •   Grizzly G0781 Mill/Drill
  •   SIEG X2.7 Bench Mill
  •   LittleMachineShop.com 5500 HiTorque Bench Mill
  •   SIEG SX2.7 Bench Mill
  •   LittleMachineShop.com 5550 HiTorque Bench Mill
  •   Grizzly G0463 Mill/Drill
  •   Harbor Freight 93885 Central Machinery Mill/Drill
  •   SIEG X3 Small Mill
  •   Woodstock International M1110 Shop Fox Small Mill
  •   BusyBee CX611 Craftex Small Mill
  •   Grizzly G0619 Mill/Drill
  •   SIEG SX3 Small Mill
  •   Travers Tools OT2225SX3 OTMT Small Mill
  •   Grizzly G0759 Mill/Drill With Stand
  •   Grizzly G0704 Mill/Drill With Stand
  •   Grizzly G0516 Lathe Mill Combo
  •   SIEG M6 Multi-purpose Machine

Used On

In your instruction manual, this part appears on the parts list as:

Item No Models
  BusyBee CX611 Craftex Small Mill
Grizzly G0619 Small Mill
Various SX3 SIEG Small Mill
Travers Tools OT2225SX3 OTMT Small Mill
Click your model to see the complete parts list.
