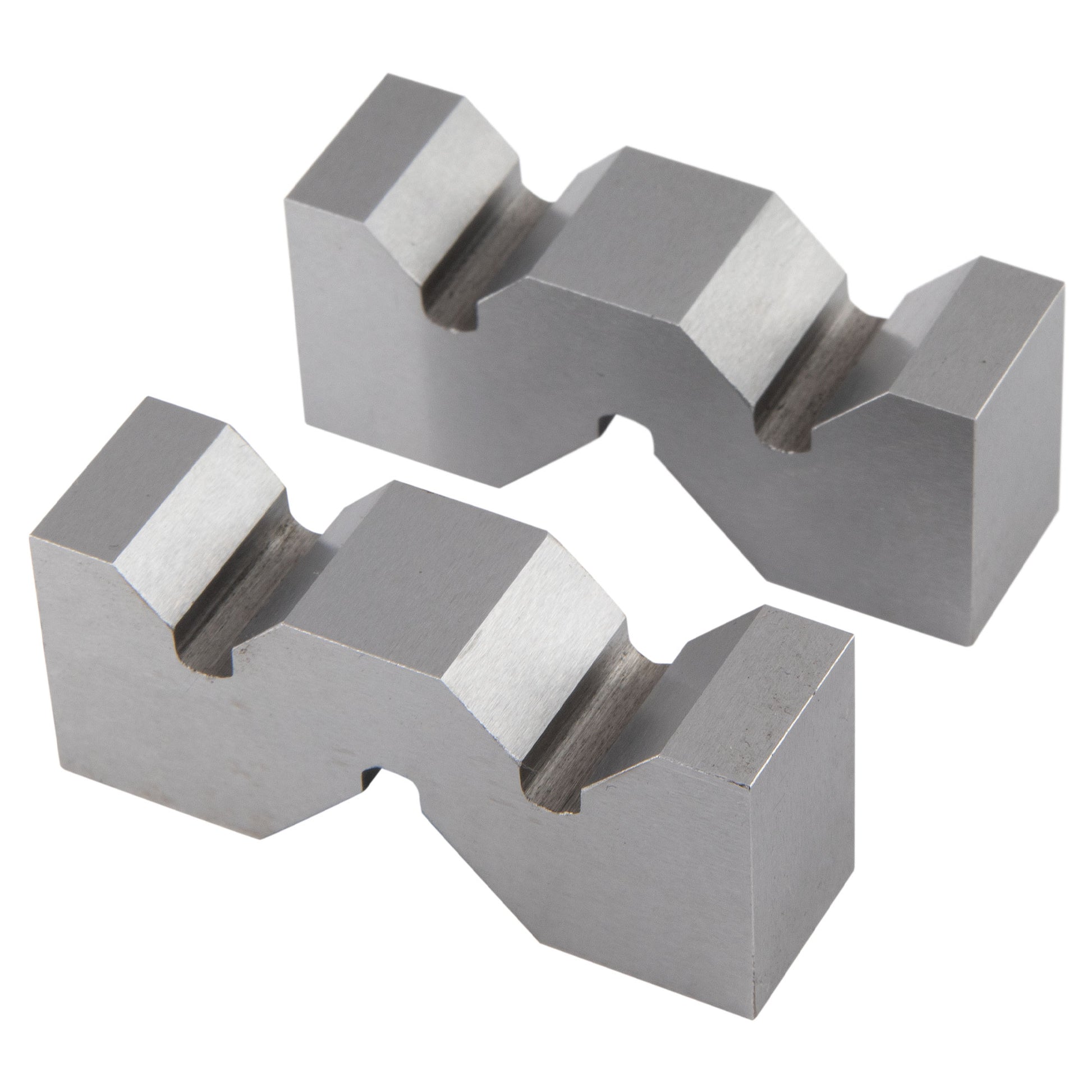

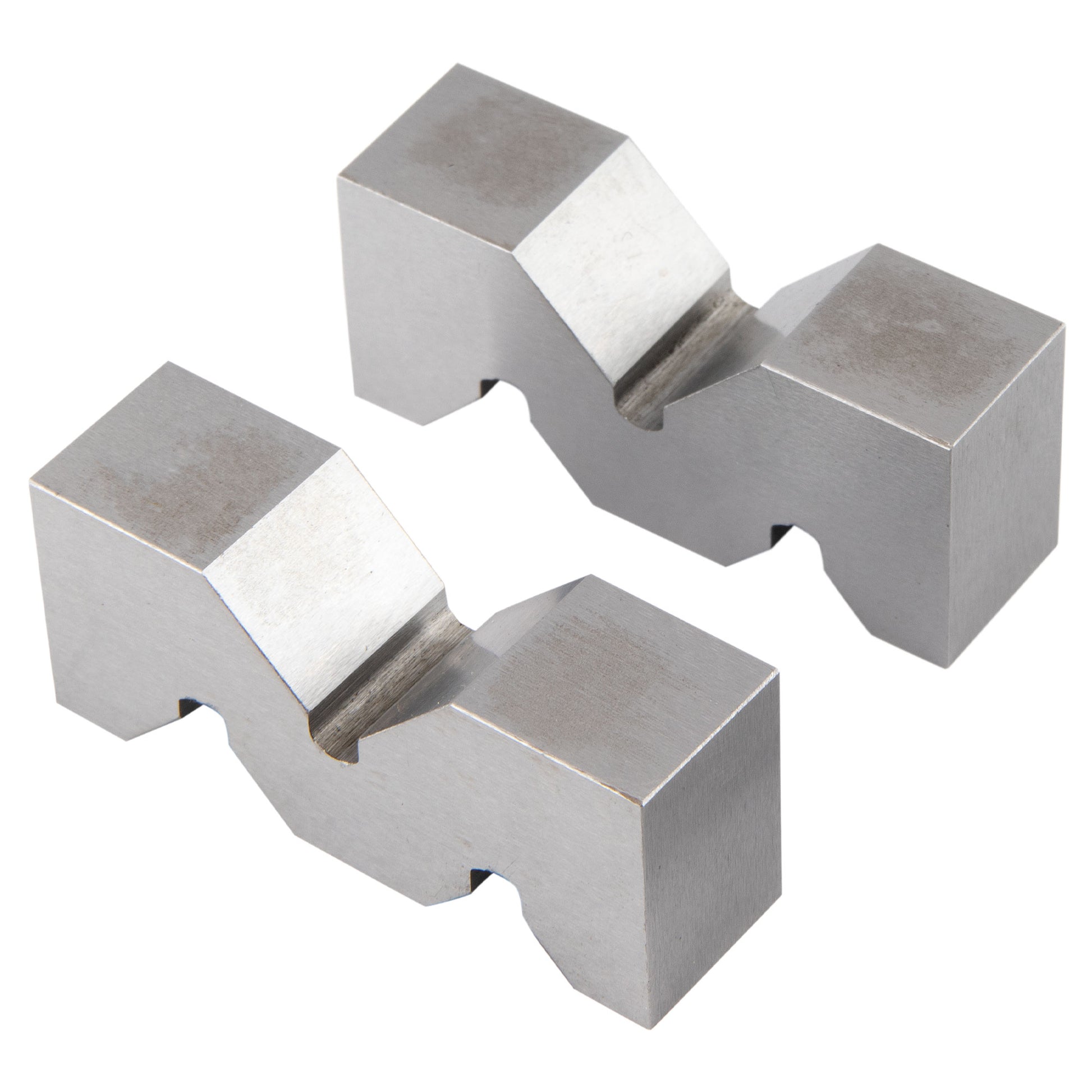

V-Blocks, Triple, 50 mm x 14 mm x 20 mm

V-Blocks, Triple, 50 mm x 14 mm x 20 mm

$22.95
$22.95
Sale Sold out
Shipping calculated at checkout.

Low stock

6289 (B04 - 08)

Key Features

  • All sides hardened, precision ground, parallel and square
  • Suitable for stock 5~33 mm diameter.
  • Supplied in matched pairs that are aligned to one another
  • Angles are 90 degrees
  • 50 mm (L) x 14 mm (W) x 20 mm (H)

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

Triple V-block to hold round stock of different diameters from 5 mm to 33 mm.
V grooves are ground, central, parallel and square.
50 mm (L) x 14 mm (W) x 20 mm (H).
Suitable for stock 5~33 mm diameter.
The width of the three V's at the top are approximately 12 mm, 15 mm and 20 mm.

Specifications

Length: 1.969" (50 mm)

Width: 0.551" (14 mm)

Height: 0.787" (20 mm)

V-1 Width At Top: 0.472" (12 mm)

V-2 Width At Top: 0.591" (15 mm)

V-3 Width At Top: 0.787" (20 mm)
