Z-Axis Tool Height Setter, Digital
Z-Axis Tool Height Setter, Digital
SKU:5447
Low stock
Couldn't load pickup availability
Key Features
Key Features

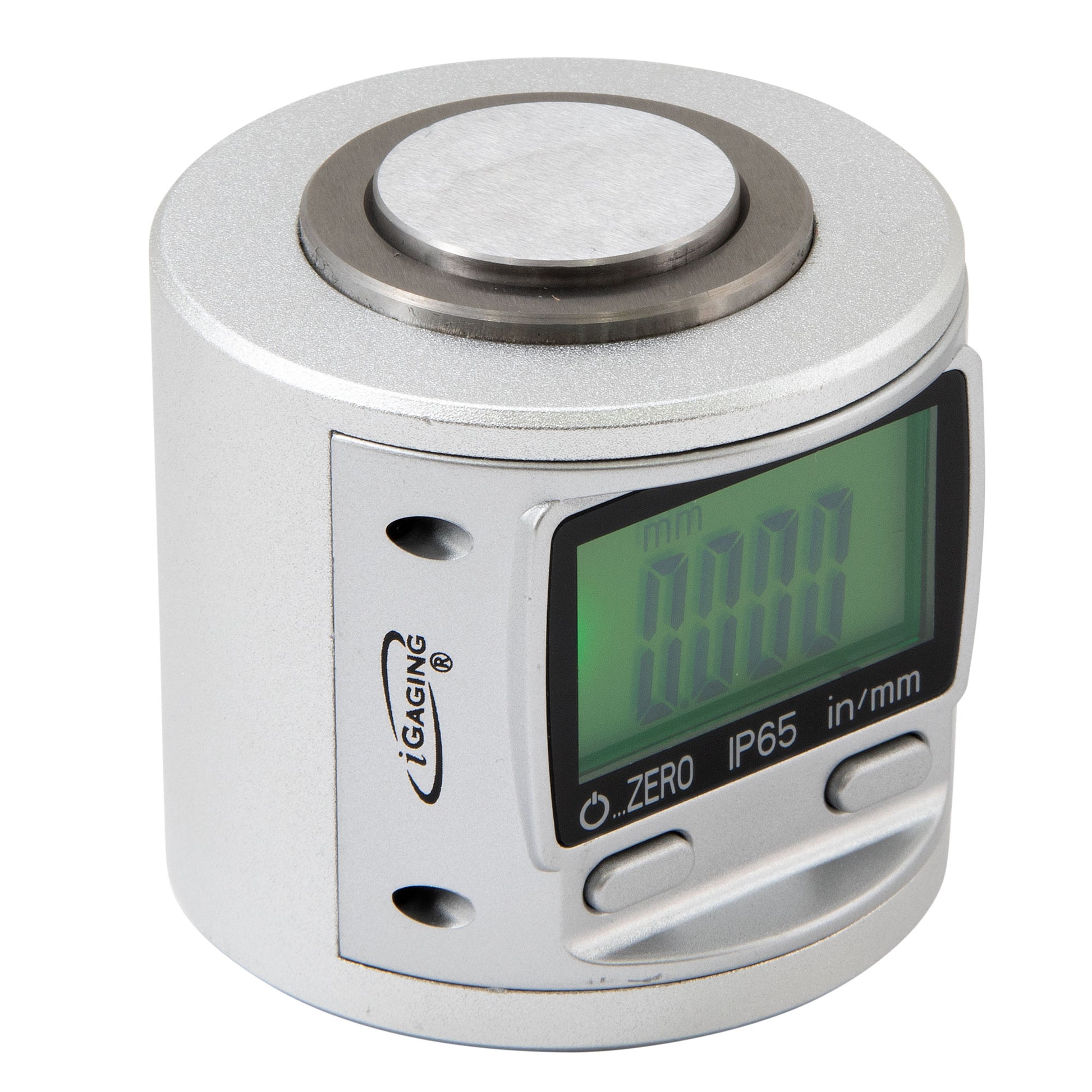

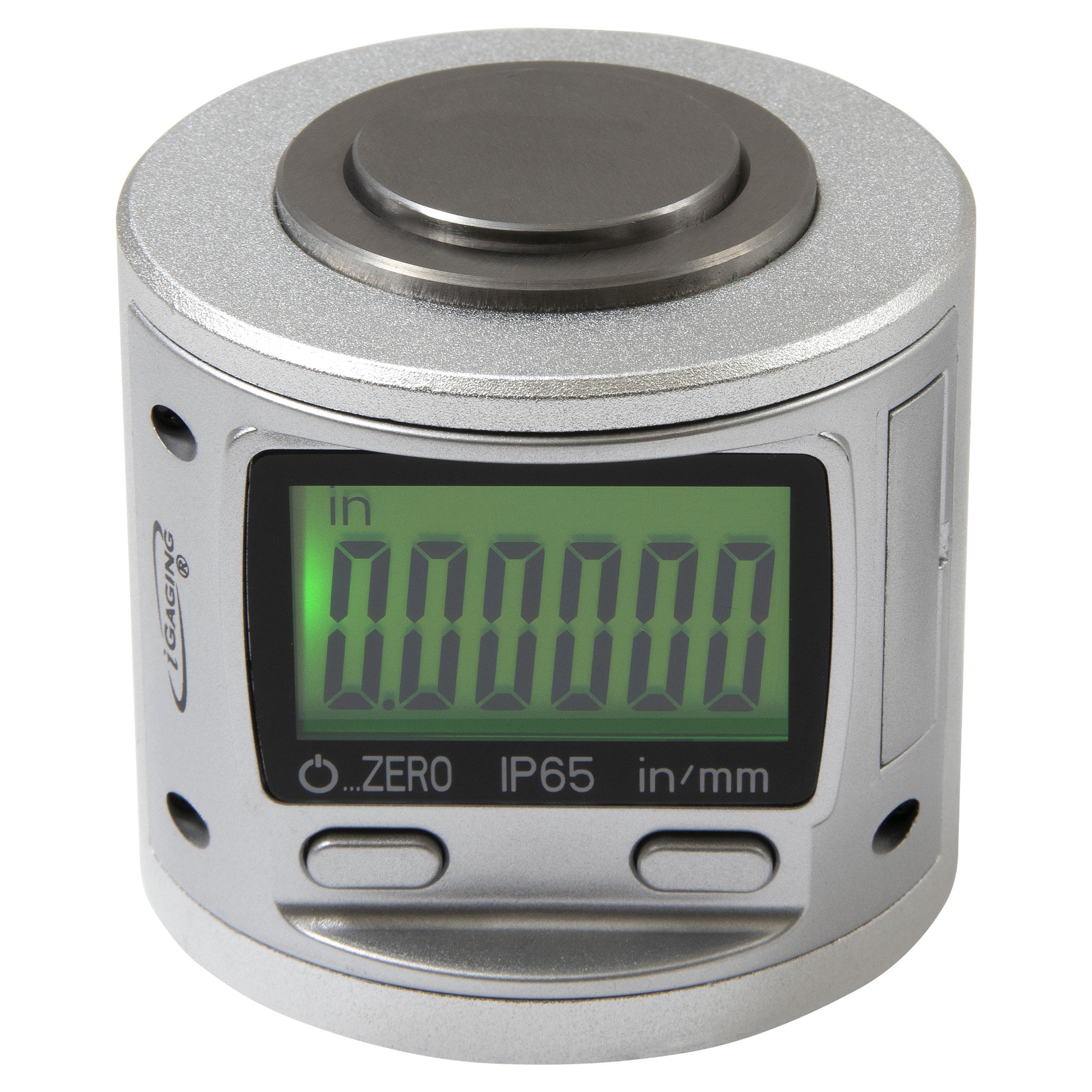

- Easy to set "0" point with Large LCD display in inch/mm
- Positioning accuracy is 0.0001" / 0.003 mm
- Resolution: 0.00005"/0.001mm
- IP66 Protective Rating
- Steel contact surface with 0.002" flatness
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

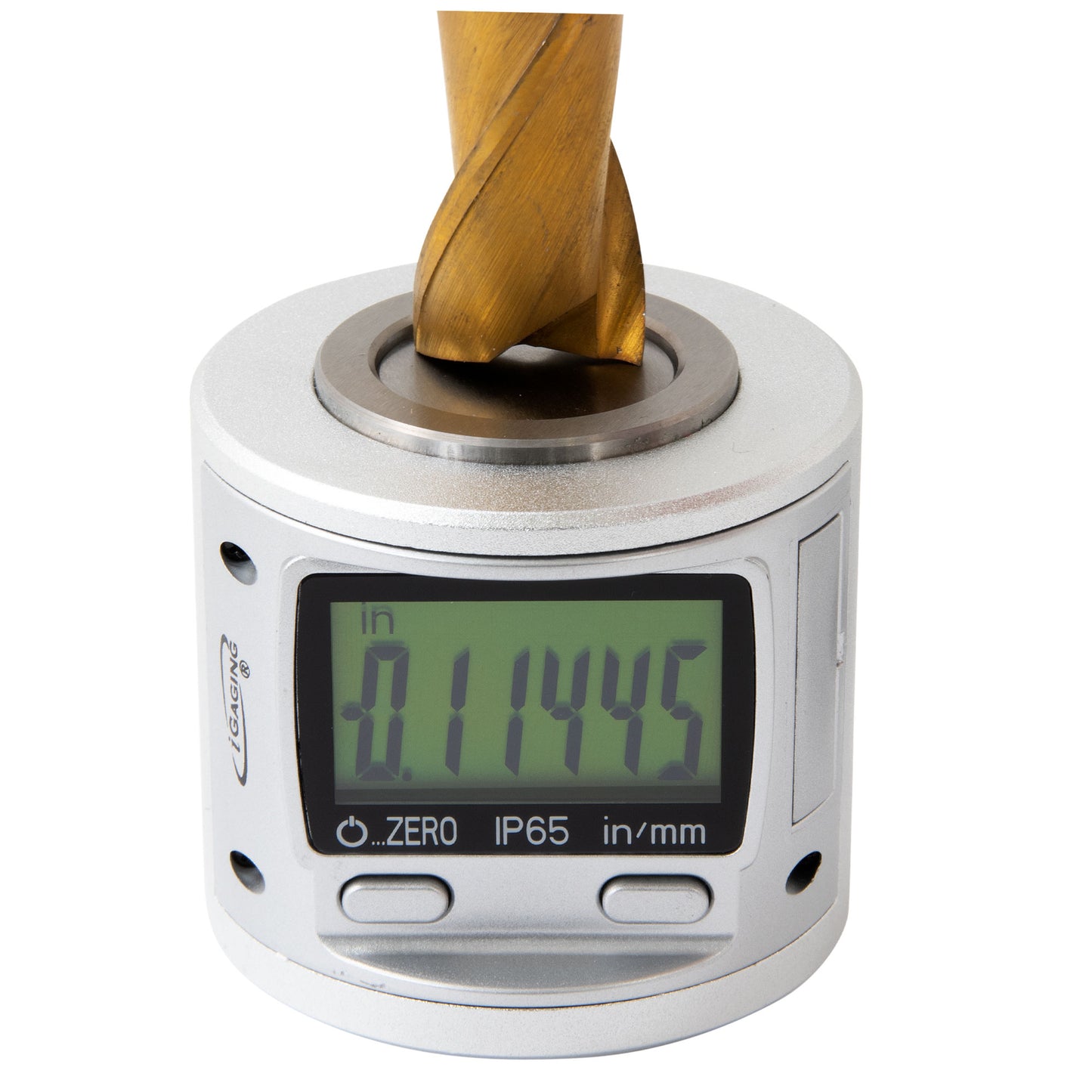

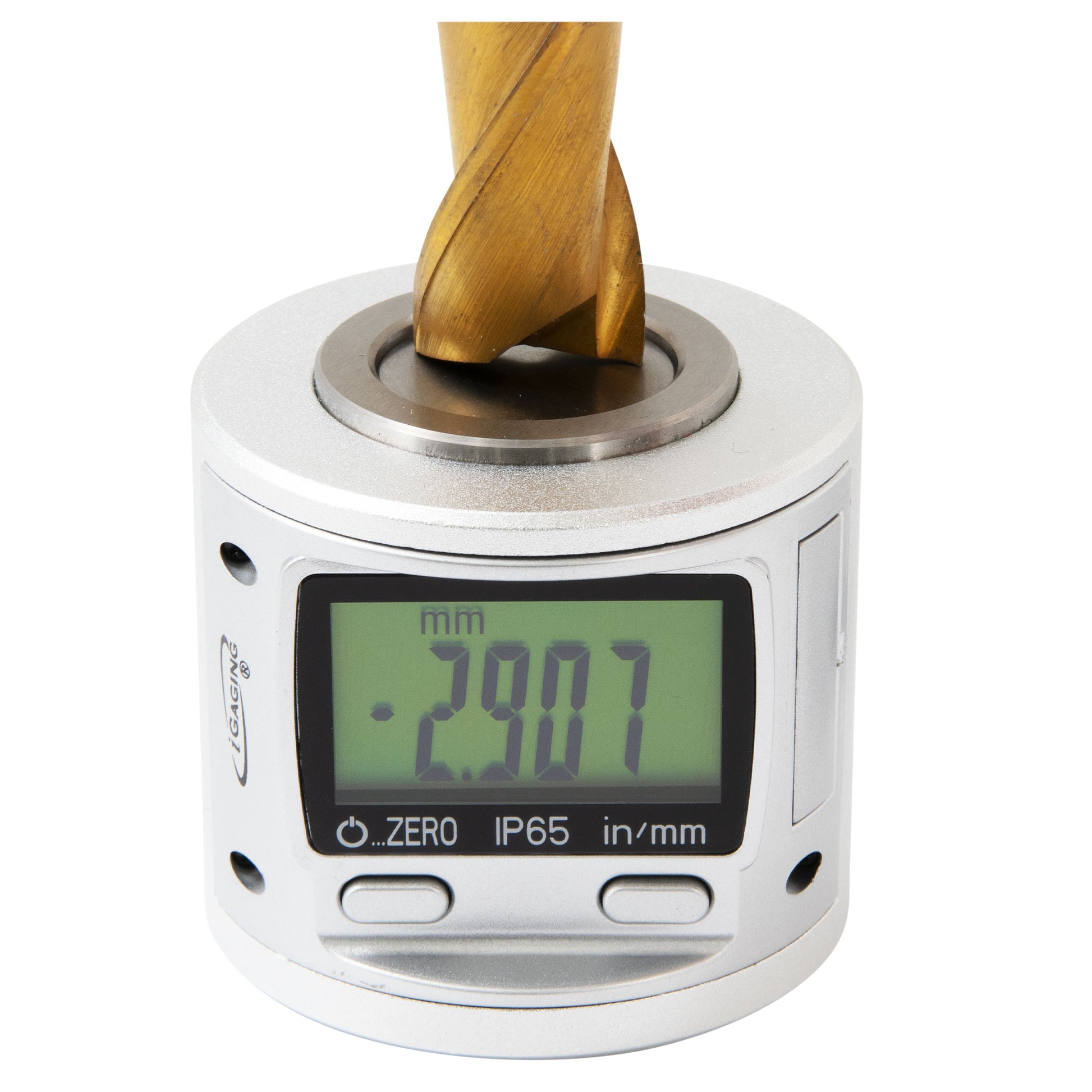

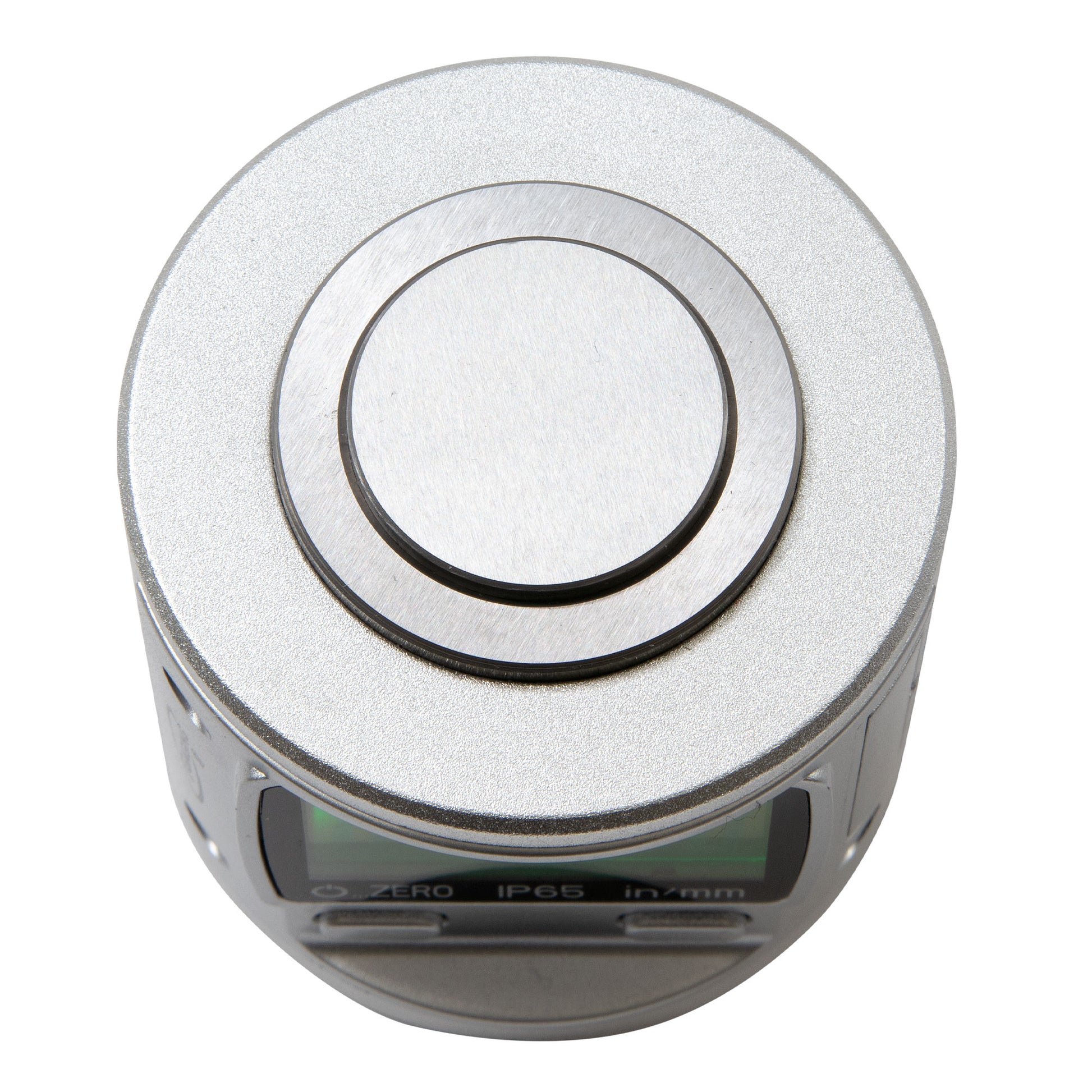

Accurately and easily establish tool length offsets for CNC milling with this digital Z-Axis height setter. The large LCD display is easy to read (mm or inch) and the large contact face makes contact with multiple points of the cutter.

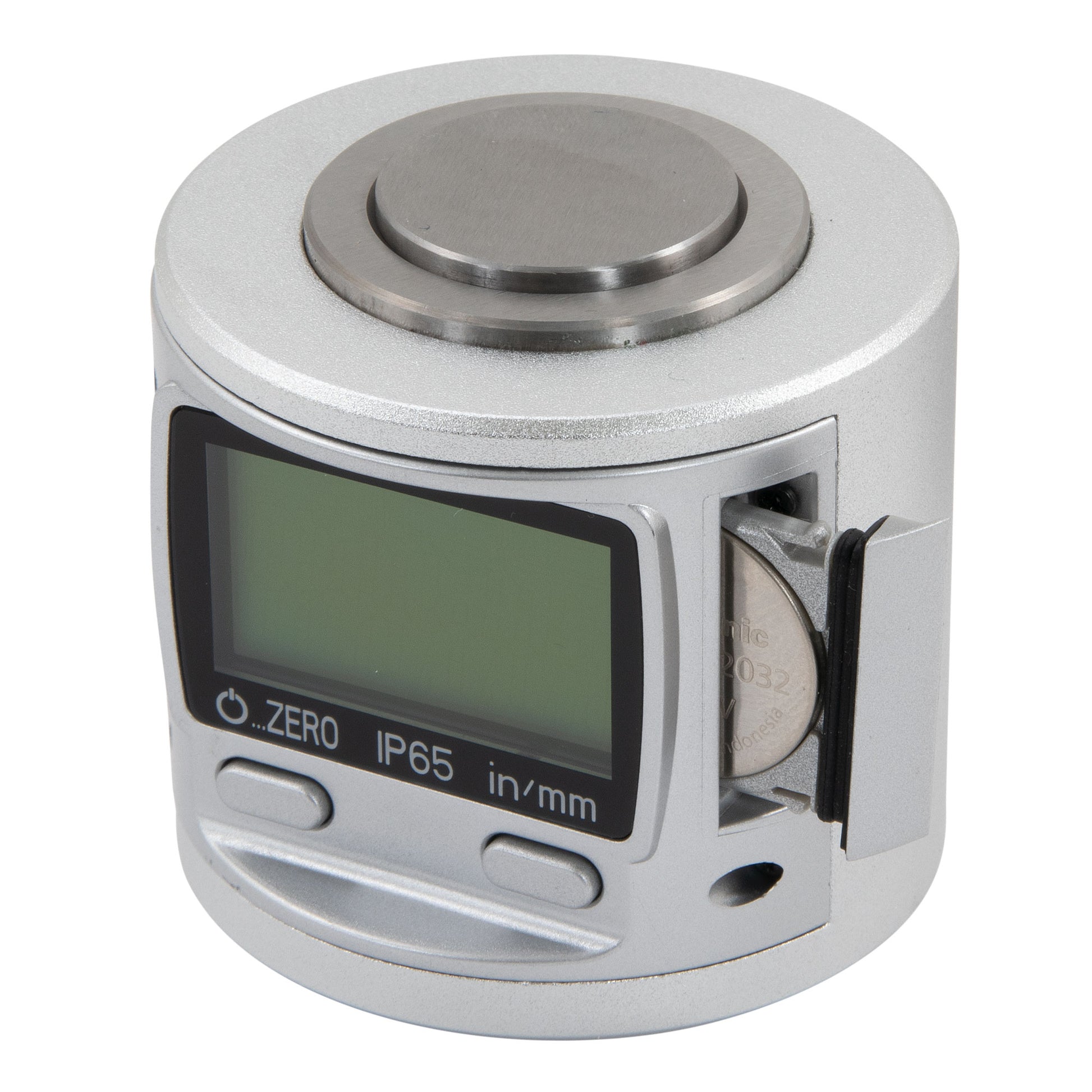

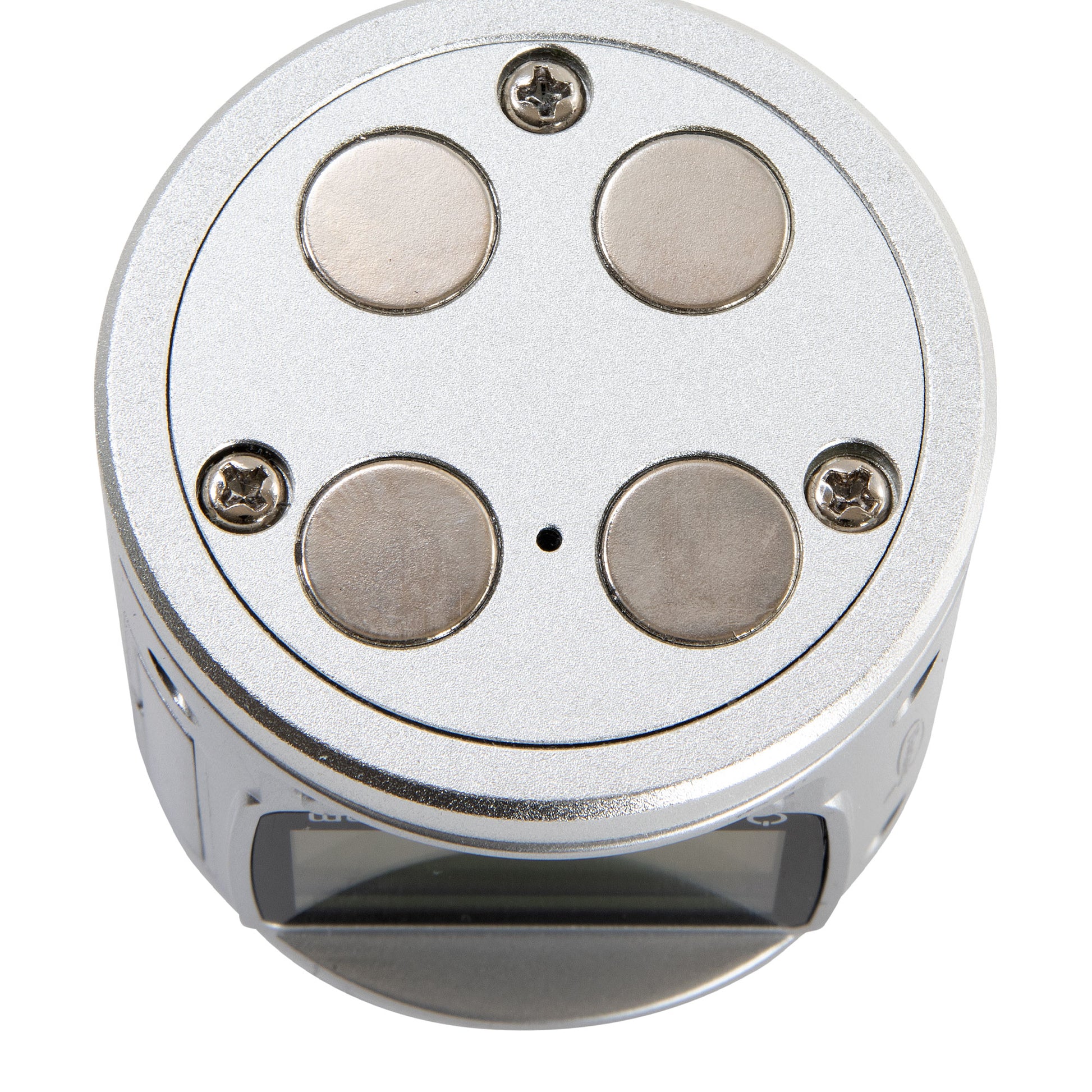

The 4 magnets on the base keeps the device from shifting. CR2032 battery included.
Resolution: 0.00005"/0.001mm.
IP66 Protective Rating.

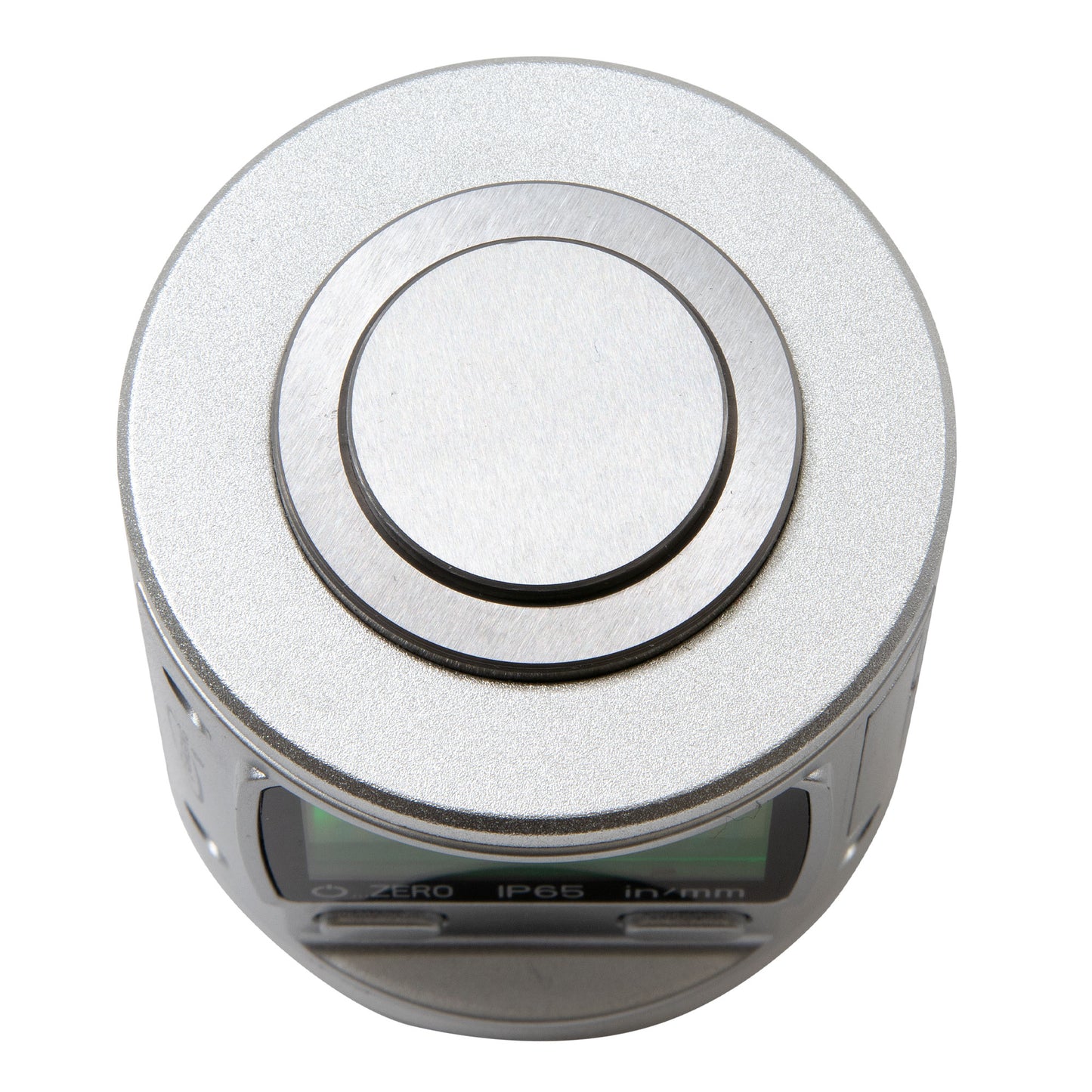

Steel contact surface with 0.002" flatness.
Default setting height 2".
Range: 0.12". Accuracy: 0.0001"/Repeatability: ±0.0001"
Specifications
Height of Spring Mounted Contact Face: 2.067" (52.5 mm)
Diameter: 2.165" (55 mm)
Overall Height: 1.969" (50 mm)
Accuracy: 0.001" (0.01 mm)
Resolution: 0.0005" (0.01 mm)
