ANSI Boring Bar Designations

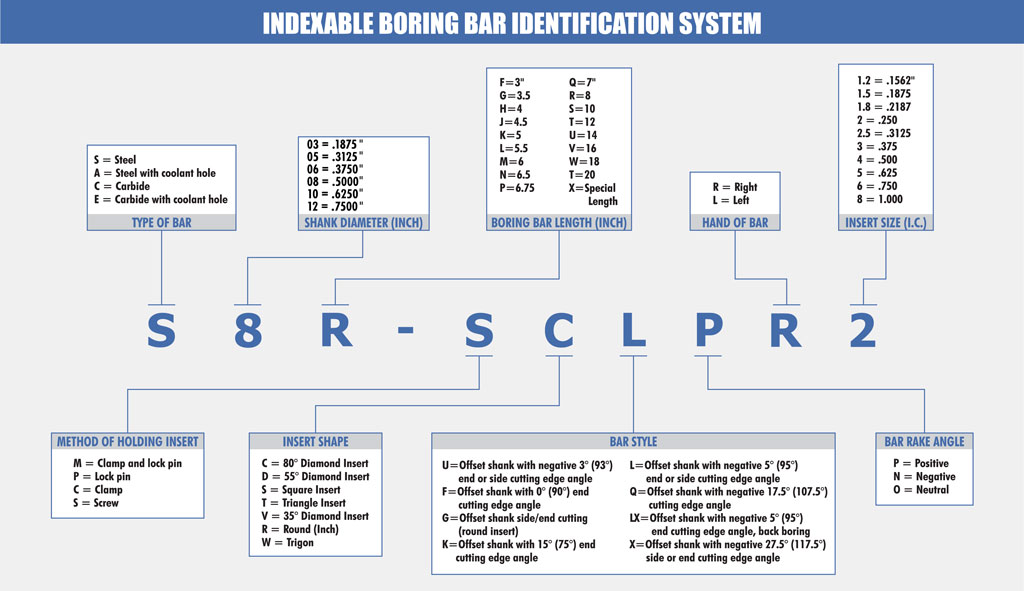

This table shows the ANSI designations for indexable boring bars for internal turning.

See also:
Indexable inserts available at LittleMachineShop.com
ANSI and ISO Insert Designations
ANSI Turning Tool Designations

Printable ANSI Boring Bar Designations Chart

ANSI turning tool holder designation chart
