3-Axis DRO Kit, Bench Mill

3-Axis DRO Kit, Bench Mill

6388

$669.95 USD
$669.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Notify Me

Notify me when items are back in stock.

Key Features

  • Hard wired 3-axis DRO package with mounting arm
  • Designed for LittleMachineShop.com HiTorque bench mills
  • Complete package, no additional components needed
  • Advanced display functions
  • Mounting arm included

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

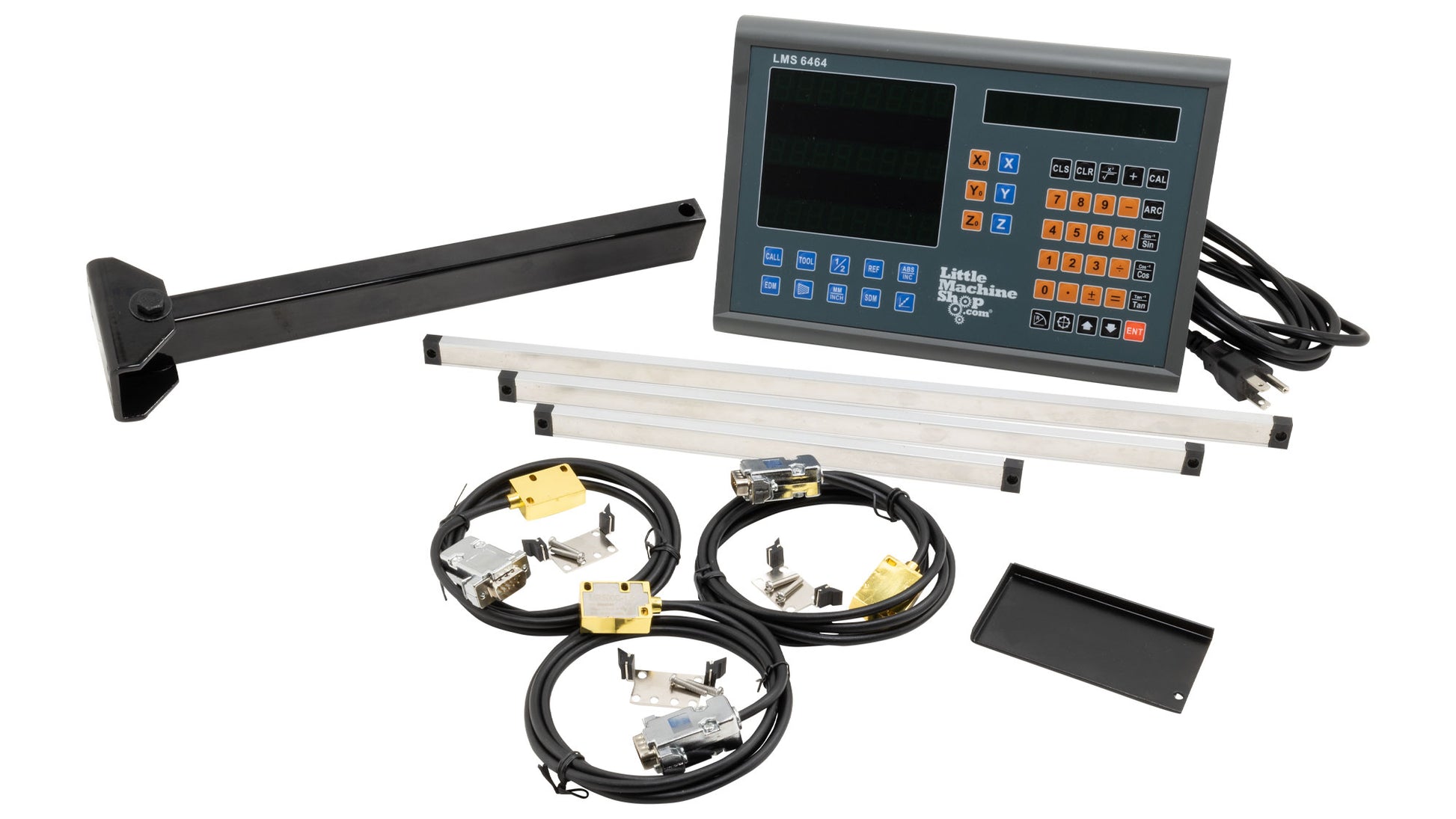

Hard wired DRO kit for the HiTorque bench mills. This kit comes with everything you need for a 3-axis bench mill DRO installation.

The wiring setup eliminates the need for a wireless environment and ensures regular steady connectivity to your mill.

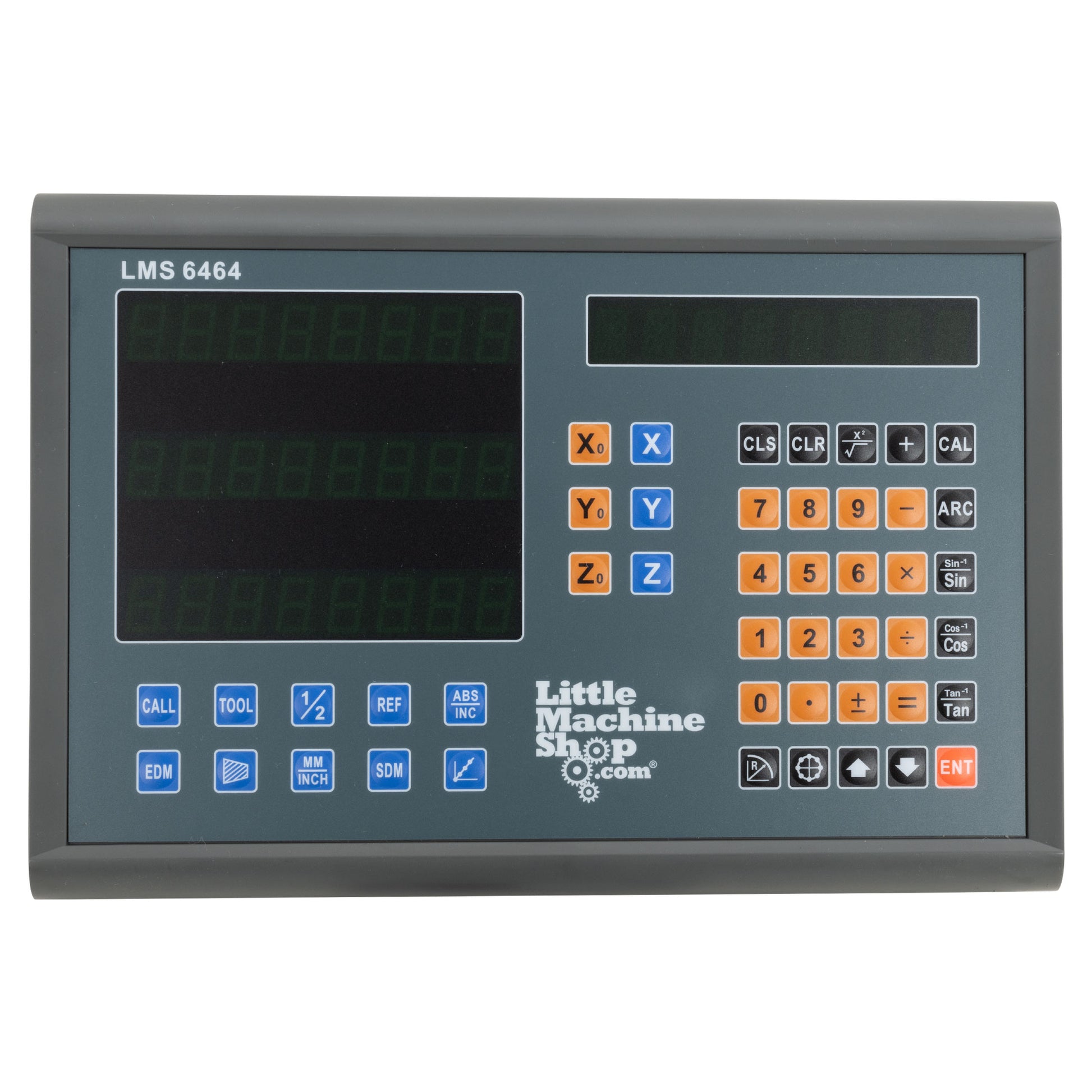

The display has a protective cover which can be used or removed based on your preferences.

The read head cable is approximately 58" between read head and an 9-Pin connector.

The scales are pre-cut to length for the HiTorque bench mills.

See the Compatibility tab for products that work with this product.

***NOTE: This is not a simple "plug in" accessory that requires installation. Please review the instructions in Chris's Tips before purchase.

Specifications

X-Axis Scale Length: 18.110" (460 mm)

Y-Axis Scale Length: 9.449" (240 mm)

Z-Axis Scale Length: 14.173" (360 mm)

Repeatability: 0.000" (0.005 mm)

Resolution: 0.000" (.005 mm)

Specified Accuracy: 0.002" / 1 m travel, 0.05 mm

Accuracy / Foot: 0.002" (.05 mm)

Accuracy / 100 Mm: 0.002" (.05 mm)

Scale Technology: Magnetic

Scale Protection: Coolant & dust resistant

Voltage: 120-240 V

Clear to Zero: YES

Direct Entry of Position: YES

Inch/mm Display: YES

Power Off Memory: YES

Reversible Count Direction: YES

Find Center: YES

Bolt Circles: YES

Bolt Lines: YES

Preset Points: YES

Tool Offsets: YES

Radius/Diameter: YES

Incremental/Absolute: YES

Calculator: NO

Arc Machining: NO

Linear Error Compensation: NO

Made In: China

Warranty: 1 year

Phone Tech Support: Free

Product Compatibility

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

  • SIEG X2.7 Bench Mill
  • LittleMachineShop.com 5500 HiTorque Bench Mill
  • LittleMachineShop.com 6500 HiTorque Bench Mill
  • SIEG SX2.7 Bench Mill
