    3-Axis DRO Kit, Mini Mill, Hard-wired

    3-Axis DRO Kit, Mini Mill, Hard-wired

    $699.95
    $699.95
    Sale Sold out
    Shipping calculated at checkout.

    Out of stock

    6864 (BUNDLE)

    Key Features

    • Fits large-table solid column mini mills
    • Dedicated Display
    • Resolution of 0.0002" (0.005 mm)
    • 120 -240 VAC Power supply
    • Coolant and dust resistant (IP50)

    WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

    View full details

    Product Information

    Description

    This magnetic scale digital readout package fits large-table, solid column mini mills including the HiTorque Mini Mill and the SIEG X2D.

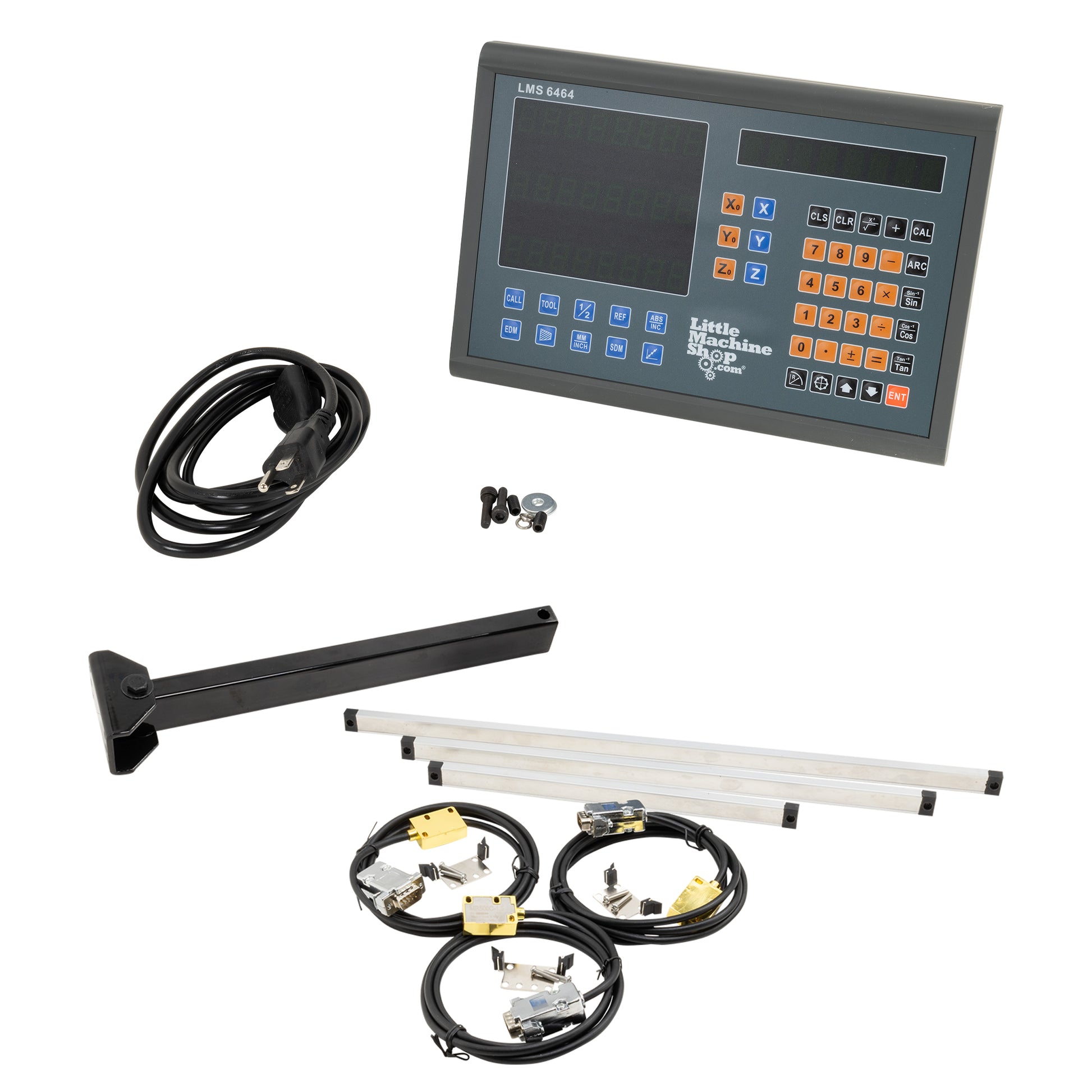

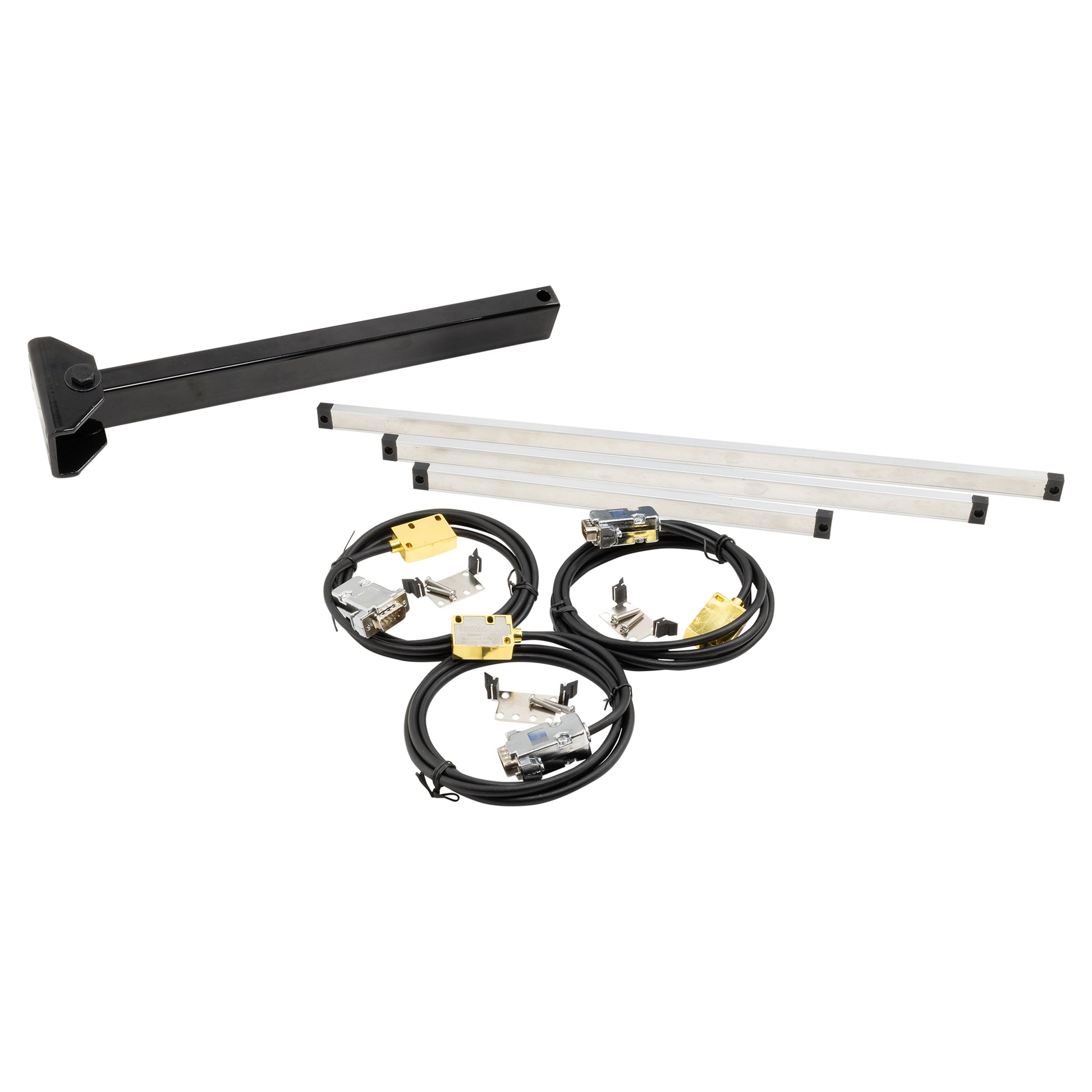

    This package includes what you need to put a DRO on most mini mills. It includes three scales, three read heads, a display, and all the mounting brackets and hardware.

    Read heads plug into display unit, which can be mounted on the wall or anywhere with the included bracket.

    *NOTE: This accessory requires installation involving drilling and tapping holes.

    Specifications

    Repeatability: 0.000" (0.005 mm)

    Resolution: 0.000" (.005 mm)

    Specified Accuracy: 0.002" / 1 m travel, 0.05 mm

    Accuracy / Foot: 0.002" (.05 mm)

    Accuracy / 100 Mm: 0.002" (.05 mm)

    Scales Cut to Length by User: YES

    Scale Technology: Magnetic

    Scale Protection: Coolant & dust resistant

    Voltage: 100-240 V

    Clear to Zero: YES

    Direct Entry of Position: YES

    Inch/mm Display: YES

    Power Off Memory: NO

    Reversible Count Direction: YES

    Find Center: YES

    Bolt Circles: YES

    Bolt Lines: YES

    Preset Points: YES

    Tool Offsets: YES

    Radius/Diameter: YES

    Incremental/Absolute: YES

    Calculator: NO

    Arc Machining: NO

    Linear Error Compensation: NO

    Made In: China

    Warranty: 1 year

    Product Compatibility

    This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

    If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

    • LittleMachineShop.com 4962 SIEG Mini Mill
    • SIEG X2D Mini Mill
    • SIEG X2LF Mini Mill
    • LittleMachineShop.com 3960 HiTorque Mini Mill
    • LittleMachineShop.com 3990 HiTorque Mini Mill
    • LittleMachineShop.com 4190 HiTorque Mini Mill
    • LittleMachineShop.com 6450 HiTorque Mini Mill
    • SIEG SX2LF Mini Mill
