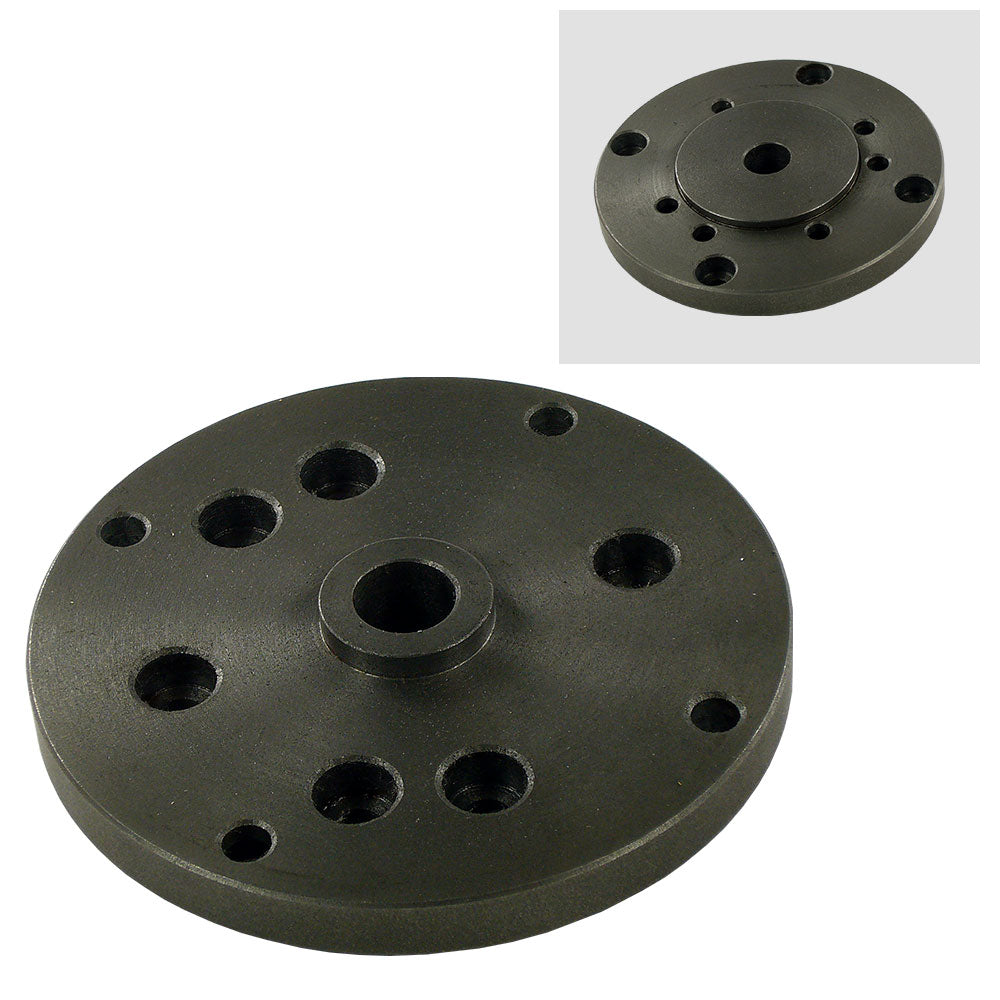

Adapter, 3" Lathe Chuck to 4" Precision Rotary Table
Adapter, 3" Lathe Chuck to 4" Precision Rotary Table
SKU:1888
Low stock
Couldn't load pickup availability
Key Features
Key Features
- For rotary tables with 24 mm registration hole in center
- This adapter is included with the 1810 rotary table and 2183 rotary table package
- Use with a 3" 3- or 4-jaw lathe chuck
- Compatible with rotary table with 2 Morse taper center hole
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
3" Lathe chuck adapter.
This adapter lets you mount a 3" 3- or 4-jaw lathe chuck on a rotary table with a 2 Morse taper center hole. There is an alignment boss that projects into the tapered hole for quick alignment. It is clamped to the rotary table with T-slot nuts that are not included.
You will need to machine the alignment boss to fit your rotary table.
Specifications
Outside Diameter: Ø 3.937",100 mm
Center Hole: Ø 0.551",14 mm
Table Side Registration Boss: Ø 0.945",24 mm
Table Side Bolt Circle: Ø 3.583",91 mm
Adapter Mounting Holes: 4
Chuck Side Registration Boss: Ø 2.165",55 mm
Chuck Side Bolt Circle: Ø 2.598",66 mm
Chuck Mounting Holes: 6
