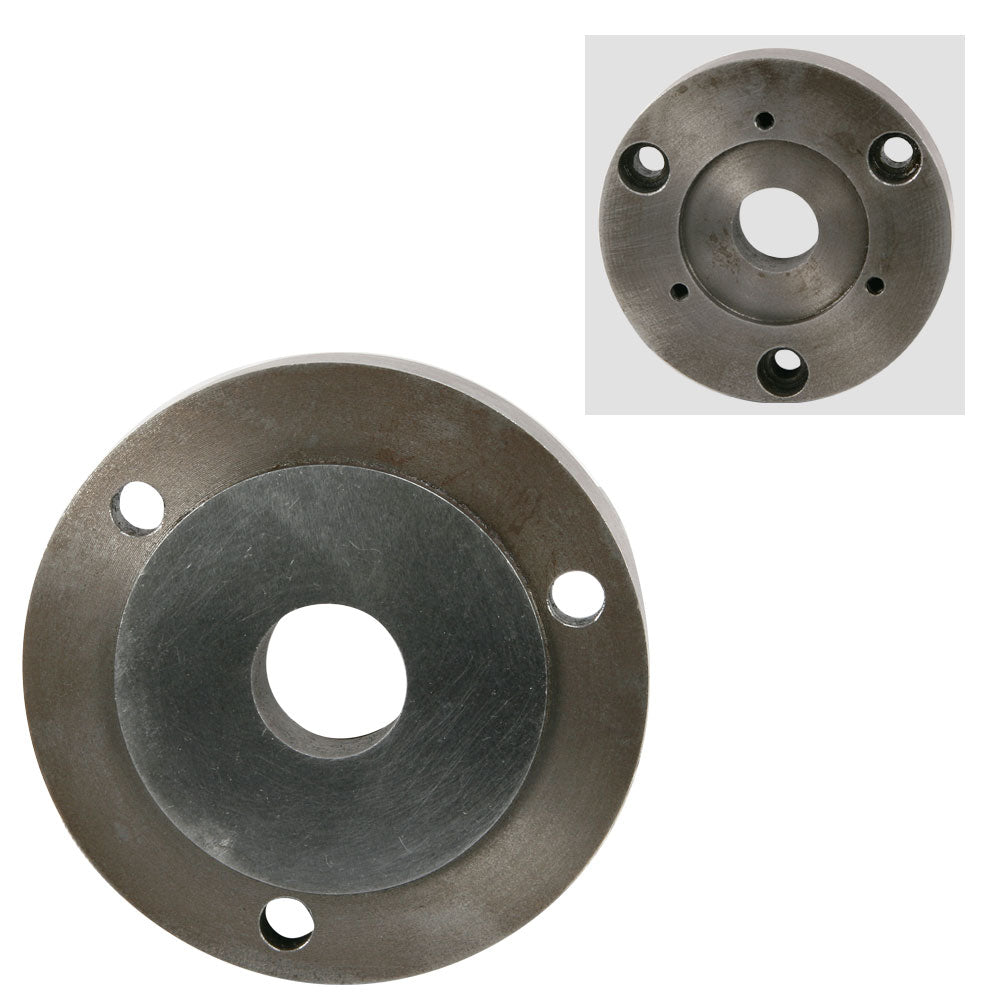

Adapter, 3" Spindle to 4" Lathe Chuck - 70MM Recess
Adapter, 3" Spindle to 4" Lathe Chuck - 70MM Recess
SKU:2426
In stock
Couldn't load pickup availability
Key Features
Key Features
- Compatible with 4" 3-Jaw Lathe Chuck on Mini Lathes
- Use with Chucks with a 70 mm Registration Recess Diameter
- Works on Spindles with Only 3 Holes
- Fits Bison 4" 3-Jaw chucks
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
This adapter lets you mount a 4" 3-jaw lathe chuck on your mini lathe.
Use this adapter with chucks that have a 70 mm registration recess diameter such as Bison 4" 3-Jaw chucks.
The adapter mounts to the 3-hole pattern on the spindle so it works on spindles with only three holes.
Specifications
Outside Diameter: Ø 3.937",100 mm
Center Hole: Ø 0.984", 25 mm
Spindle Side Registration Recess: Ø 2.165",55 mm
Spindle Side Bold Circle: Ø 2.598",66 mm
Chuck Side Registration Boss: Ø 2.756",70 mm
Chuck Side Bolt Circle: Ø 3.268",83 mm
Chuck Mounting Holes: 6
