Adapter, 3" Spindle to 4" Lathe Chuck - 72MM Recess
Adapter, 3" Spindle to 4" Lathe Chuck - 72MM Recess
SKU:1692
In stock
Couldn't load pickup availability
Key Features
Key Features
- Compatible with 4" 3- or 4-Jaw Lathe Chucks on Mini Lathes
- Use with Chucks with a 72 mm Registration Recess Diameter
- Cast Iron
- Net Thickness of 0.66"
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

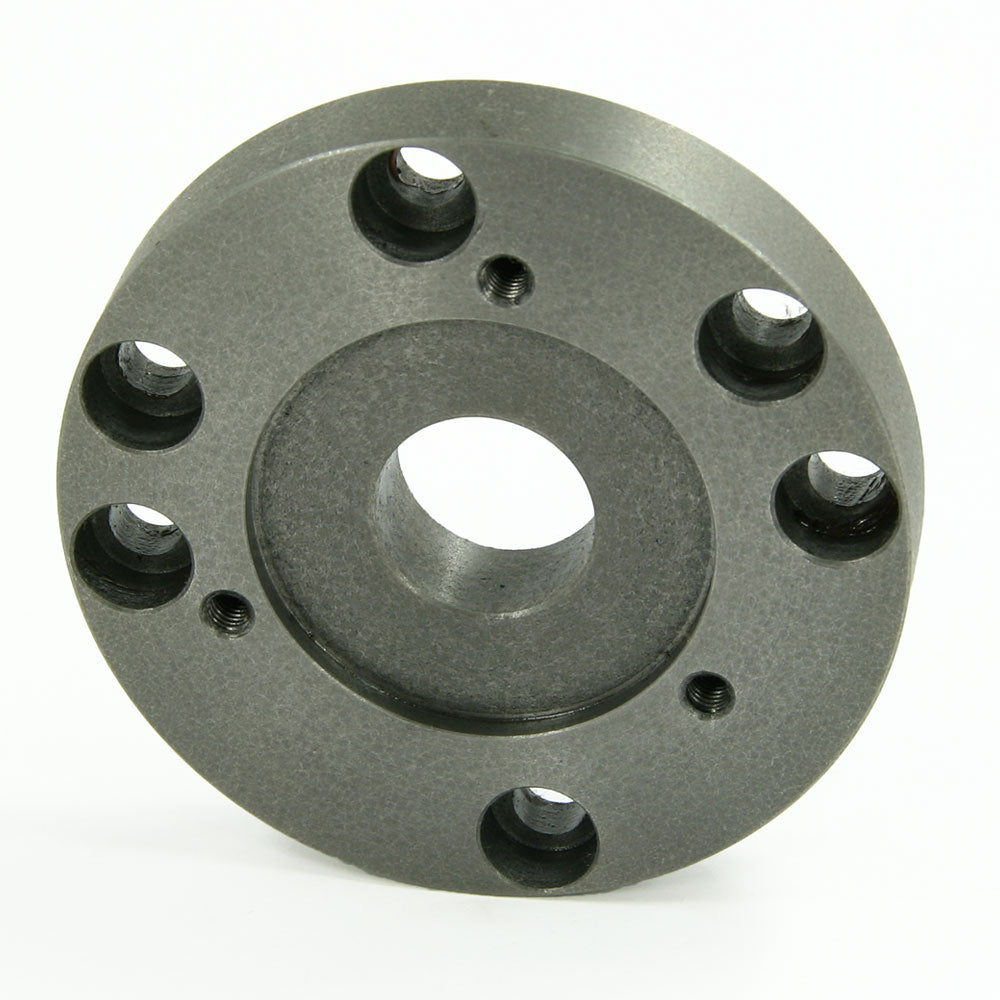

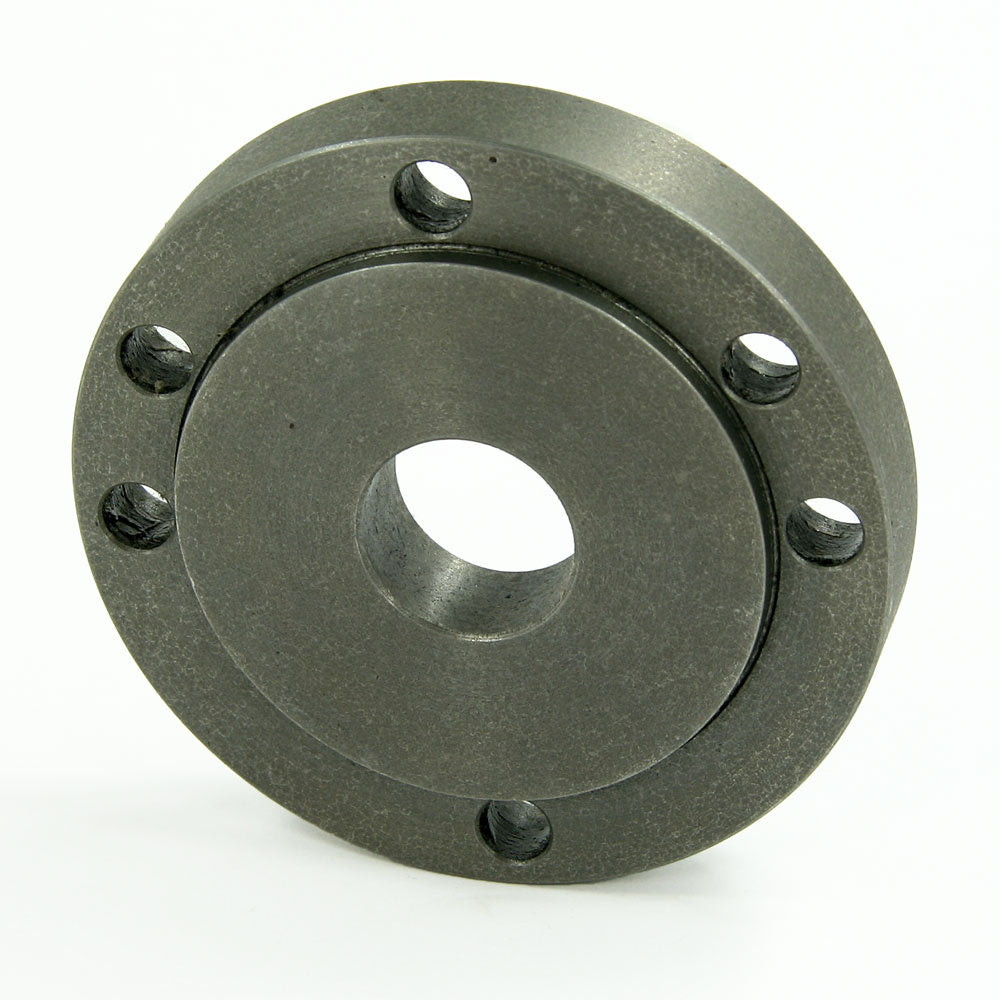

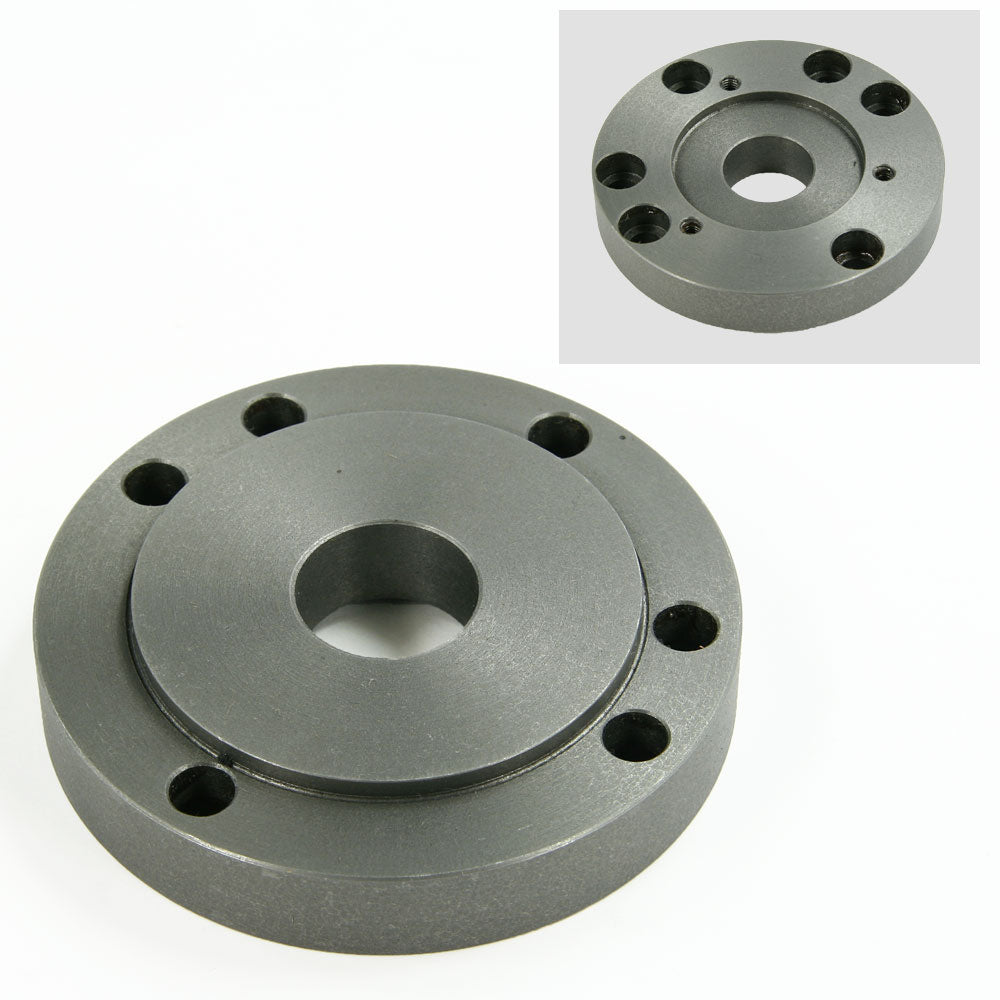

This adapter lets you mount 4" 3- or 4-jaw lathe chucks on your mini lathe.
Use this adapter with chucks that have a 72 mm registration recess diameter.
The adapter mounts to the 3-hole pattern on the spindle so it works on spindles with only three holes.
This adapter is cast iron and has a net thickness of 0.66". The net thickness is the distance from the rim of the lathe spindle to the back of the chuck.
Specifications
Outside Diameter: Ø 3.937",100 mm
Center Hole: Ø 0.984", 25 mm
Spindle Side Registration Recess: Ø 2.165",55 mm
Spindle Side Bold Circle: Ø 2.598",66 mm
Chuck Side Registration Boss: Ø 2.835",72 mm
Chuck Side Bolt Circle: Ø 3.307",84 mm
Chuck Mounting Holes: 3-bolt & 4-bolt patterns
