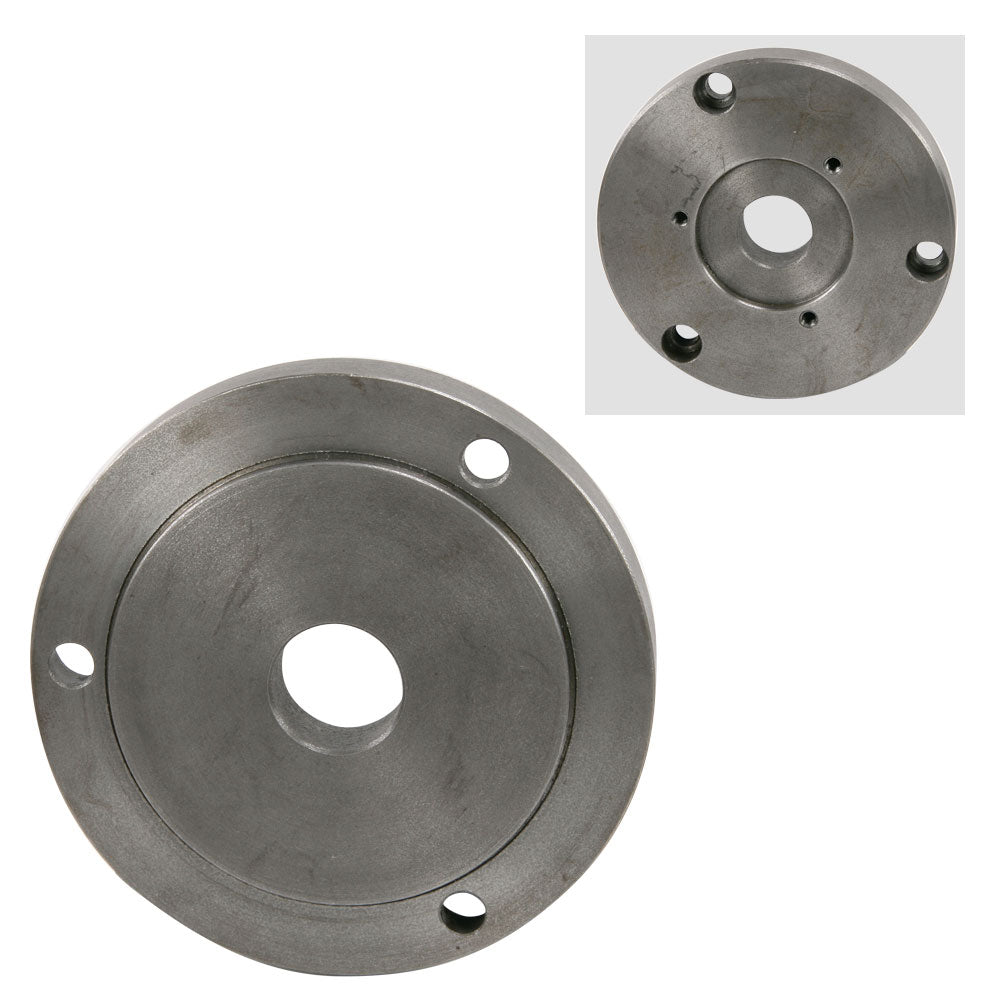

Adapter, 3" Spindle to 5" Lathe Chuck - 92MM Registration
Adapter, 3" Spindle to 5" Lathe Chuck - 92MM Registration
SKU:2358
In stock
Couldn't load pickup availability
Key Features
Key Features
- Compatible with 5" 3-Jaw Lathe Chucks
- Can Use on Mini Lathe with 5" Chuck in Place of 3" Chuck
- 92 mm Diameter Registration Boss
- 3 Chuck Mounting Holes
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
This adapter lets you mount 5" 3-jaw lathe chucks on your mini lathe in place of a 3" (80 mm) chuck.
The adapter mounts to the 3-hole pattern on the spindle so it works on spindles with only three holes.
This adapter has a 92 mm diameter registration boss, and has 3 chuck mounting holes.
Specifications
Outside Diameter: Ø 4.921",125 mm
Center Hole: Ø 1.181", 30 mm
Spindle Side Registration Recess: Ø 2.165",55 mm
Spindle Side Bold Circle: Ø 2.598",66 mm
Chuck Side Registration Boss: Ø 3.622",92 mm
Chuck Side Bolt Circle: Ø 4.252",108 mm
Chuck Mounting Holes: 3
