• Adapter, 5" Lathe Chuck for Prazi
1 1

Adapter, 5" Lathe Chuck for Prazi

Adapter, 5" Lathe Chuck for Prazi

3151

$29.95 USD
$29.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Compatible with 5" 3- or 4-Jaw Lathe Chucks
  • Can Use to Mount 125 mm Chuck on 100 mm Flange

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

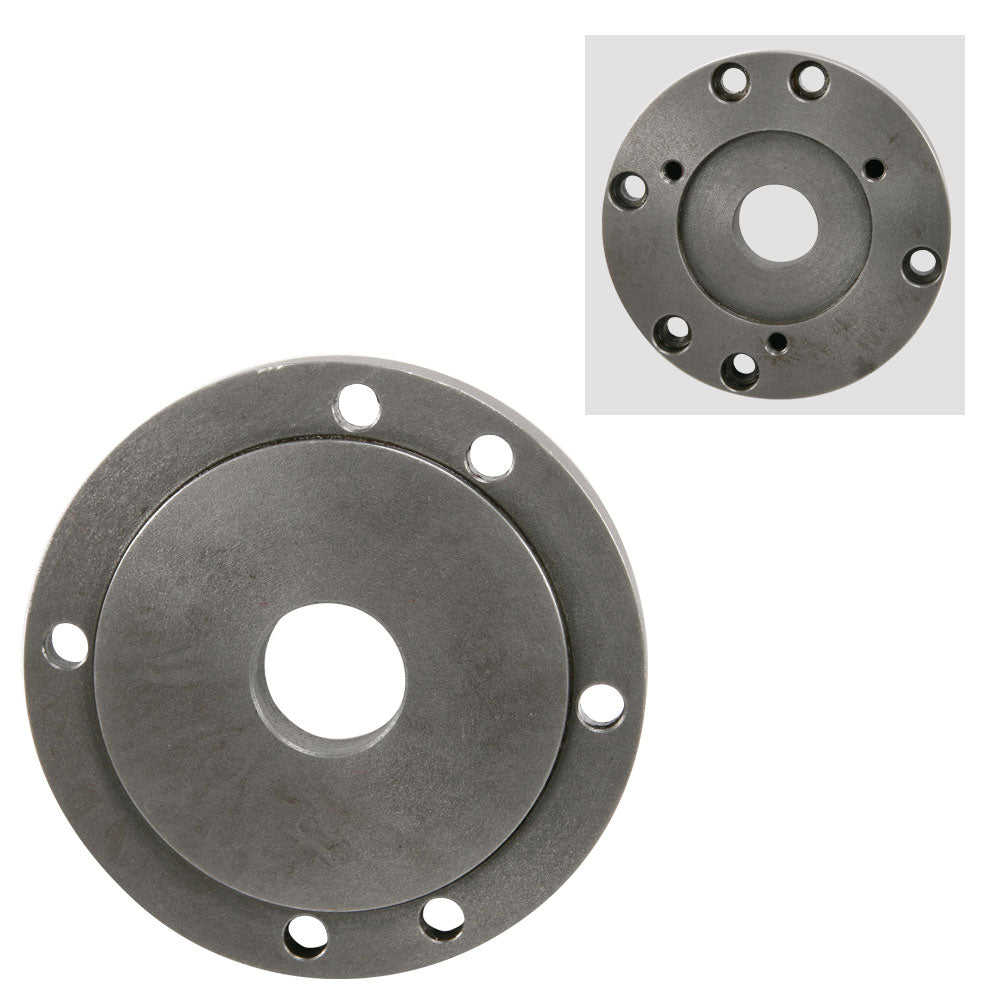

Flange to mount 125 mm chuck on 100 mm flange on Prazi lathes.

Works with Prazi 2400DLX and Wabeco 2400 lathes.

Specifications

Outside Diameter: Ø 4.921",125 mm

Center Hole: Ø 1.181", 30 mm

Spindle Side Registration Recess: Ø 2.756",70 mm

Spindle Side Bold Circle: Ø 3.268",83 mm

Chuck Side Registration Boss: Ø 3.740",95 mm

Chuck Side Bolt Circle: Ø 4.252",108 mm

Chuck Mounting Holes: 6
