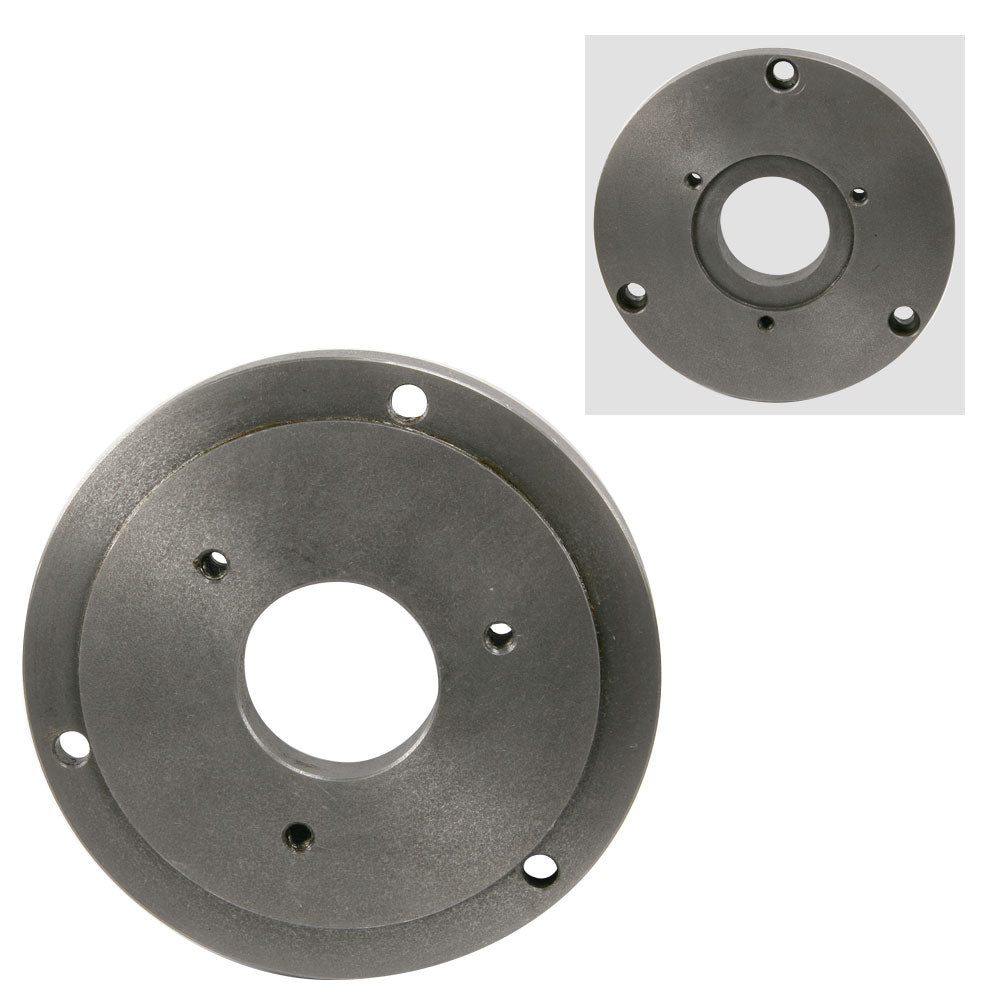

• Adapter, 6" Lathe Chuck
1 1

Adapter, 6" Lathe Chuck

Adapter, 6" Lathe Chuck

4912

$29.95 USD
$29.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Key Features

  • Fits 6" 3-Jaw Lathe Chucks with 130 mm Registration Recess
  • Can Use with 6" Chuck on a Flange for 4" Chuck with 72 mm Registration Boss
  • Works on 8x12 and 8x14 Lathes

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

This adapter mounts a 6" 3-jaw lathe chuck with a 130 mm registration recess on a flange for a 4" chuck with a 72 mm registration boss. It works on 8x12 and 8x14 lathes as well as the Harbor Freight 5980 multipurpose machine. It also fits the SIEG C4 and SC4 lathes.

*NOTE* If using with any of our 6" 4-jaw chucks (2038, 6547) additional mounting holes will need to be drilled. Use M8 transfer screws to mark holes for the 2038 chuck.

Specifications

Outside Diameter: Ø 6.496",165 mm

Center Hole: Ø 1.969", 50 mm

Spindle Side Registration Recess: Ø 2.835",72 mm

Spindle Side Bolt Circle: Ø 3.307",84 mm

Chuck Side Registration Boss: Ø 5.118",130 mm

Chuck Side Bolt Circle: Ø 5.591",142 mm

Chuck Mounting Holes: 3
