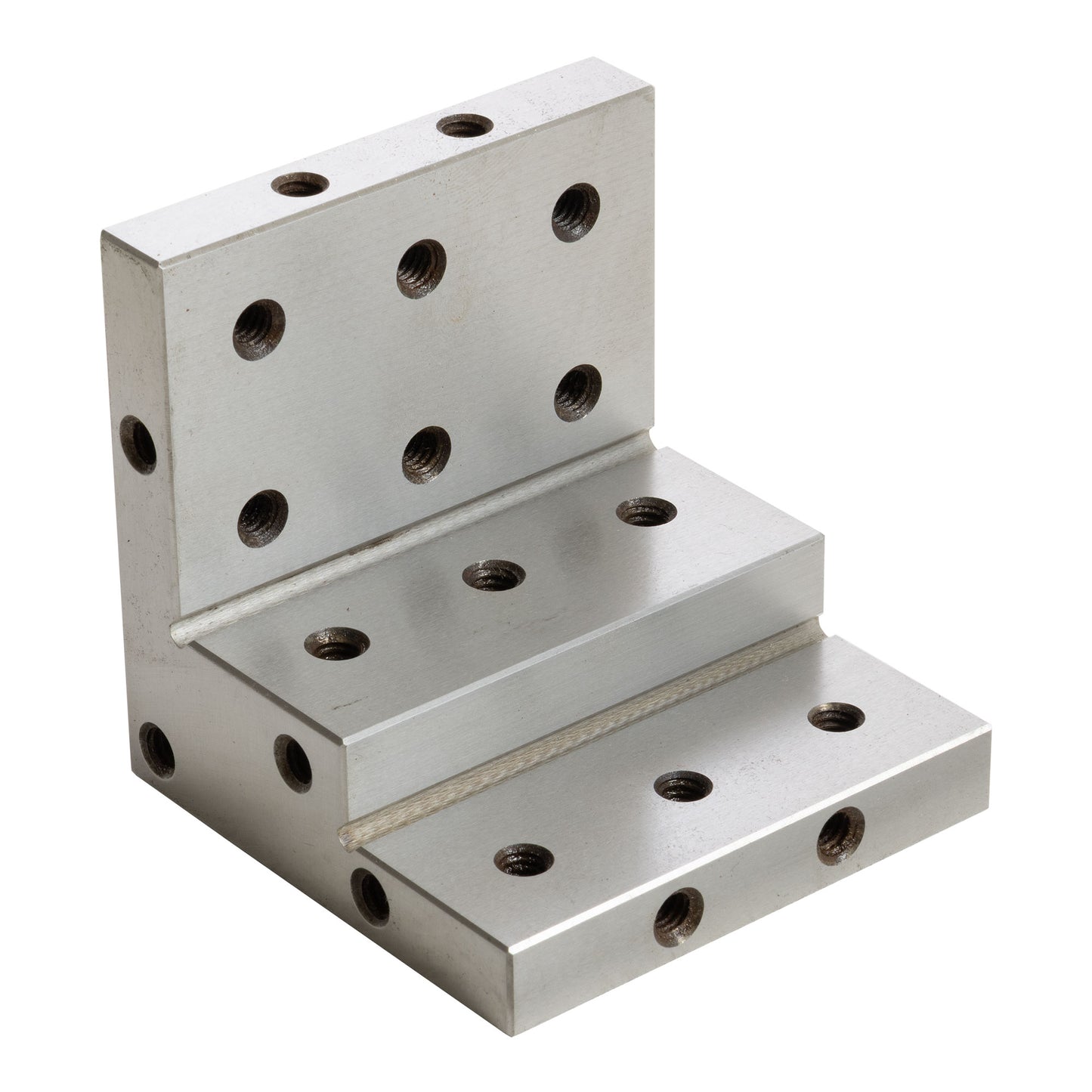

• Angle Plate, Stepped 3x3x3 inch

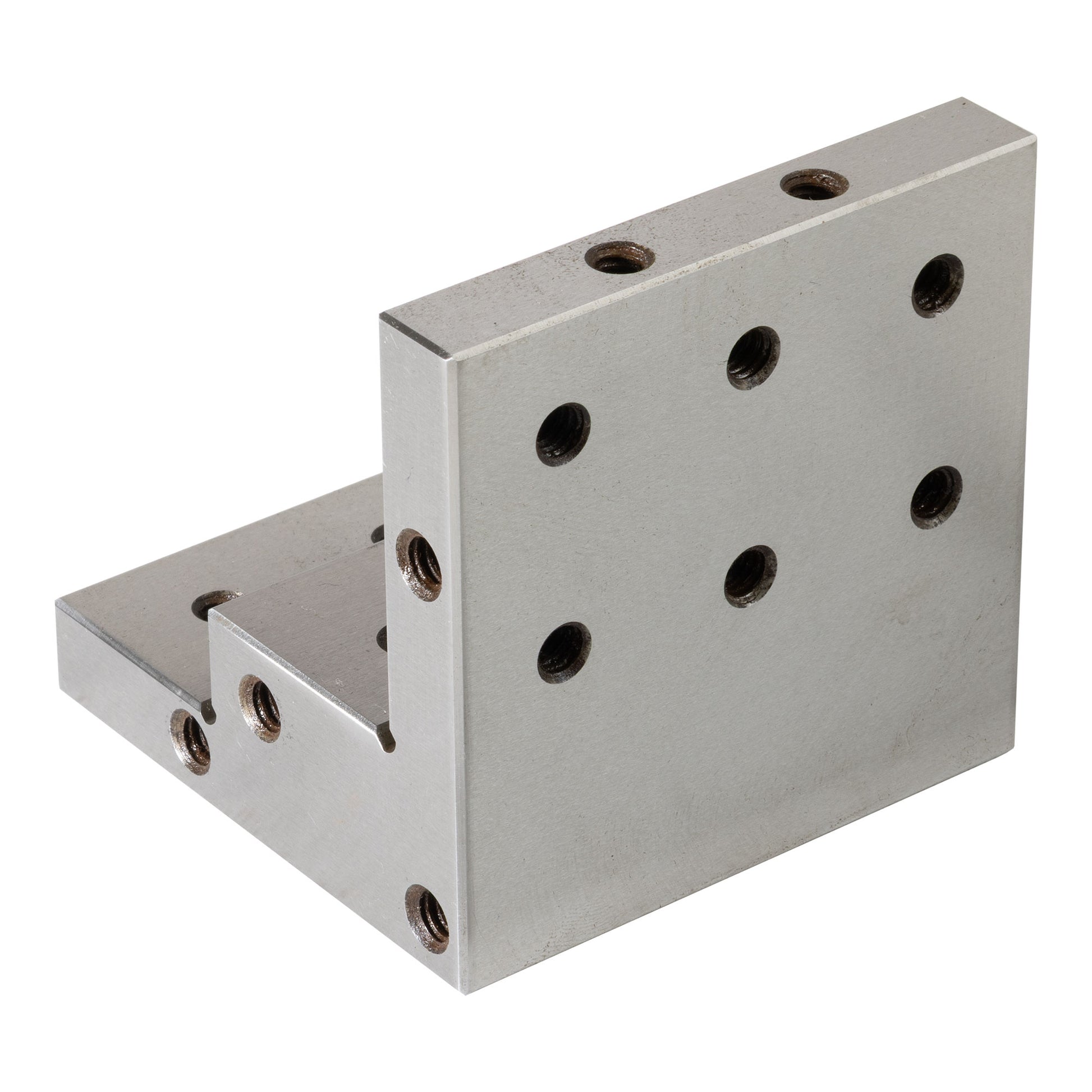

  • Angle Plate, Stepped 3x3x3 inch - reverse view

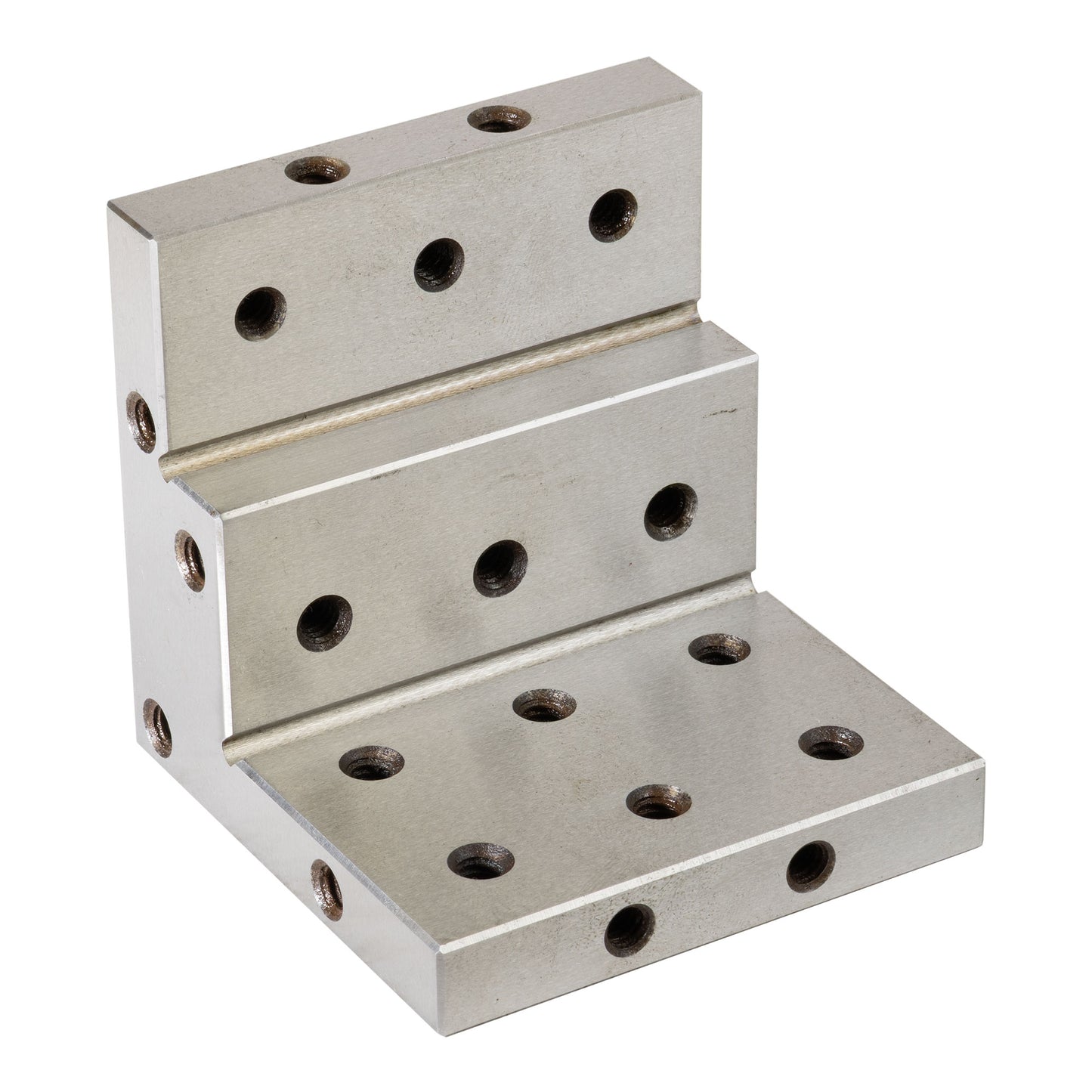

  • Angle Plate, Stepped 3x3x3 inch - inverted

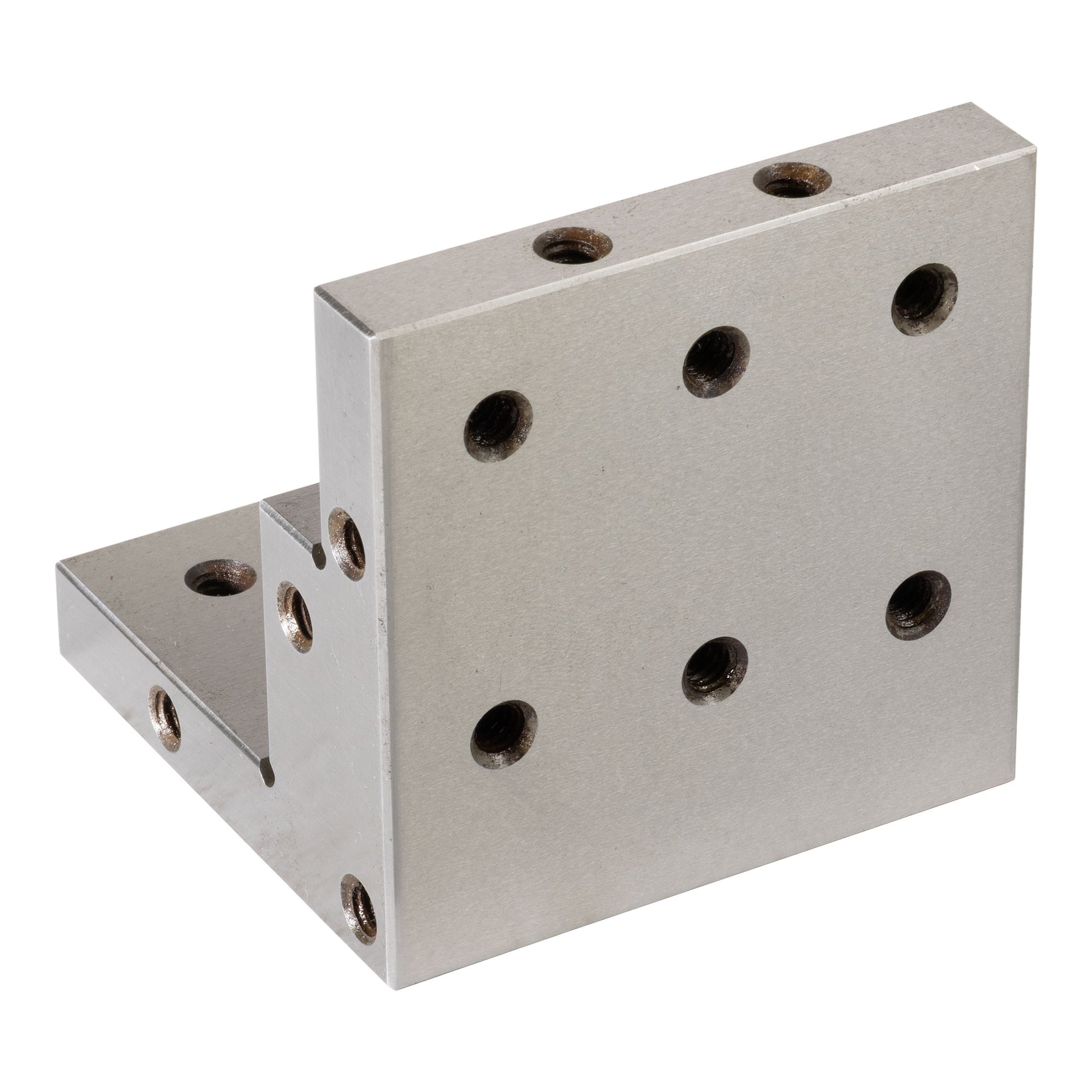

  • Angle Plate, Stepped 3x3x3 inch - inverted reverse view
1 4

Angle Plate, Stepped 3x3x3"

Angle Plate, Stepped 3x3x3"

$99.95
$99.95
Sale Sold out
Shipping calculated at checkout.

In stock

6776 (E03 - 05)

Key Features

  • 3" x 3" x 3" angle plate
  • Square and parallel to .0002" per 4" (0.005mm per 100mm)
  • Made from solid alloy steel
  • Threading of holes is 1/4-20
  • Hardened 58 to 62 HRc

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

Stepped angle plate; a multiuse reference tool for accurate machining work in tool rooms and in small production jobs. Ideal for checking flatness, squareness and parallelism. Manufactured from solid alloy steel with a convenient setup of 1.25" (32mm) down from the top and a 0.5" (12mm) seat allowing for use with smaller work pieces. Twenty-four tapped holes five flexibility in clamping work or fastening fixtures to the angle plate.
Hardened to 58-62 HRc. Square and parallel within 0.0002" per 4" length (0.005mm per 100mm).
