Band Saw, 4x6, Horizontal/Vertical, Rikon
Band Saw, 4x6, Horizontal/Vertical, Rikon
SKU:5300
Out of stock
Couldn't load pickup availability
Notify Me
Notify me when items are back in stock.
Key Features
Key Features

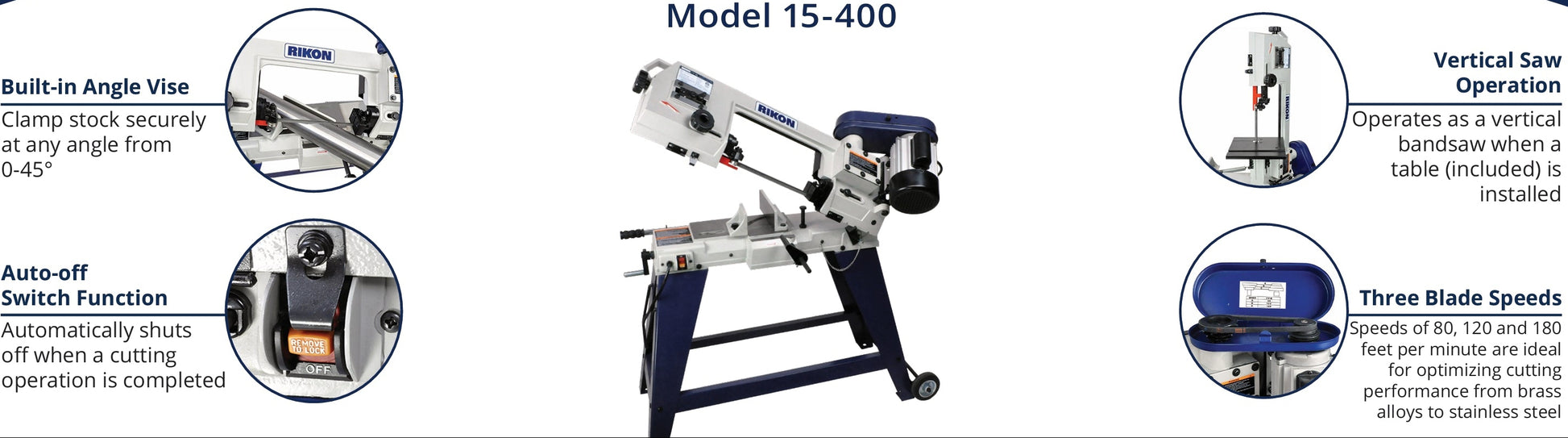

- Floor standing band saw, 4x6, Model 15-400 - Rikon

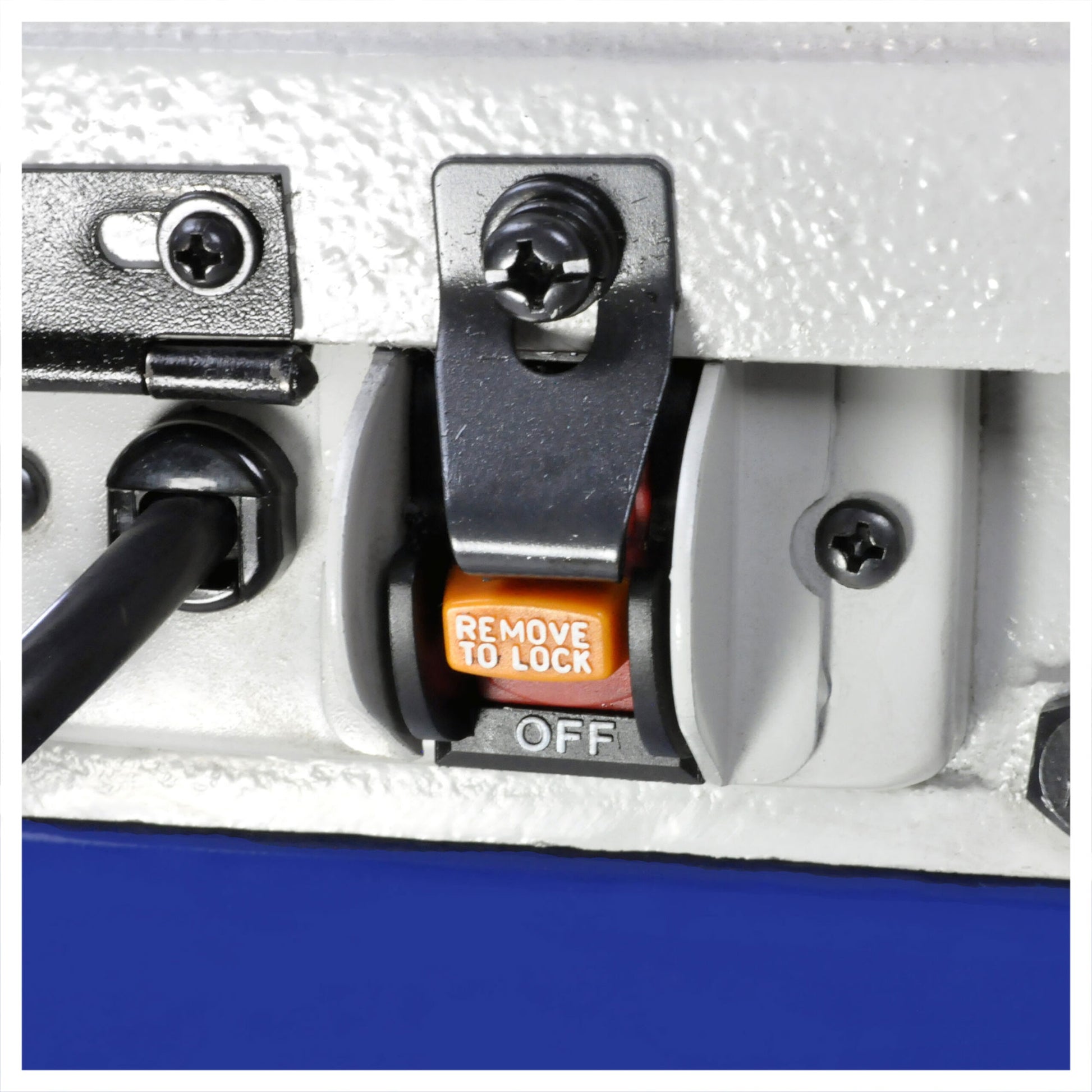

- Horizontal position for precise cutting and automatic shutoff
- Vertical position for freehand cutting
- 3 blade speeds: 80, 120, and 180 feet per minute
- 4" x 6" rectangular capacity or 4-1/2" round stock capacity
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

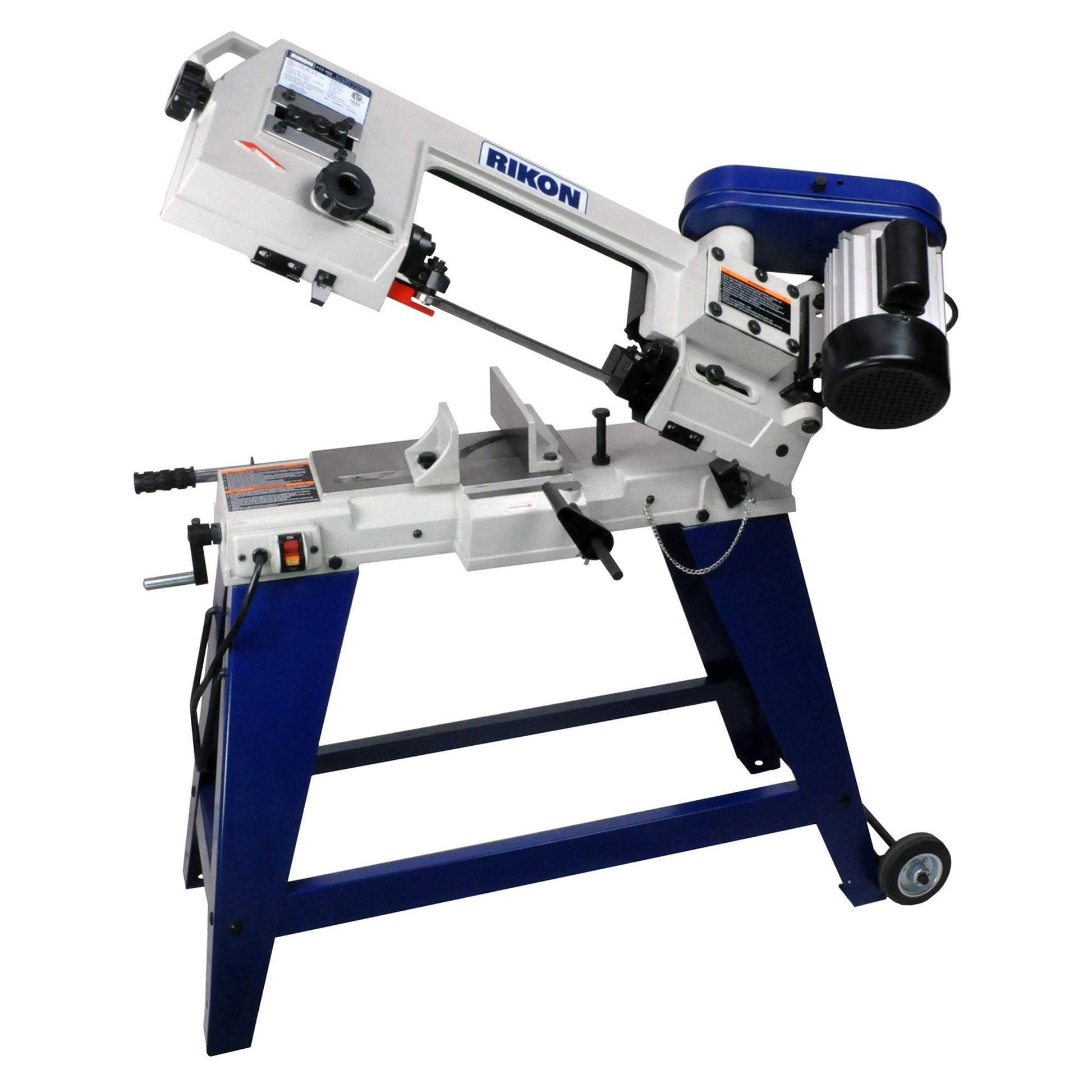

This 4" x 6" capacity horizontal / vertical band saw has automatic shutoff at the end of the cut when in the horizontal position. The saw is floor standing on the included stand.

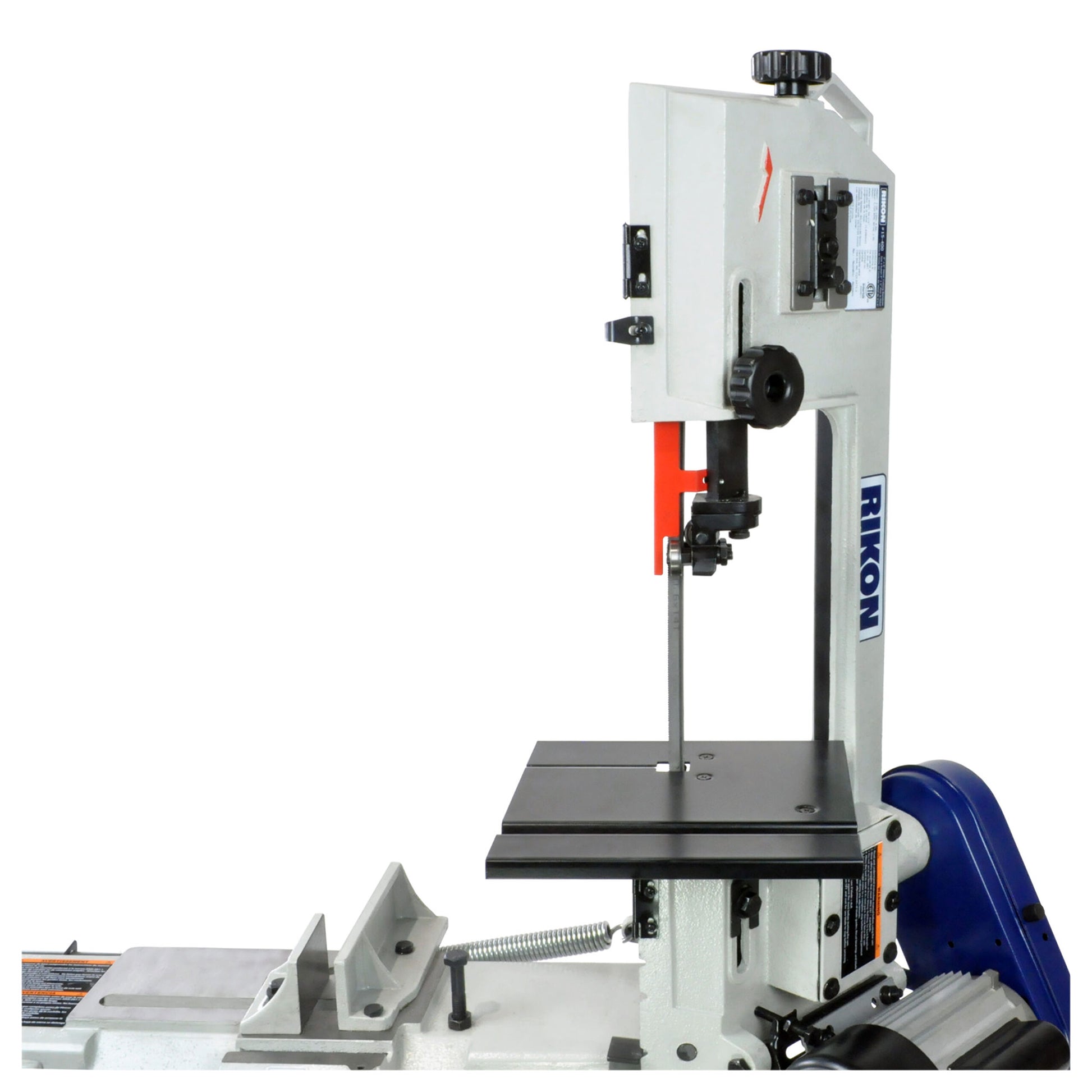

The vertical position allows for freehand cutting of large, thin work pieces.

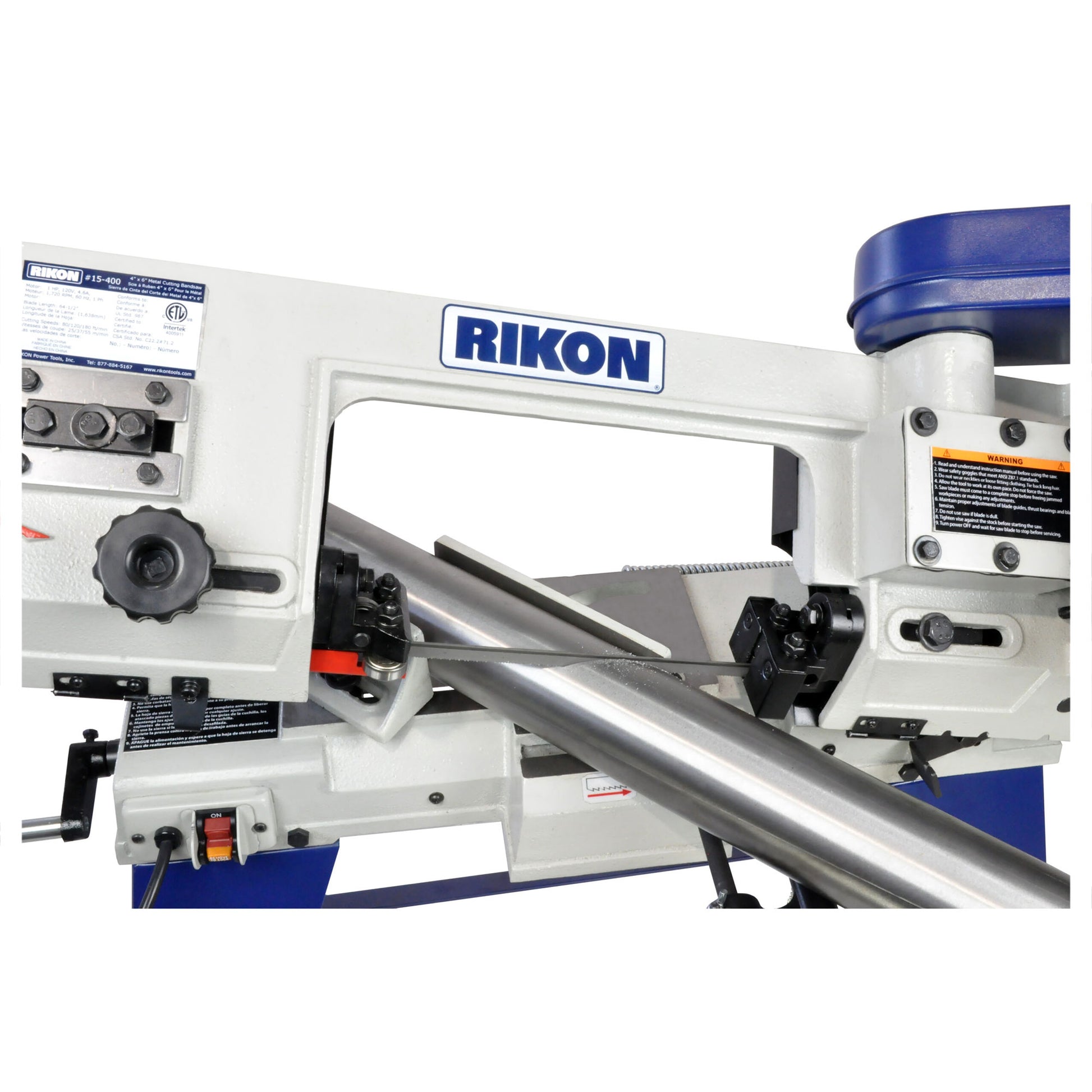

In the horizontal position the vise can be set from 0 to 45 degrees for angle cuts. The saw has adjustable down pressure and automatic shutoff for unattended operation. There is a work stop for repetitive cuts at the same dimension.
The saw comes equipped with a 14 TPI blade.
This is Rikon model 15-400
Chris's Tips
I found a great rule of thumb in Cutting Tool Engineering for selecting the correct band saw blade. It's the rule of 3, 6, 12, 24. You want at least three teeth on the work all the time, you don't want more than 24 teeth on the work at any one time, and what you would like is between 6 and 12 teeth on the work all the time.

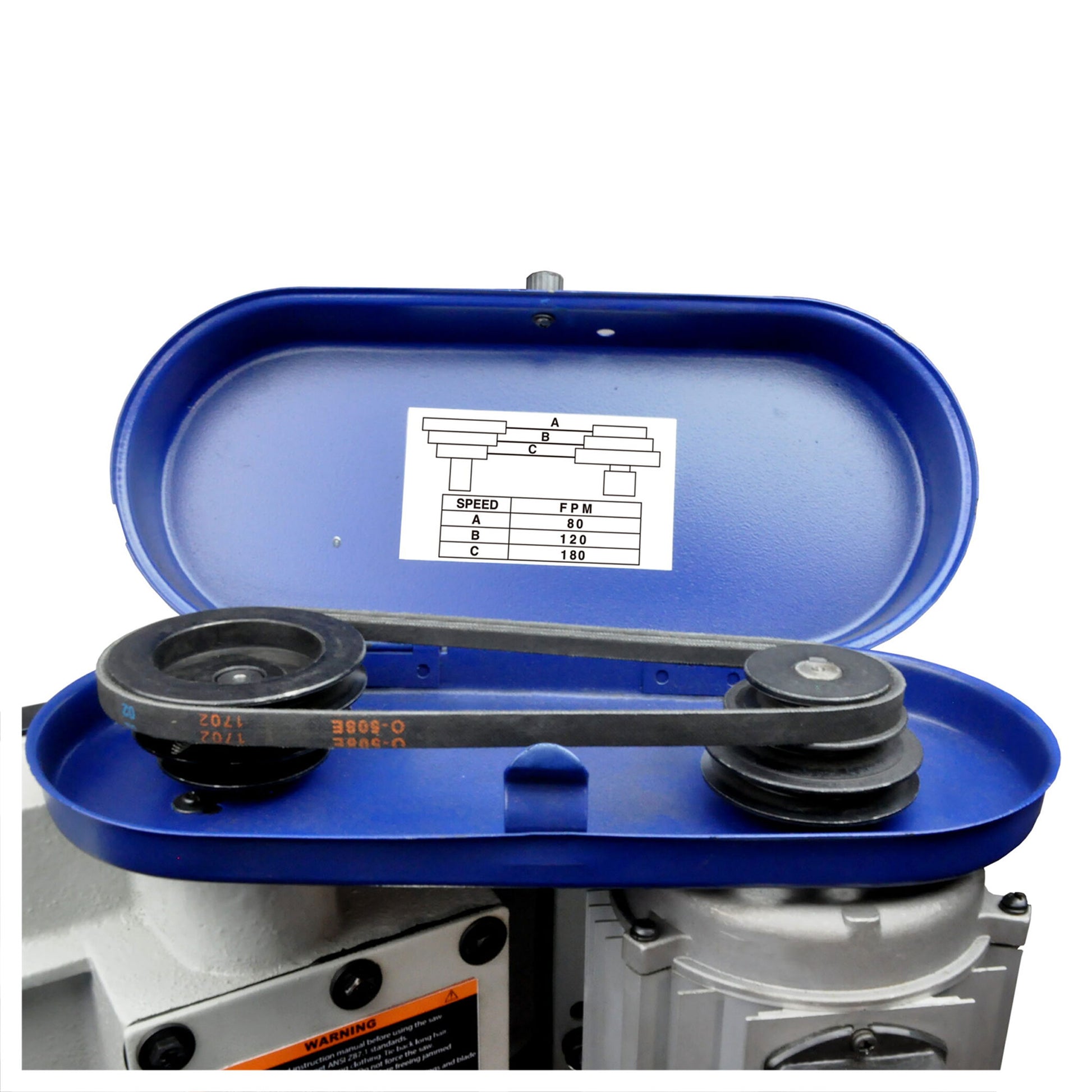

Our 4x6 band saw has three speeds. Use low speed for high strength steel, stainless steel, and other harder materials. Use the medium steel for mild steel including structrual shapes. Use high speed for aluminum and other non-ferrous metals. High speed works well for wood and plastic, too.structural
Learn about Selecting and Using Band Saw Blades.
Specifications
Cutting Capacity, Rectangular: 4" x 6" (101.600 mm x 152.400 mm)
Cutting Capacity, Round: 4.5" (114.300 mm)
Blade Size: 64-1/2" x 1/2" x 0.025"
Angle Cuts, Horizontal Position: 0°-45°
Motor: 0.74 hp (550 Watts)
Blade Speeds: 88 130 210 FPM
Power Requirements: 120 V 60 HZ 6.5 Amps
Machine Weight: 128 lbs (58 kg)
Base Dimensions (W x D): 34" x 14" (863.600 mm x 355.600 mm)
Overall Dimensions, Horizontal Position (W x D x H): 37.795" x 19.685" x 37.795" (960 mm x 500 mm x 960, mm)
Overall Dimensions, Vertical Position (W x D x H): 37.795" x 19.685" x 55.118" (960 mm x 500 mm x 1400 mm)
Crated Weight: 135 lbs (61 kg)
Crate Dimensions (W x D x H): 39.646" x 15.039" x 15.157" (1007 mm x 382 mm x 385 mm)
