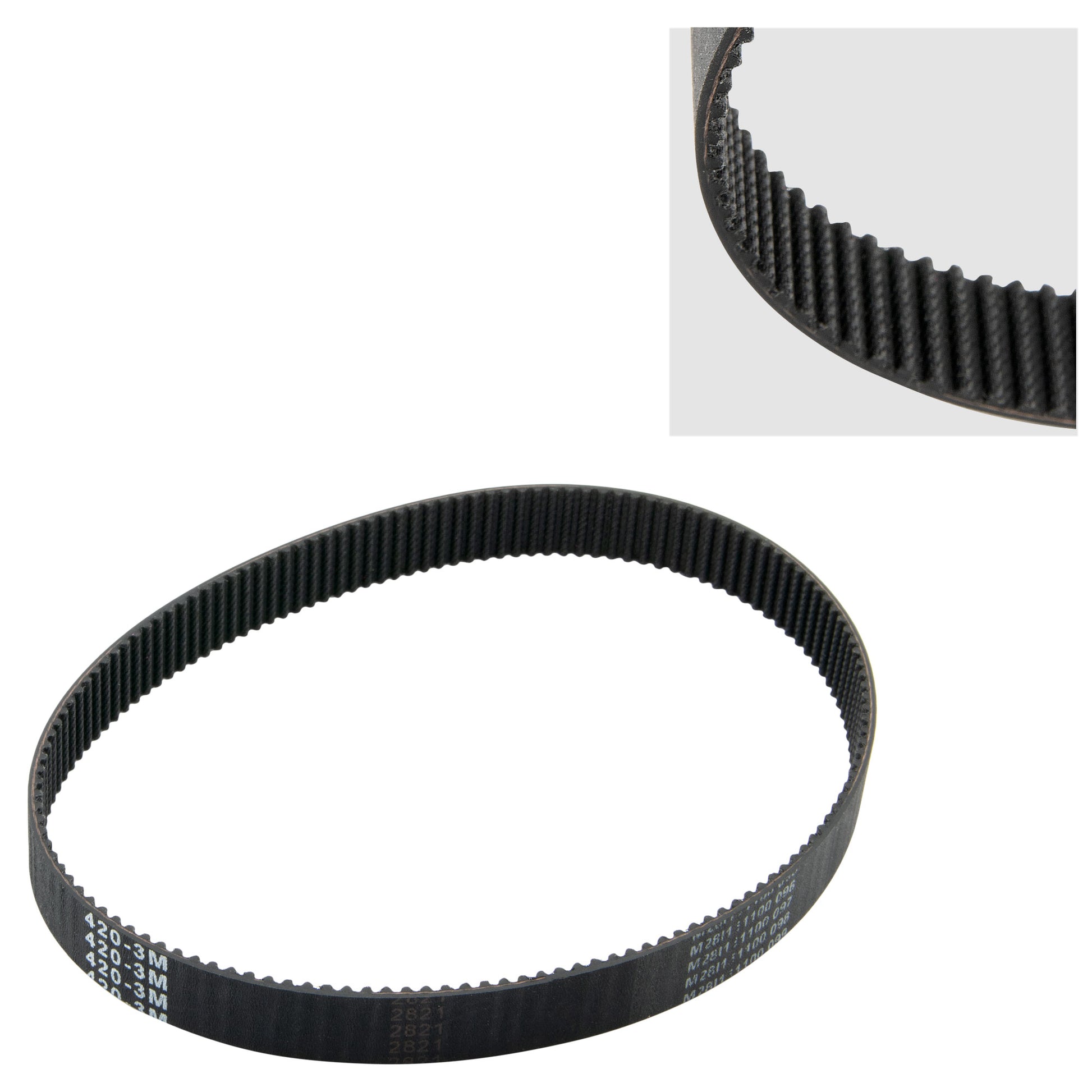

• Belt, Timing, HiTorque Large Bench Mill, Low Speed
1 1

Belt, Timing, HiTorque Large Bench Mill, Low Speed

Belt, Timing, HiTorque Large Bench Mill, Low Speed

6013

$15.95 USD
$15.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Key Features

  • Timing belt, low speed, high torque
  • For speeds from 100 - 1800 RPM
  • HiTorque large bench mill
  • Fits SIEG SX3.5 bench mills
  • Belt classification: 3M-420-15
*Will this fit my machine? Check our Replacement Parts

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

Timing belt for the HiTorque large bench mill and SIEG SX3.5 bench mills. This is the low speed belt for spindle speeds between 100 - 1800 RPM. It allows for more torque at the lower speeds. For speeds between 280 - 5000 RPM, use the poly-v belt.
This belt is marked 3M-420 and is 15 mm wide.

Specifications

Desigination: 420-3M-15

Belt Length: 16.535" (420 mm)

Belt Width: 0.591" (15 mm)

Teeth Distance to Center: 0.118" (3 mm)

Number of Teeth: 140
