• Blocks, 1-2-3, Universal 11 Hole Set
1 1

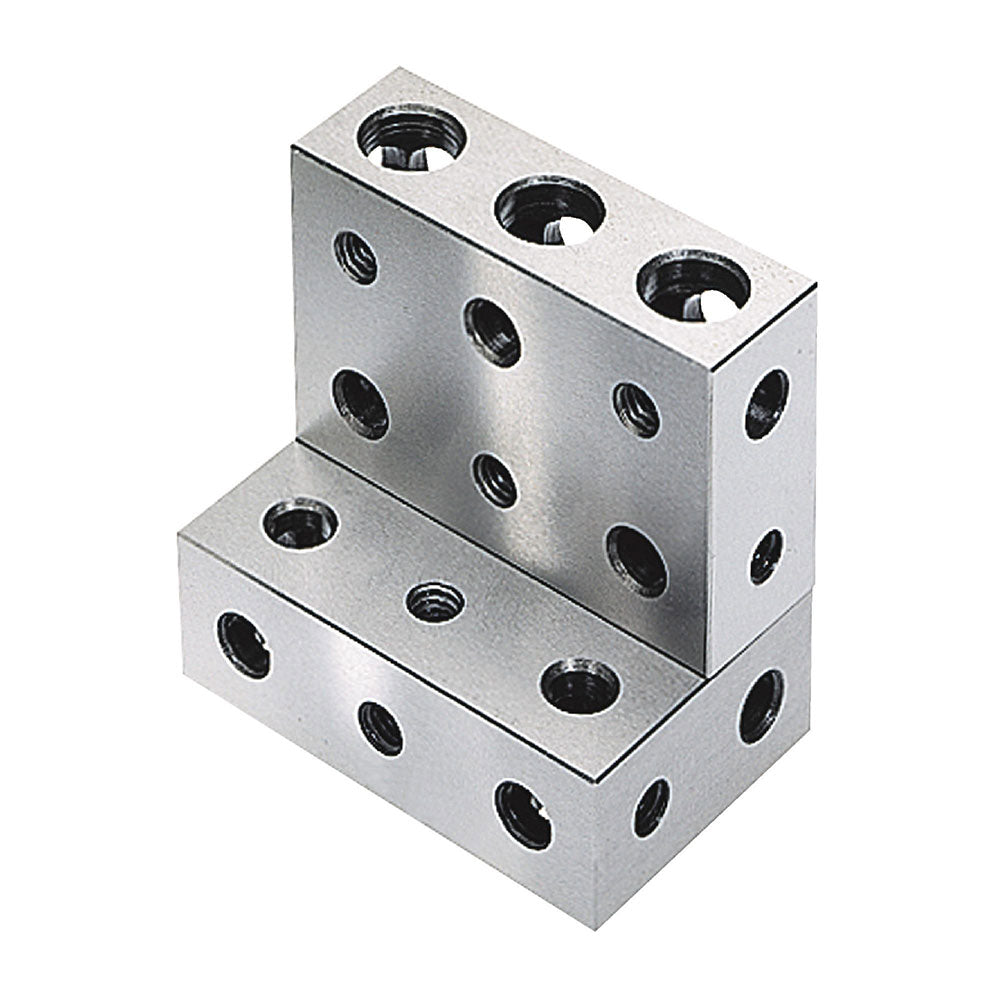

Blocks, 1-2-3, Universal 11 Hole Set

Blocks, 1-2-3, Universal 11 Hole Set

6323

$89.95 USD
$89.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Key Features

  • Five threaded holes - 5/16"-18
  • Six through holes for clamping
  • Hardened and precision ground steel
  • Pairs are matched within 0.0002"
  • Dimensions: 2" width x 1" height x 3" length

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

These 1-2-3 blocks are ground and case hardened on all sides to 55-62 Rc. The blocks are 1" x 2" x 3".

They are parallel within 0.0002" and have a .0001" to .0003" over allowance for nominal lapping.

Each set includes two matched blocks. These blocks can be bolted together using 5/16"-18 socket head cap screws (not included).

The blocks have 11 holes, six drilled through with deep recesses for clamping, and five tapped holes which are threaded 5/16"-18 NC.

Chris's Tips

Here is What to do with 1-2-3 Blocks by Rick Sparber that shows the many uses of 1-2-3 blocks,
