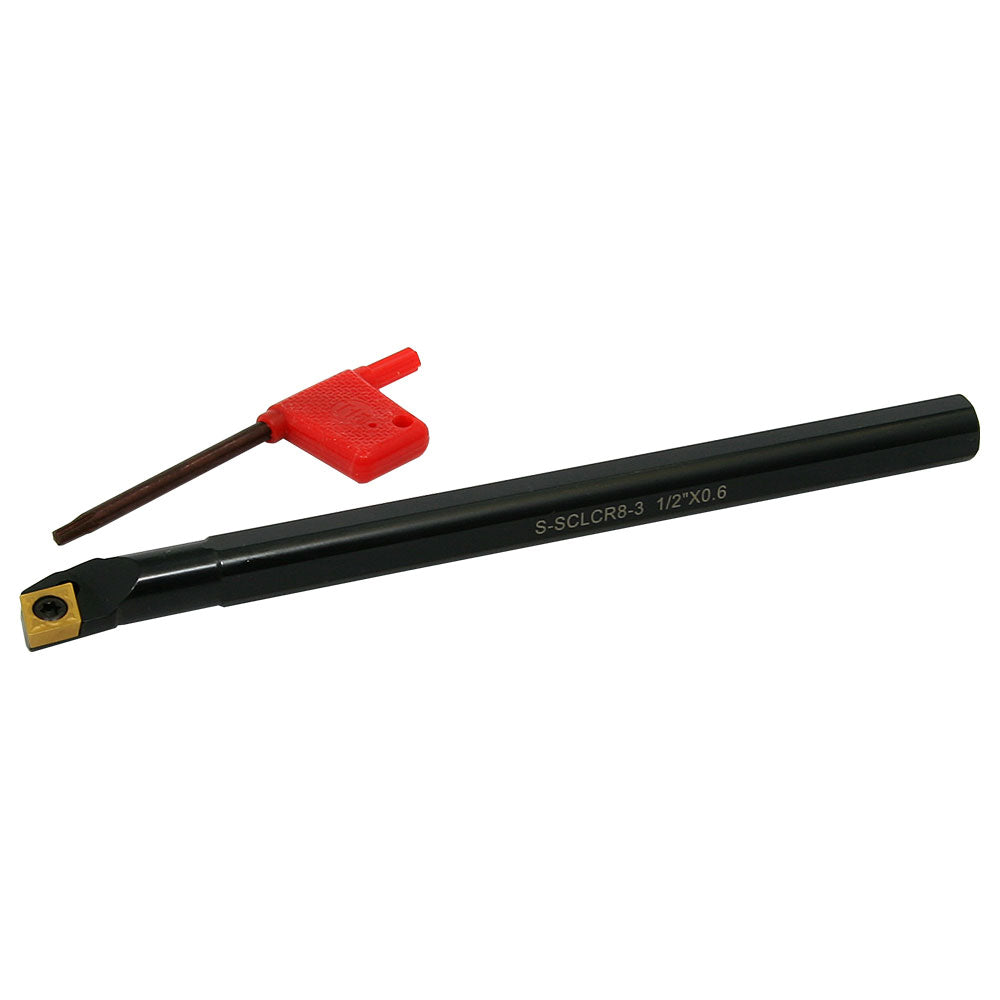

Boring Bar, 1/2" Indexable
Boring Bar, 1/2" Indexable
SKU:1780
In stock
Couldn't load pickup availability
Key Features
Key Features
- Profiling bars for semi-finishing and finishing operations
- Designed for CCMT 80° inserts
- 7° Relief angle
- Negative 5° Lead angle for boring
- 3° Side & end cutting edge angle
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
This 1/2" diameter indexable boring bar uses CCMT inserts.
Minimum bore diameter is 0.625"
Use CCMT 32.51 or CCMT 32.52 inserts with this boring bar.
Chris's Tips
Make sure you get the correct inserts and retaining screws for your indexable turning tools.
Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.
Specifications
Overall Length: 6" (152.400 mm)
Diameter: .5" (12.700 mm)
Minimum Bore: 0.625" (15.875 mm)
Ccmt Inserts: 80°
Replacement Inserts: CCMT-32.51 or CCMT-32.52
Relief Angle: 7°
Lead Angle For Boring: -5°
Side & End Cutting Edge Angle: 3°
Screw: M4x10
Torx Wrench: T-15
