Boring Bars, Indexable, 95 Deg Diamond Insert, 3 Piece Set, Harlingen
Boring Bars, Indexable, 95 Deg Diamond Insert, 3 Piece Set, Harlingen
SKU:6678
In stock
Couldn't load pickup availability
Key Features
Key Features
- 3 piece set, 3/8", 1/2", and 5/8 diameter shanks
- Carbon steel shanks with 95 degree inserts
- For boring and facing hole bottoms
- Suitable for steel, cast iron, and stainless steel
- Set comes in fitted aluminum case
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

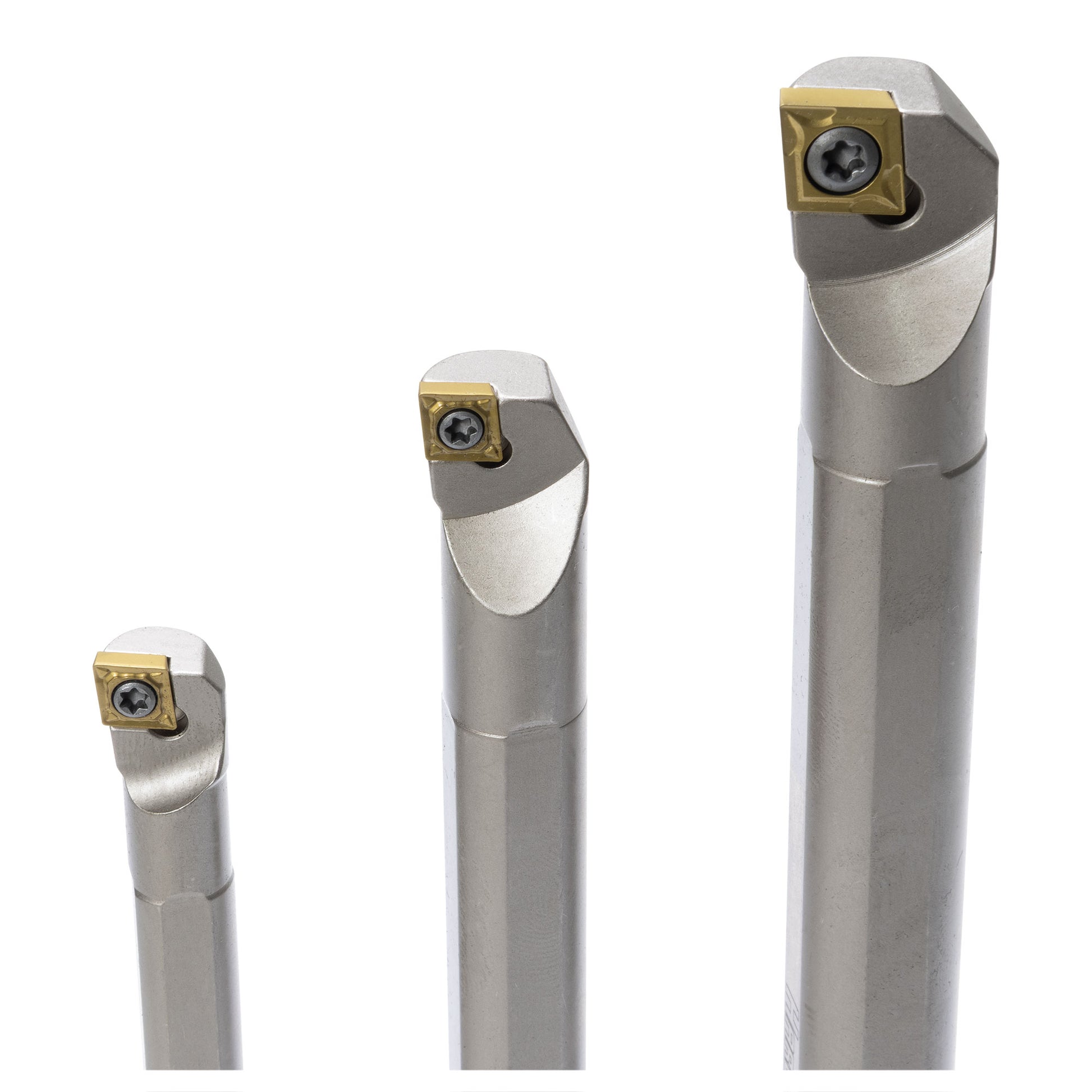

Three piece boring bar set with shank sizes of 3/8", 1/2", and 5/8". Each boring bar has a carbide insert.
This set allows for both boring and facing the bottom of holes. It is suitable for cutting steel, cast iron and stainless steel.
The insert screw is hardened to ensure a solid fit of the carbide insert.

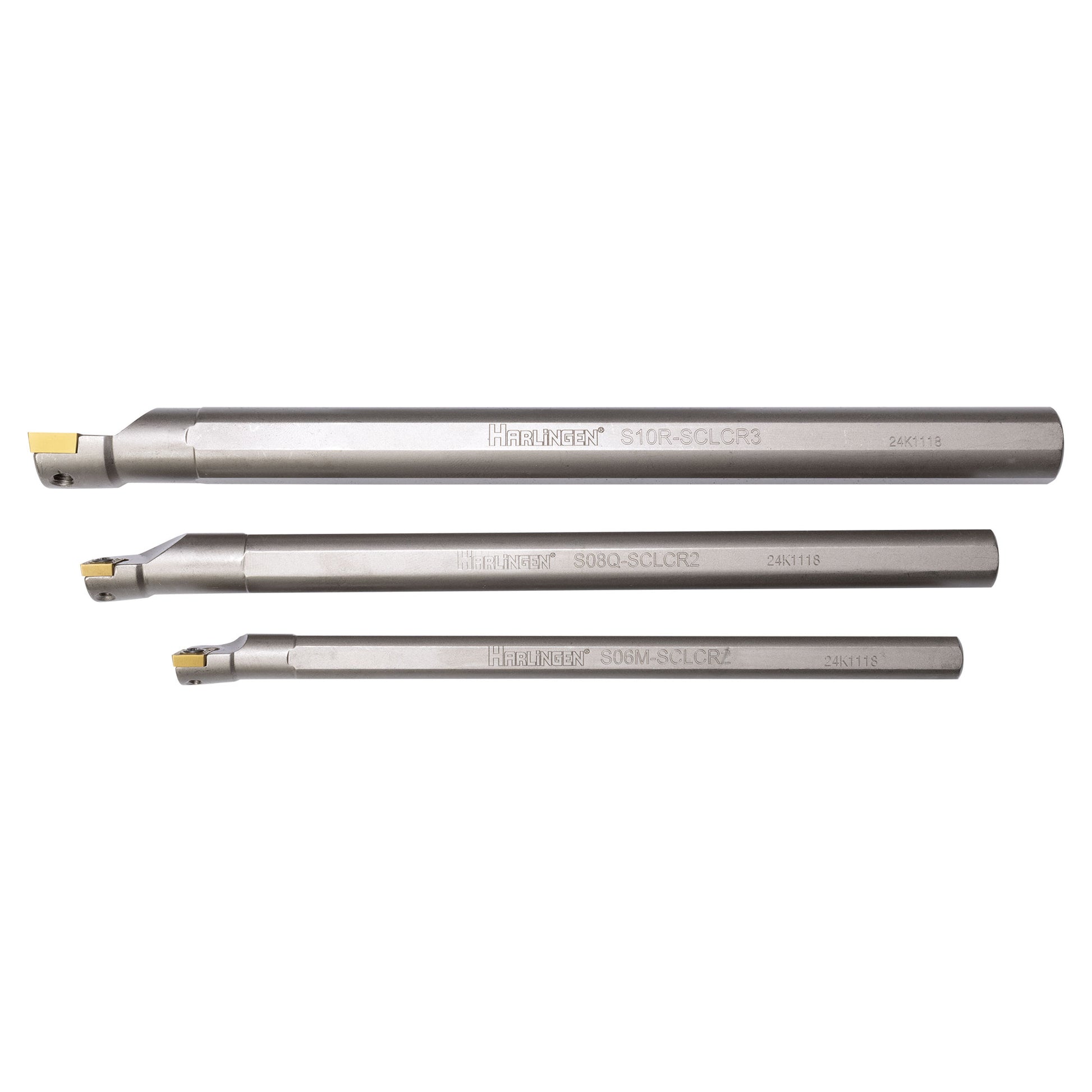

The 3/8" diameter bar is 6" long, designation S06M-SCLCR2
The 1/2" diameter bar is 7" long, designation S08Q-SCLCR2
The 5/8" diameter bar is 8" long, designation S10R-SCLCR3
All three boring bars are designated as having an approach angle of 95 degrees (offset shank with a negative 5 degree cutting angle) and utilizing an insert with a 7 degree relief angle. All three bars are Right Hand.

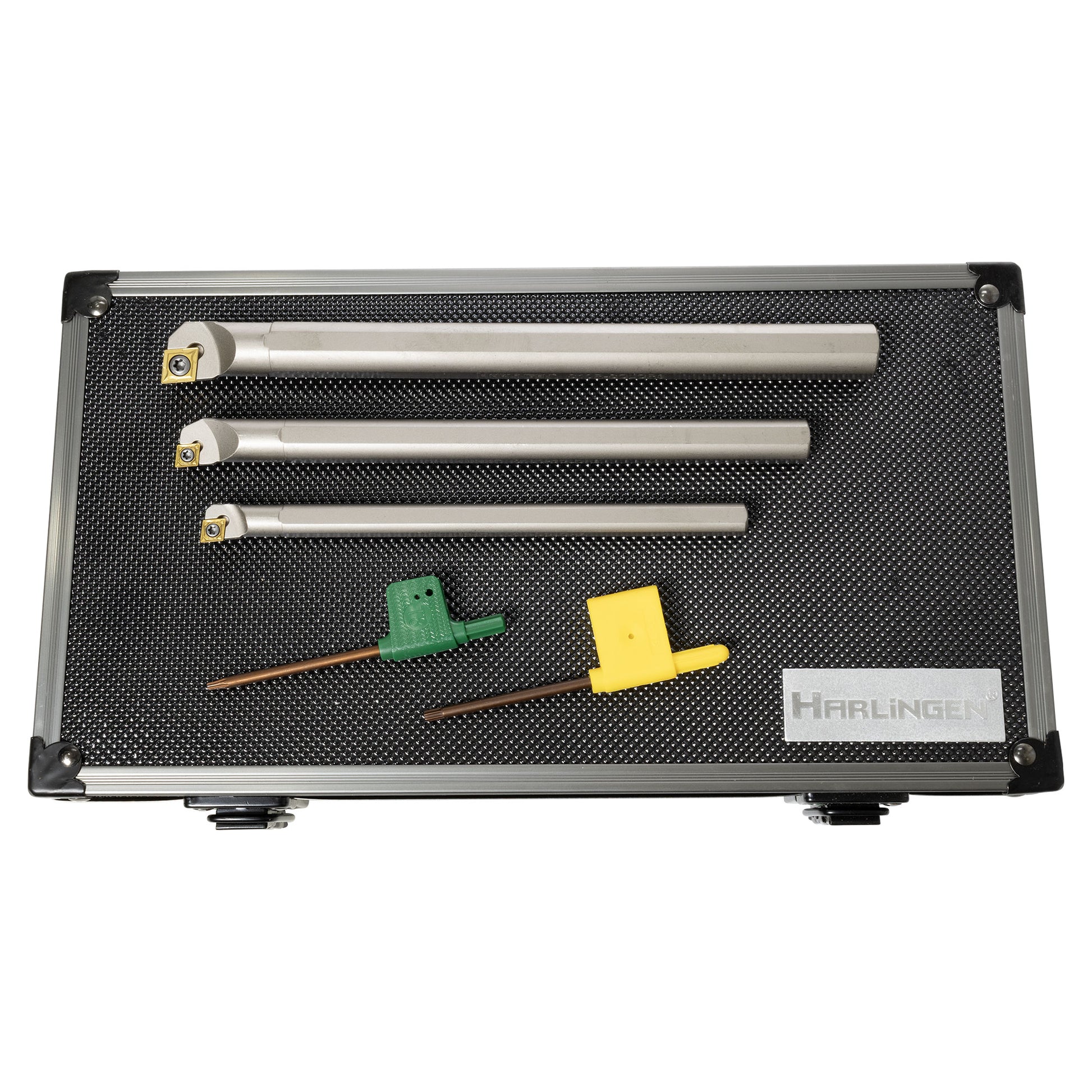

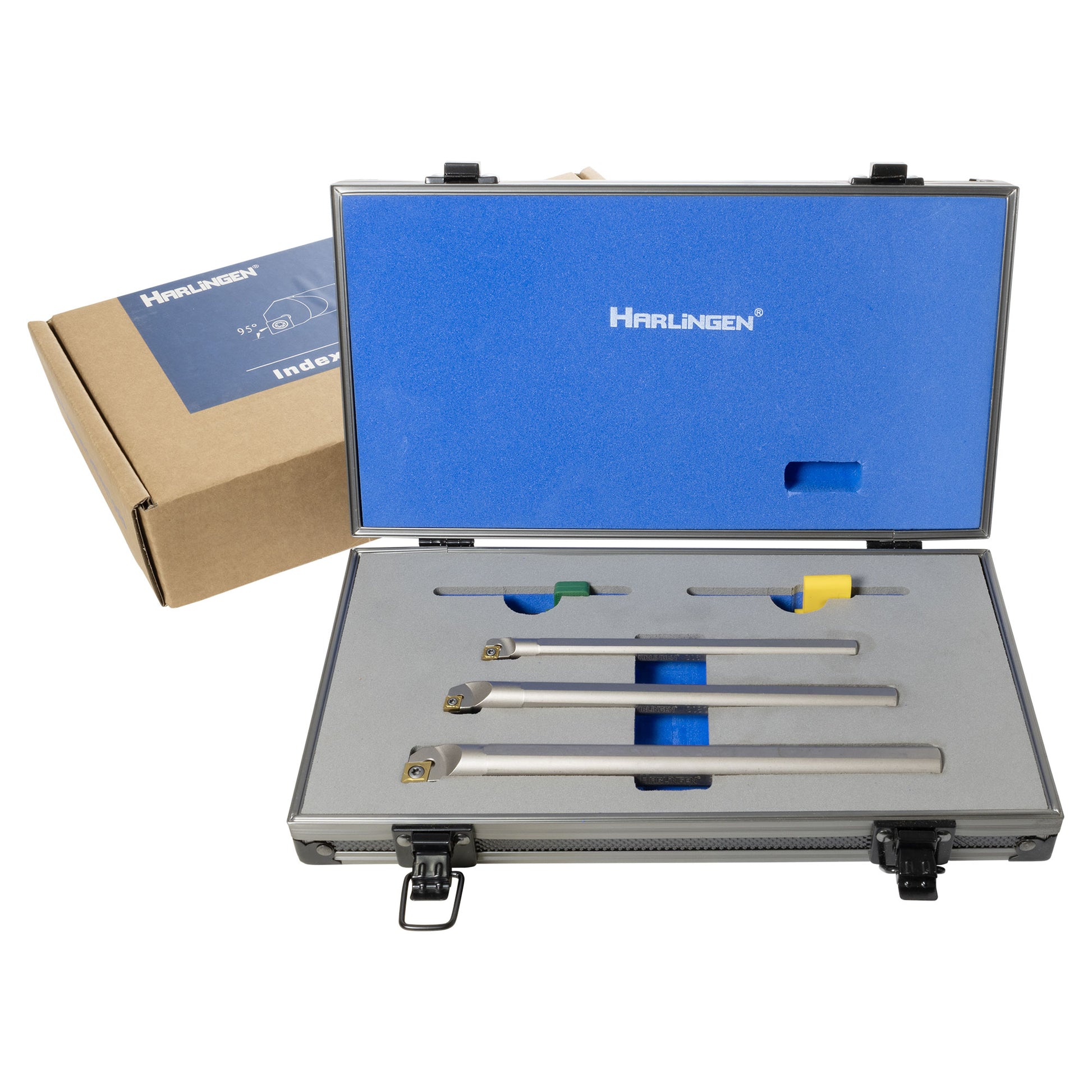

Set is packed in an aluminum case.
Chris's Tips
Make sure you get the correct inserts and retaining screws for your indexable turning tools.
Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.
