Boring Head Set, 3MT

Boring Head Set, 3MT

$129.95
$129.95
Sale Sold out
Shipping calculated at checkout.

Out of stock

3830 (A11 - 03)

Key Features

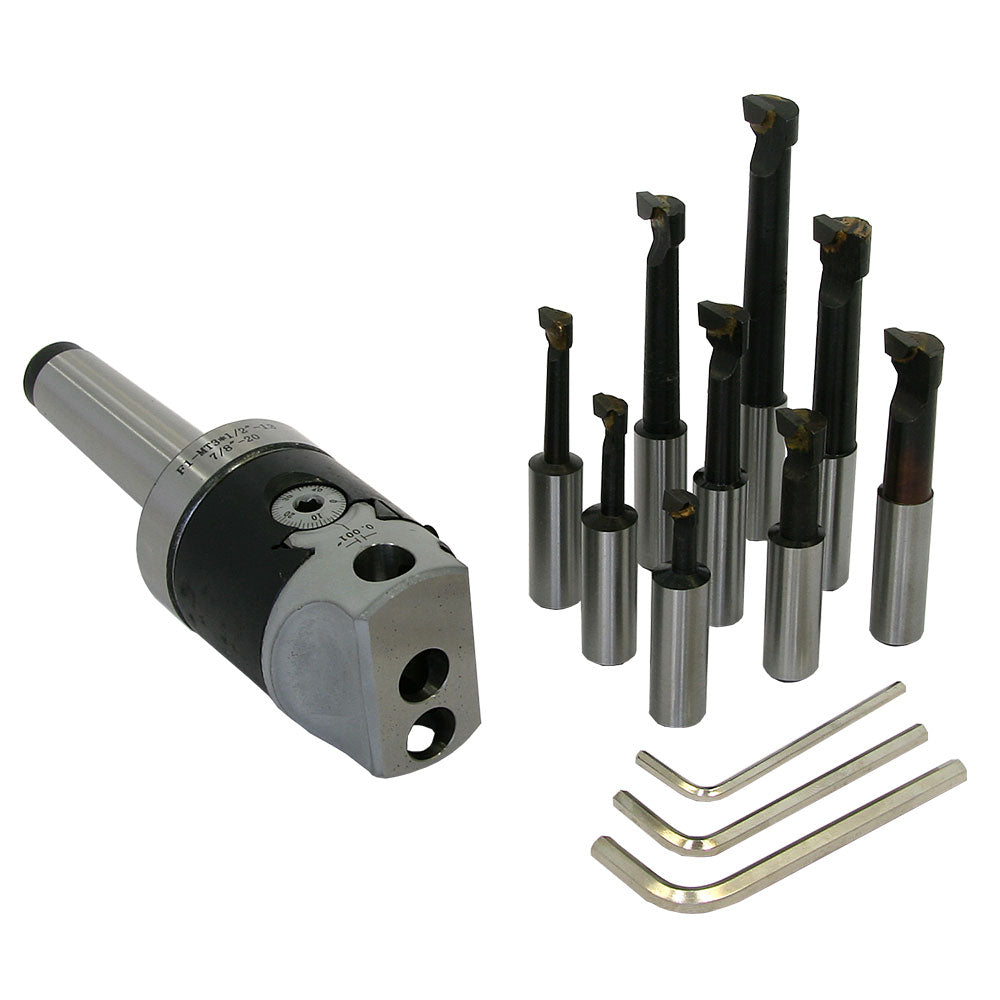

  • Includes boring head, 3MT shank, and 9-piece boring bar set
  • 2" diameter boring head holds 1/2" shank boring bars
  • The boring head offsets up to 5/8", dial is graduated in 0.001"
  • Minimum bore diameter is 5/16"
  • Maximum bore depth is 3"

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

The carbide tipped 9-piece boring bar set includes three different length boring bars each for minimum bores of 5/16", 7/16", and 9/16". The bore depth ranges from 3/4" to 3". The heat treated, alloy steel shanks are held to 0.000 to -0.0005" from the nominal diameter.
The drawbar thread is 3/8"-16.
Note: If you have a Grizzly G8689 or Micro-Mark 82573 mini mills with the 3 Morse taper spindle, that has a metric threaded drawbar, you will need our 3/8"-16 threaded drawbar P/N 1637 to use this boring head.
