• Bracket, Traditional DRO, Straight for Mills
  • Bracket, Traditional DRO, Straight for Mills
1 2

Bracket, Traditional DRO, Straight for Mills

Bracket, Traditional DRO, Straight for Mills

6468

$19.95 USD
$19.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Key Features

  • Traditional DRO display mounting arm for mills
  • Overall length 360 mm (14.17")
  • Arm L/W/H is 320mm x 20mm x 40mm (12.6" x 0.79" x 1.6")
  • Baseplate is 74 mm x 50 mm (2.91" x 1.97")
  • Comes with mounting hardware

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

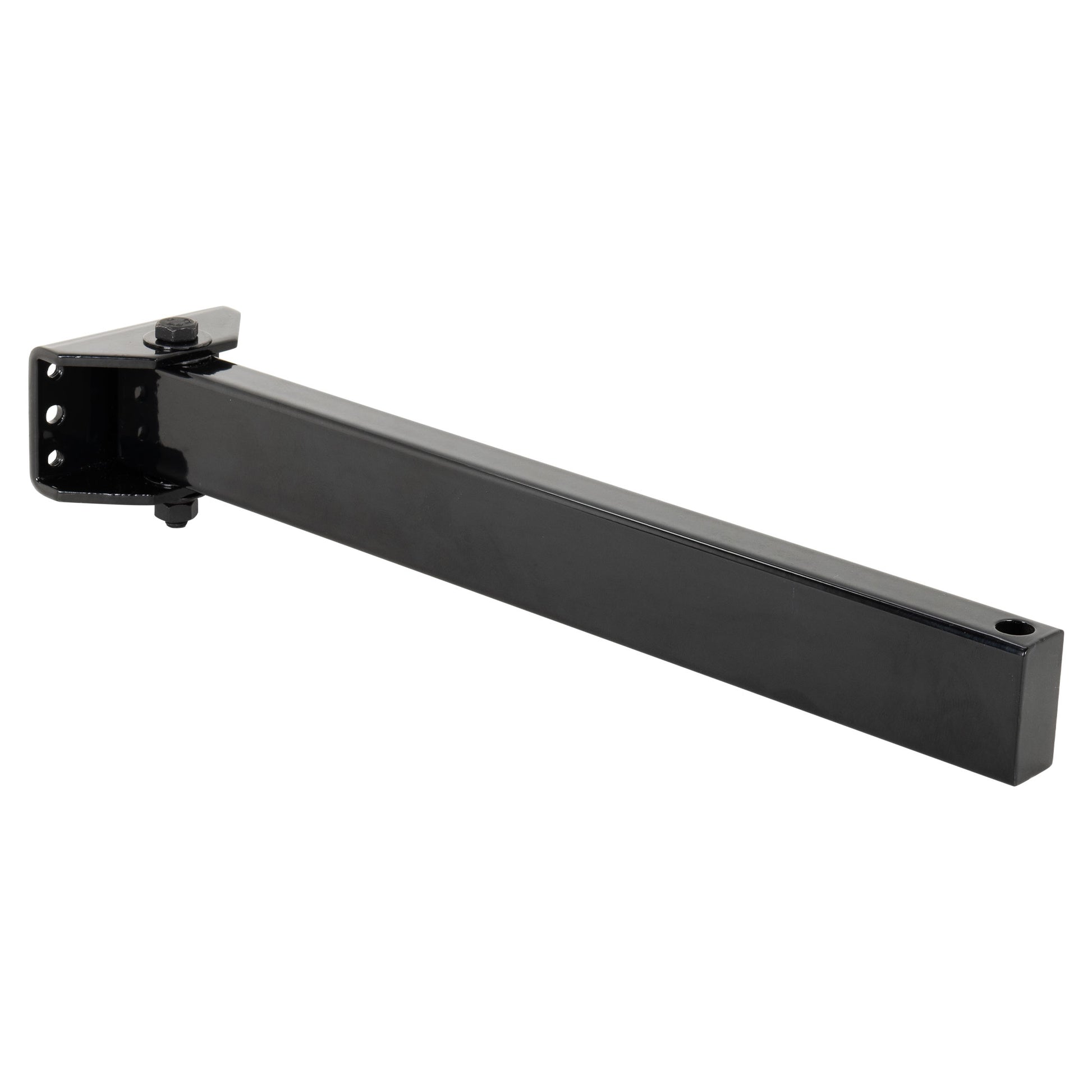

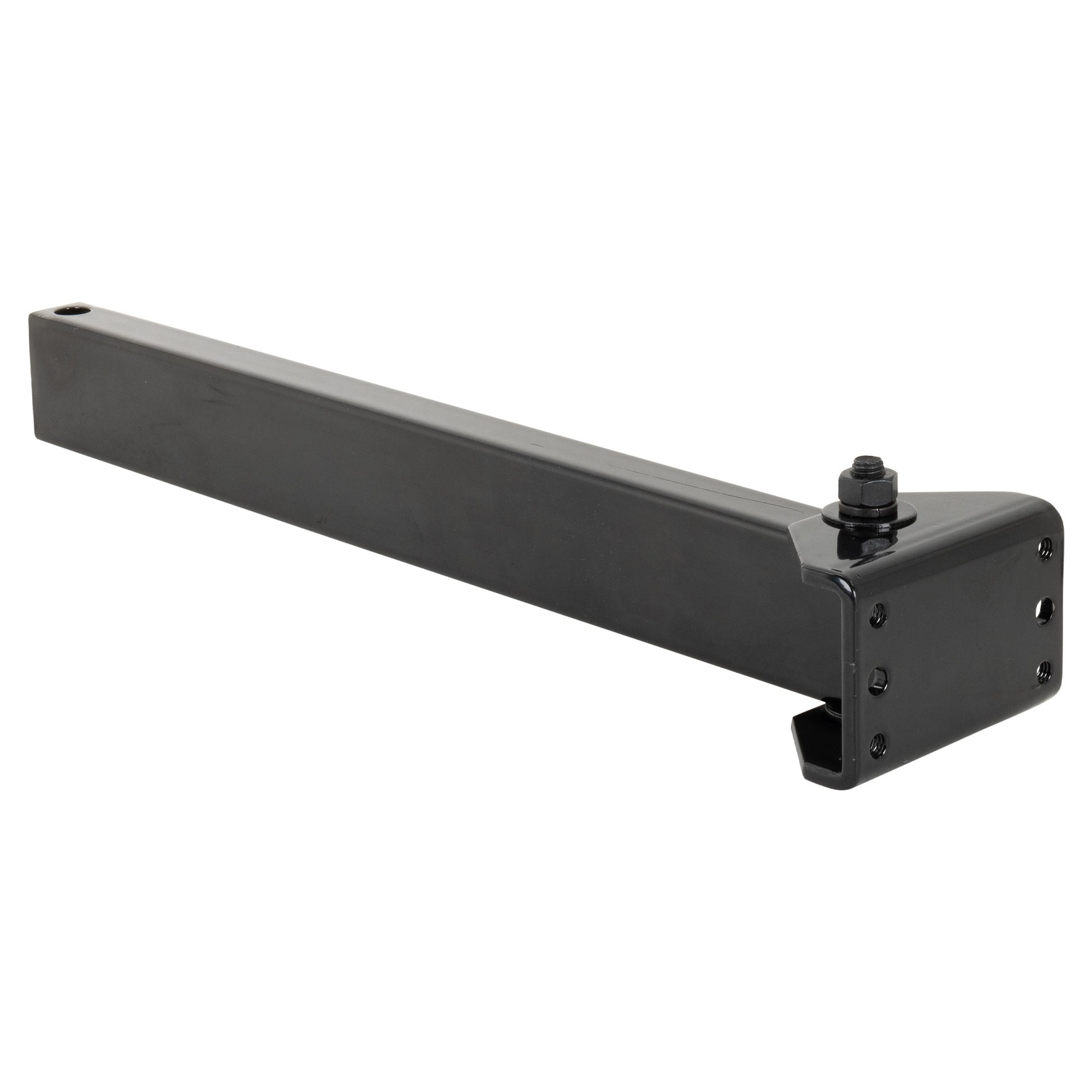

Mill mounting arm for the hard wired (traditional) DRO display. This mounting arm is designed to be mounted on the column of a mill. The arm can be rotated to the desired angle and tightened into place.
The arm is 320mm (12.6") from bracket to end, 20mm (0.79") wide, and 40mm (1.6") tall.
The end of the arm has a 10mm hole which is designed to accommodate the mounting pin on the back of the hard-wired DRO display.
The base bracket has six 6mm holes for mounting hardware. The baseplate is 74mm x 50mm (2.91" x 1.97").
The bracket is painted with a high-gloss heavy duty black paint.
Bracket comes with mounting hardware.
