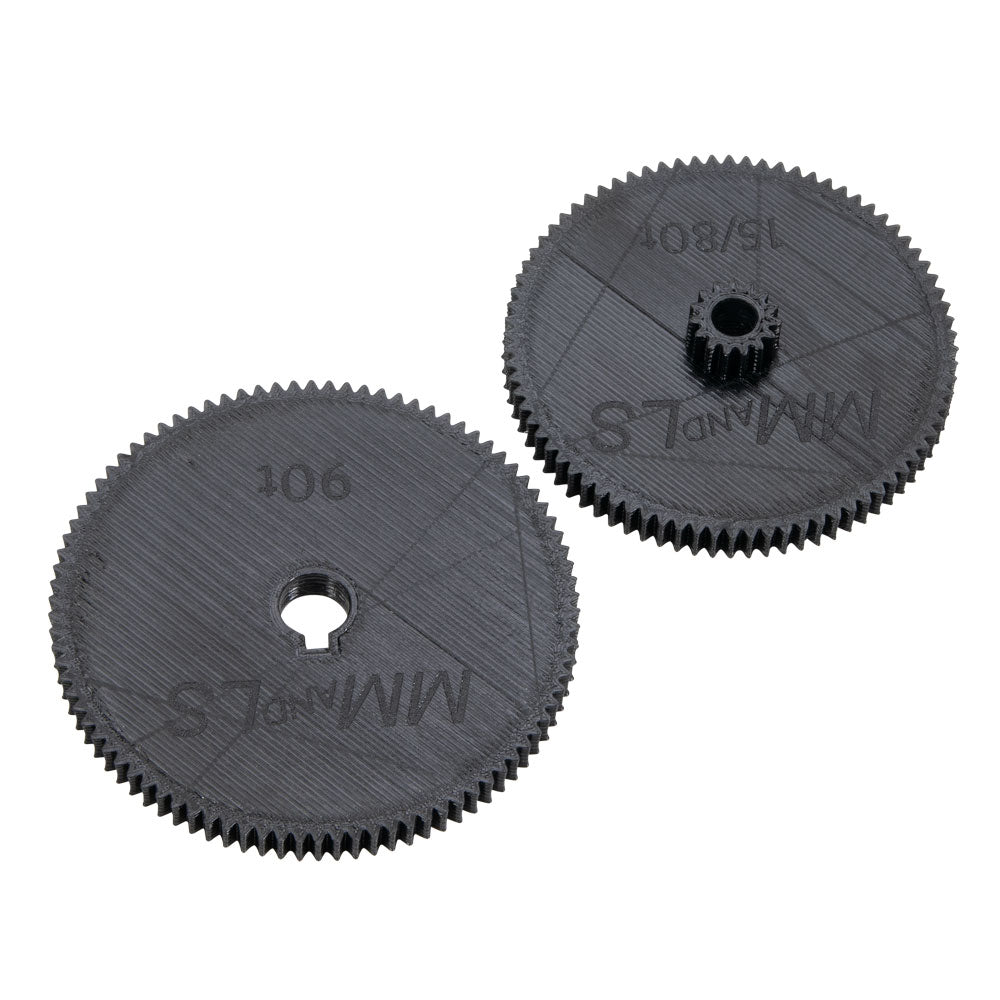

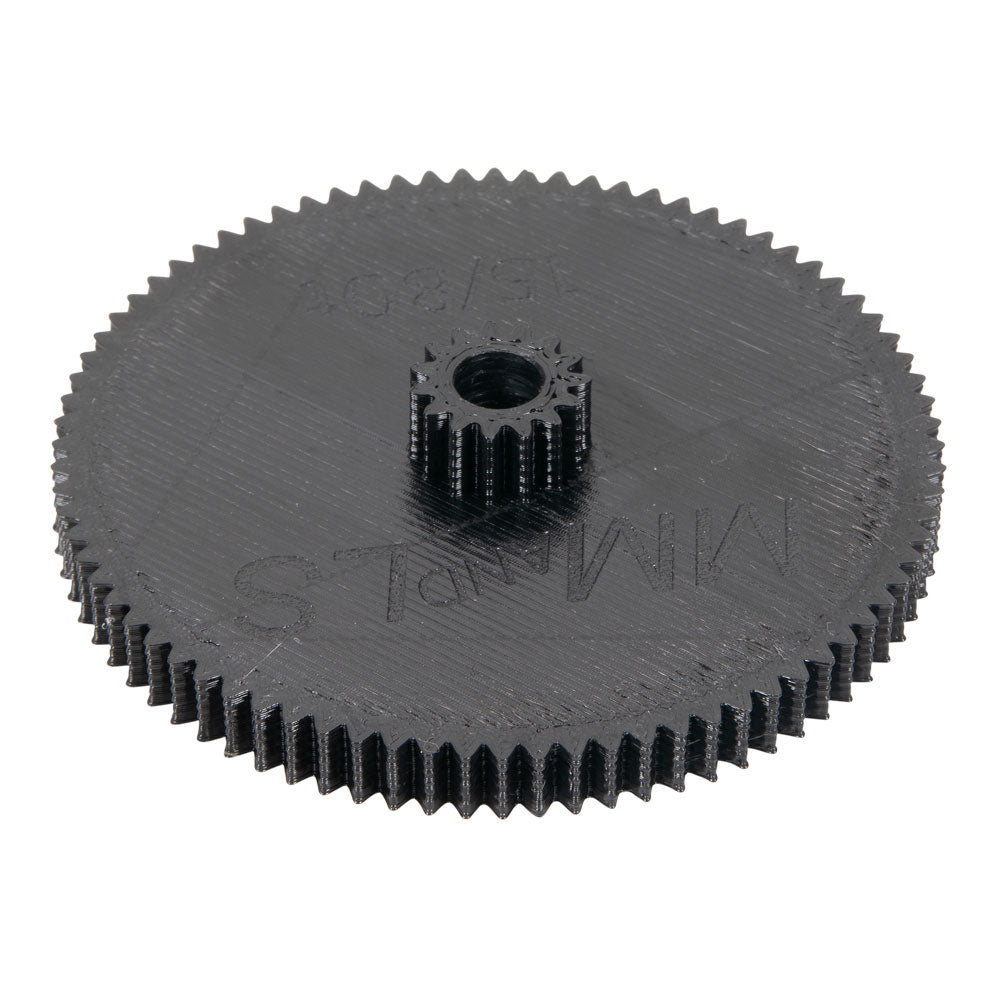

Change Gear Set, Fine Feed, Mini Lathe

Change Gear Set, Fine Feed, Mini Lathe

Made in United States of America (USA) Made in United States of America (USA)

$42.95
$42.95
Sale Sold out
Shipping calculated at checkout.

Low stock

1137 (D02 - 04)

Key Features

  • 80/15 and 90 teeth
  • Module 1 Metric gears
  • Bore 12 mm
  • Keyway 3 mm
  • Width 8 mm

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

This gear set reduces the feed rate for turning from 0.0039" per spindle revolution to 0.0026" per revolution. Slowing the feed rate can help improve the surface finish.

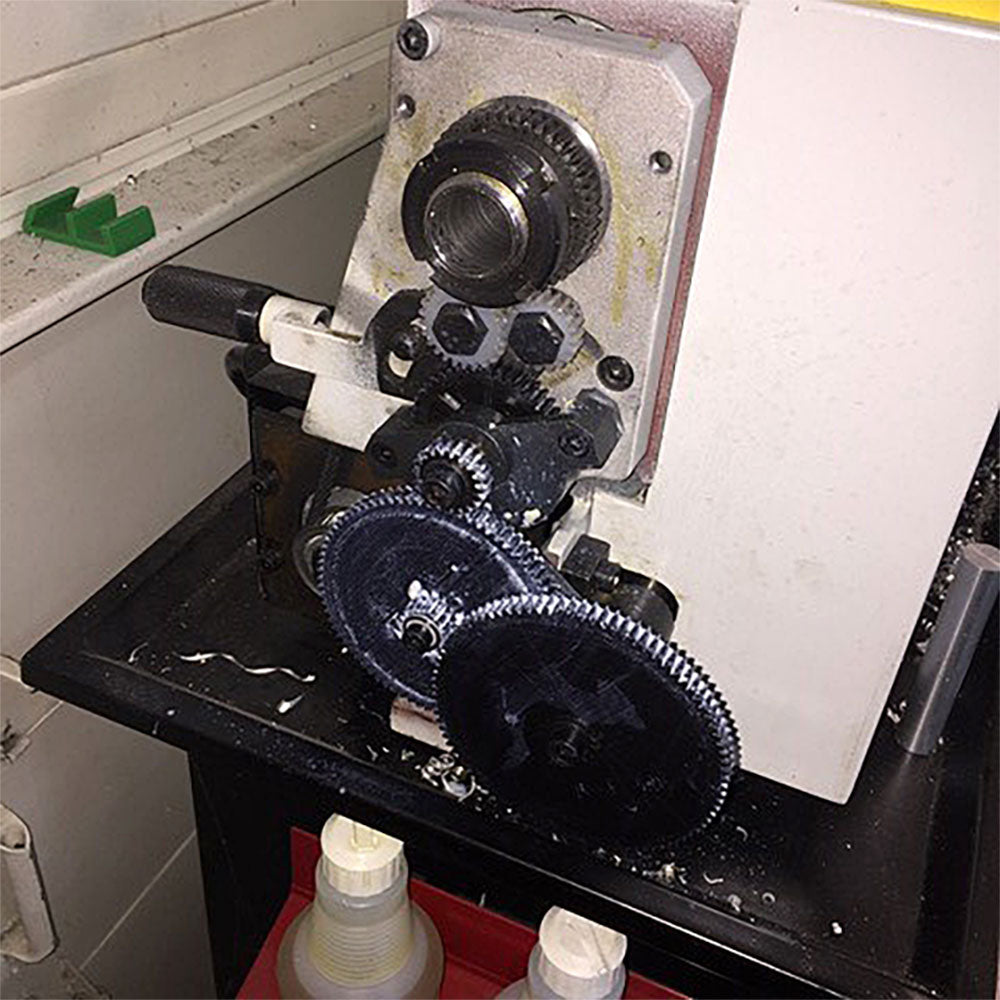

They replace the two 80 tooth gears and the lower 20 tooth gear.

Made from PETG filament (polyethylene terephthalate glycol) which is extremely durable, impact resistant, and chemical resistant.

Product Compatibility

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

  • Bolton CQ9318 7x12 Mini Lathe
  • Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
  • Cummins (Tools Now) 5278 7x12 Mini Lathe
  • Eastwood 32497 7x12 Mini Lathe
  • Grizzly G8688 7x12 Mini Metal Lathe
  • Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
  • Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
  • LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
  • LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
  • Northern Tool 49656 KLUTCH 7x12 Mini Lathe
  • Princess Auto 8507659 Powerfist 7x12 Mini Lathe
  • SIEG C2 7x12 Mini Lathe
  • Tormach 30689 7x12 Duality Lathe
  • Travers Tools OT222300 OTMT 7x12 Mini Lathe
  • Warco 3005 7x12 Mini Lathe (Imperial)
  • Warco 3004 7x12 Mini Lathe (Metric)
  • WEN 3455 WEN 7x12 Mini Lathe
  • Micro-Mark 82500 MicroLux 7x12 Mini Lathe
  • LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
  • LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
  • SIEG SC2 7x12 Mini Lathe
  • Micro-Mark 82710 MicroLux 7x14 Mini Lathe
  • LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
  • SIEG C3 7x14 Mini Lathe
  • Big Dog BD-0618Ax300 7x14 Mini Lathe
  • Big Dog BD-0618x300 7x14 Mini Lathe
  • Warco 4820-350 7x14 Mini Lathe (Metric)
  • Warco 4800-350 7x14 Mini Lathe (Imperial)
  • Grizzly G0765 7x14 Mini Lathe
  • Micro-Mark 84631 MicroLux 7x16 Mini Lathe
  • LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
