• Chip Tray, 7x14 Mini Lathe
1 1

Chip Tray, 7x14 Mini Lathe

Chip Tray, 7x14 Mini Lathe

5505

$44.95 USD
$44.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Metal chip tray, black
  • 28.8" x 13.9" x 0.6" (732 mm x 352 mm x 16 mm)
  • Fits SIEG C3 7x14 mini lathes
  • Holes align for securing mini lathe
  • Available in tray only or on a stand
*Will this fit my machine? Check our Replacement Parts

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

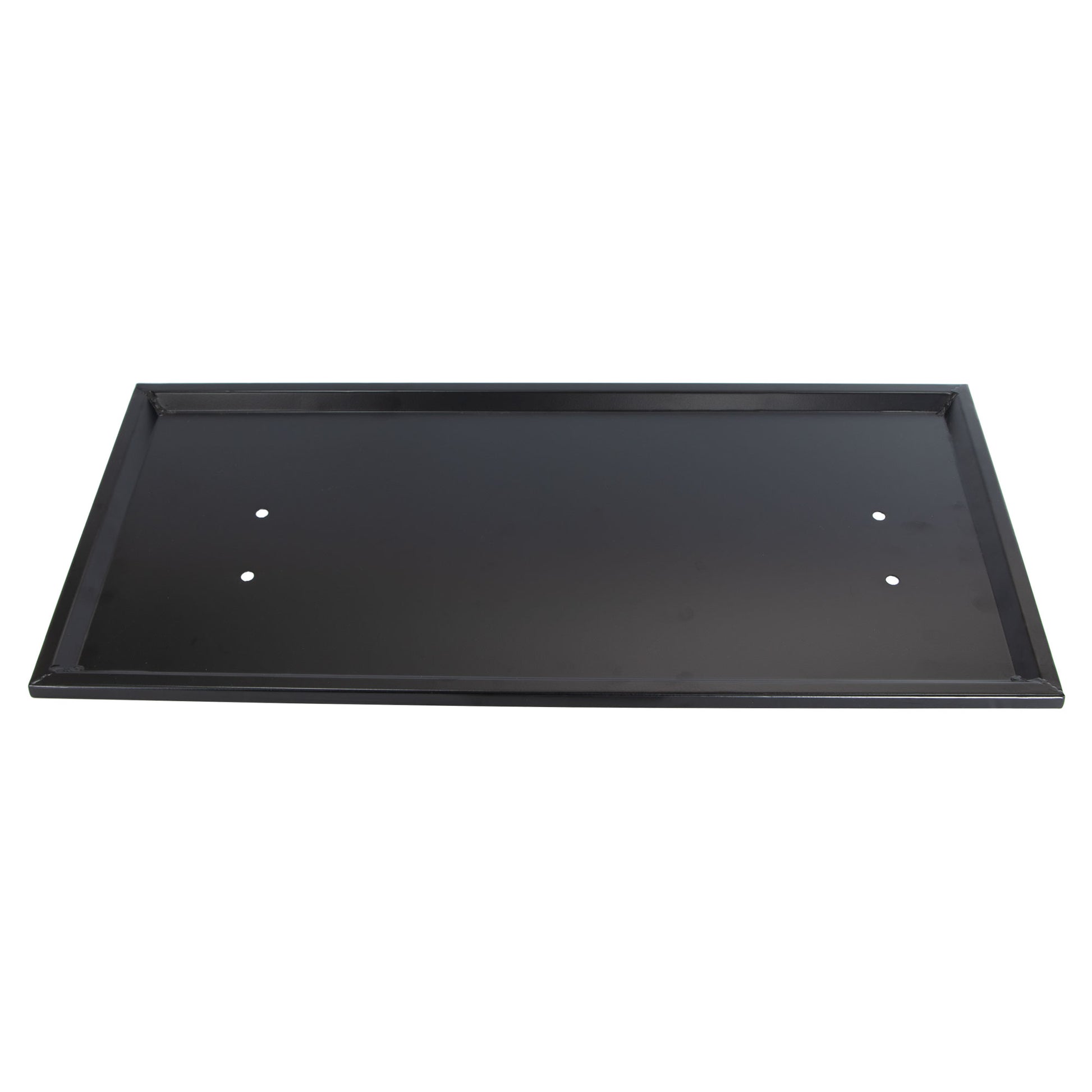

Chip tray for SIEG C3 7x14 mini lathes. Dimensions are 28.8" x 13.9" x 0.6" (732 mm x 352 mm x 16 mm). Predrilled holes in tray are sized for securing a compatible mini lathe.
This chip tray has been upgraded to be more robust than the trays that ship with most mini lathes.
Sold individually for bench mounting or on a stand cabinet. For full cabinet with tray, see product #5625.
See the Compatibility tab for machines that work with this product.

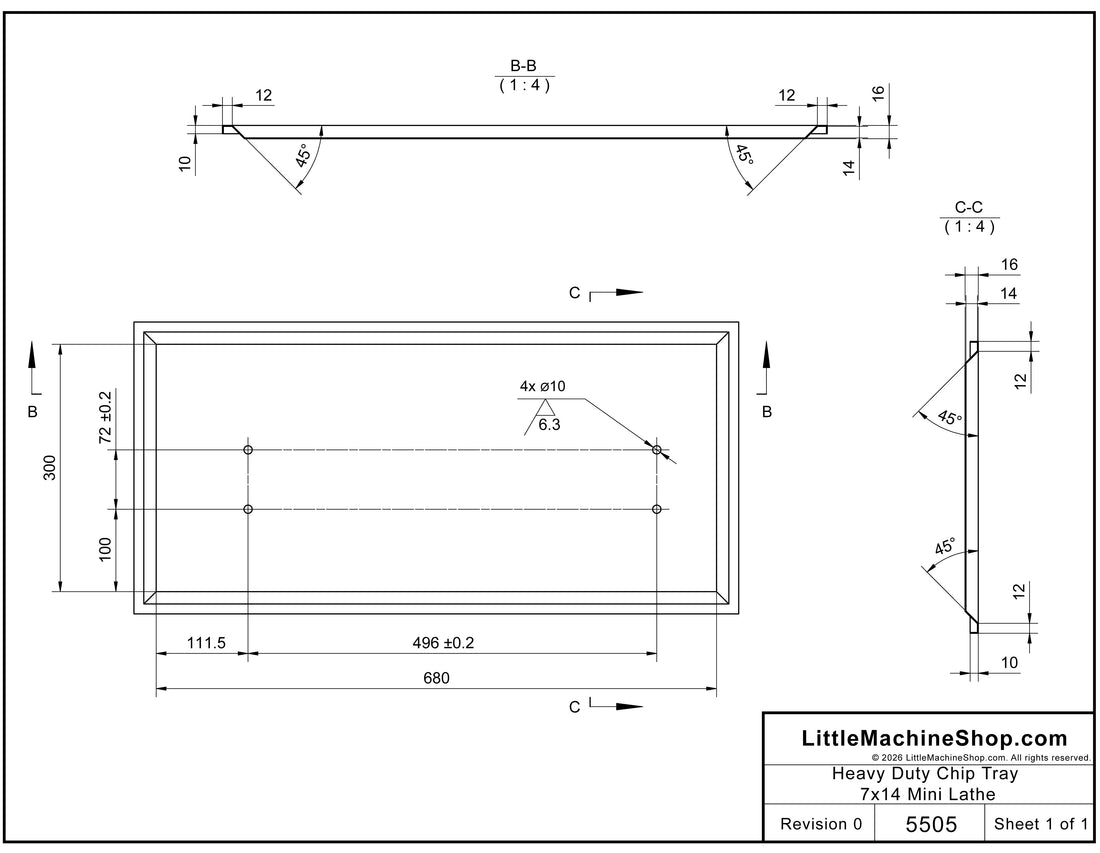

Specifications

Width Overall: 28.819" (732 mm)

Usable Width: 26.772" (680 mm)

Depth Overall: 13.858" (352 mm)

Usable Depth: 11.811" (300 mm)

Height Overall: 0.630" (16 mm)

Product Compatibility

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

  • Micro-Mark 82710 MicroLux 7x14 Mini Lathe
  • LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
  • SIEG C3 7x14 Mini Lathe
  • Big Dog BD-0618Ax300 7x14 Mini Lathe
  • Big Dog BD-0618x300 7x14 Mini Lathe
  • Warco 4820-350 7x14 Mini Lathe (Metric)
  • Warco 4800-350 7x14 Mini Lathe (Imperial)
  • Grizzly G0765 7x14 Mini Lathe
