Chuck Adapter, 1"-10 Thread 5" Diameter
Chuck Adapter, 1"-10 Thread 5" Diameter
SKU:2333
In stock
Couldn't load pickup availability
Key Features
Key Features
- Cast iron lathe chuck backplate adapter fits lathes with 1"-10 spindle nose thread
- Adapter is 5" (125 mm) in diameter and has no chuck mounting holes
- Use it for all 5" chucks
- Includes instructions for final turning of the registration diameter to ensure concentricity
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

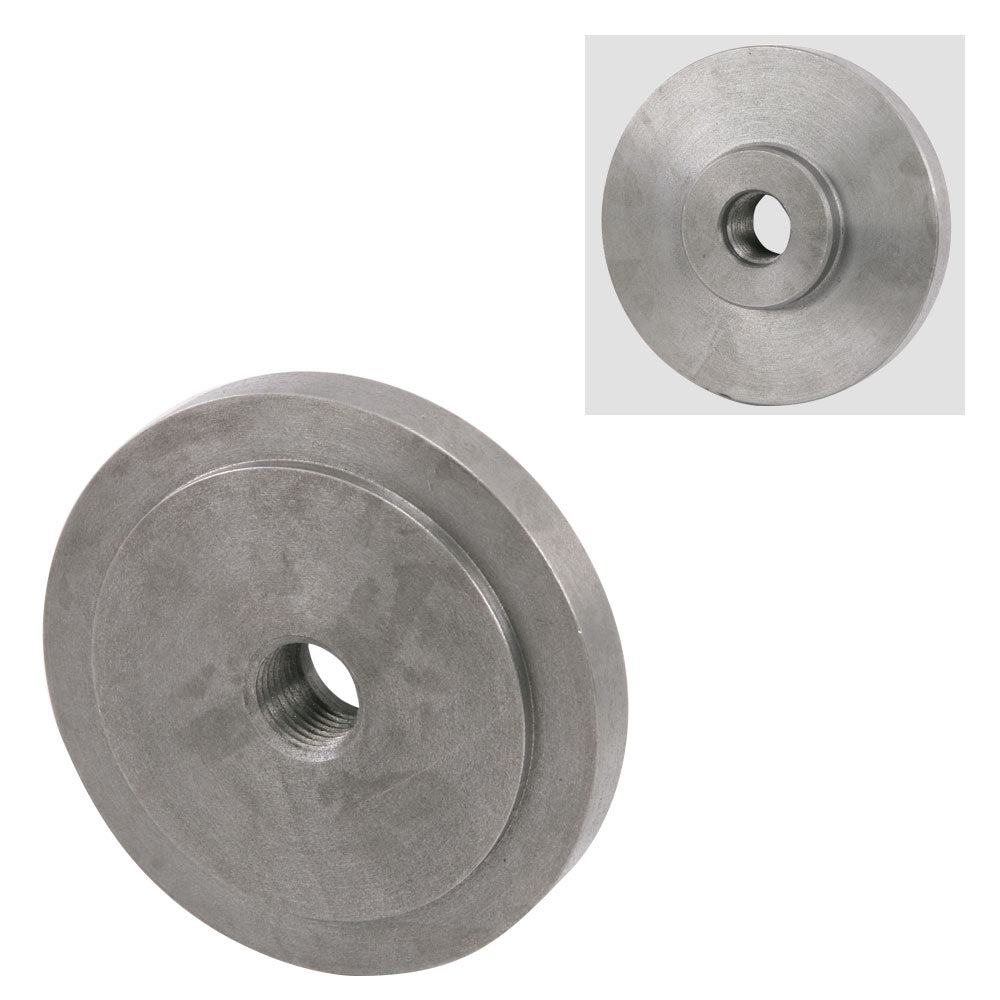

Cast iron lathe chuck adapter fits a lathe with a 1"-10 spindle nose thread. This adapter is 5" (125 mm) in diameter and has no chuck mounting holes. Use it for all 5" chucks.
*NOTE* These adapters require machining on the lathe on which they will be used.
Instructions are included for final turning of the registration diameter on your lathe to ensure perfect concentricity.
Chris's Tips
Too many adapters?
See our chart that correlates lathe spindle threads to lathe chuck adapters
Here is a chart that provides dimensions of threaded lathe chuck adapters.
These adapters must be machined on your lathe to fit the chuck so that it is concentric on the lathe. In most cases you have to drill the chuck mounting holes also.
WOODWORKERS: Our threaded adapters are not suitable for use on wood turning lathes. Please do not purchase them for this application. These adapters require machining on the lathe on which they will be used, and this is impossible on a wood lathe.
Specifications
Nominal Size: 5"
Outside Diameter: Ø 4.921",125 mm
Thread: 1"-10
Bolt Holes: None
Hub Diameter: Ø 2.205", 56 mm
Hub Length: Ø 0.394", 10 mm
Flange Thickness: Ø 0.630", 16 mm
Registration Boss: Ø 0.157", 4 mm
Registration Diameter: Ø 3.937", 100 mm
