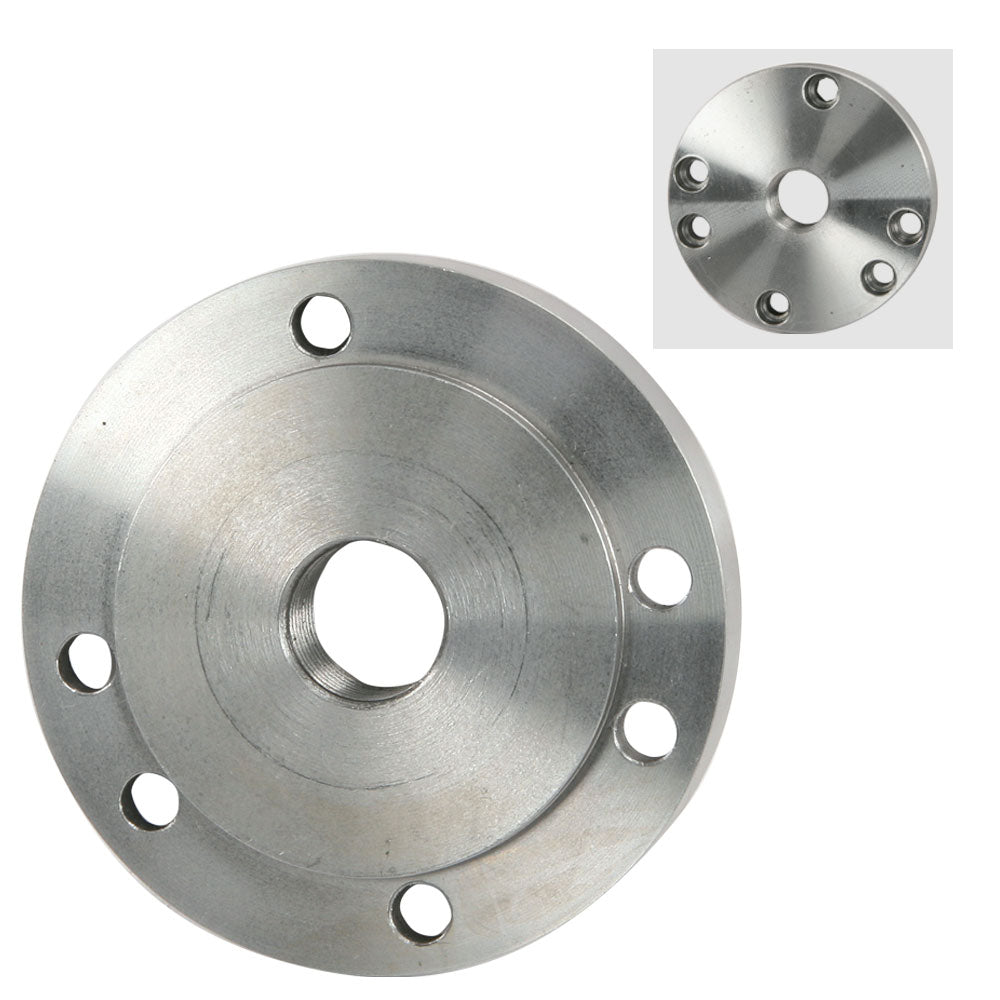

Chuck Adapter, 3/4"-16 Thread 3" Diameter, 6 Holes
Chuck Adapter, 3/4"-16 Thread 3" Diameter, 6 Holes
SKU:1920
In stock
Couldn't load pickup availability
Key Features
Key Features
- Cast iron lathe chuck backplate adapter fits lathes with 3/4"-16 spindle nose thread
- Adapts 3" (80 mm) plain back chucks to Sherline and Taig spindles
- Six mounting holes allow mounting 3-jaw or 4-jaw chucks
- Includes instructions for final turning of the registration diameter to ensure concentricity
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
With this adapter you can mount LittleMachineShop.com PN 1187 3" 3-Jaw chuck or PN 1175 3" 4-Jaw chuck on a Sherline or Taig lathe.
The spacer washer included is used on Taig spindles, but not on Sherline spindles.
*NOTE* These adapters require machining on the lathe on which they will be used.
Instructions are included for final turning of the registration diameter on your lathe to ensure perfect concentricity.
Chris's Tips
Too many adapters?
See our chart that correlates lathe spindle threads to lathe chuck adapters
Here is a chart that provides dimensions of threaded lathe chuck adapters.
These adapters must be machined on your lathe to fit the chuck so that it is concentric on the lathe. In most cases you have to drill the chuck mounting holes also.
WOODWORKERS: Our threaded adapters are not suitable for use on wood turning lathes. Please do not purchase them for this application. These adapters require machining on the lathe on which they will be used, and this is impossible on a wood lathe.
Specifications
Nominal Size: 3"
Outside Diameter: Ø 3.150",80 mm
Thread: 0.75"-16
Bolt Holes: 6
Bolt Size: M6
Bolt Circle: Ø 2.598", 66 mm
Hub Diameter: None
Hub Length: None
Flange Thickness: Ø 0.472", 12 mm
Registration Boss: Ø 0.118", 3 mm
Registration Diameter: Ø 2.165", 55 mm
