  • Clamp, Adjustable 8mm T-slot
1 3

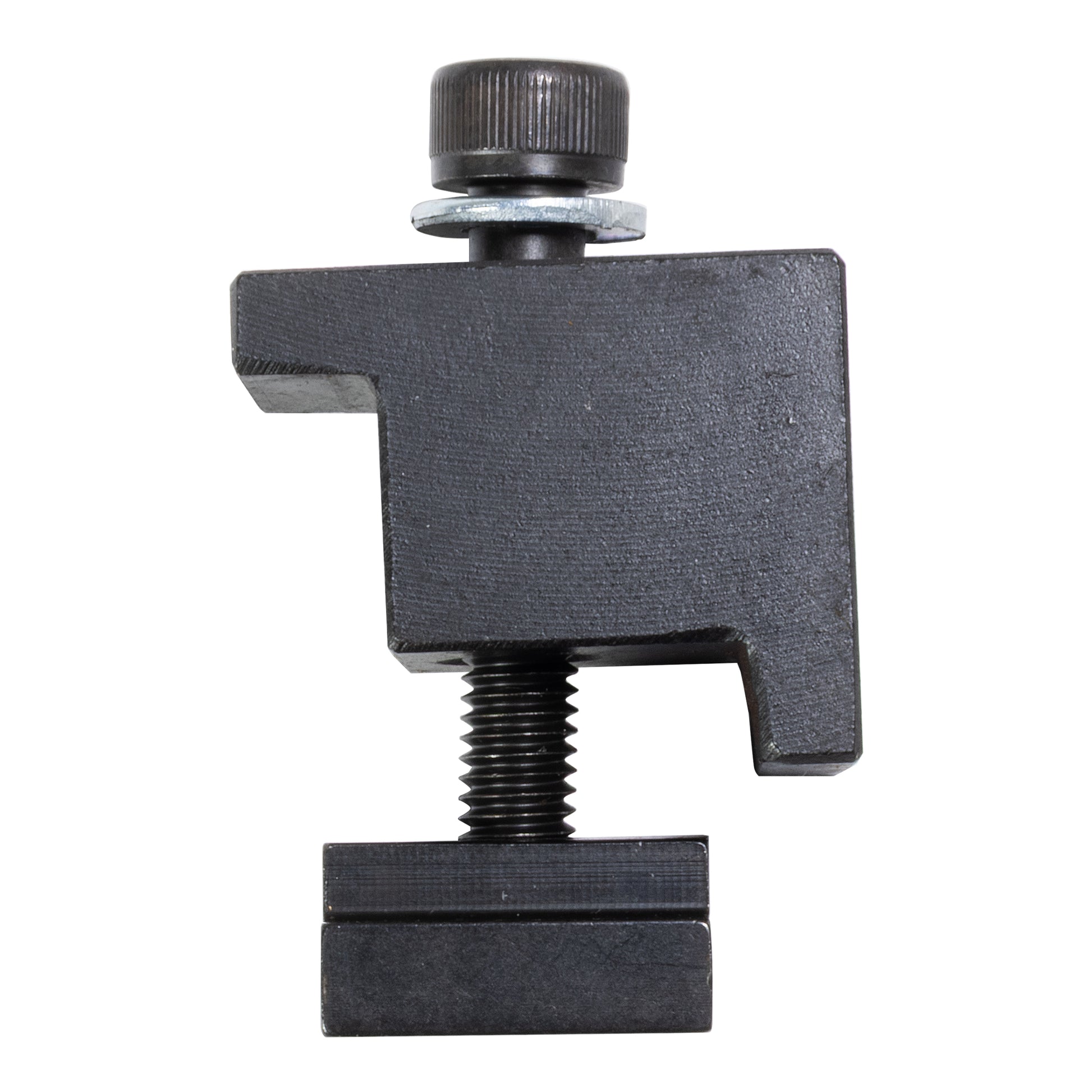

Clamp, Adjustable 8mm T-slot

Clamp, Adjustable 8mm T-slot

$4.95
$4.95
Sale Sold out
Shipping calculated at checkout.

In stock

6859 (BO4 - 07)

Key Features

  • One piece assembly allows quick set-up
  • Instant height adjustment
  • Attached brass covers protect machine table and workpiece
  • Fits 7/16" and 12 mm T-slots
  • Clamps work up to 1.75" (44 mm) thick, clamp is 1.35" (34 mm) wide overall

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

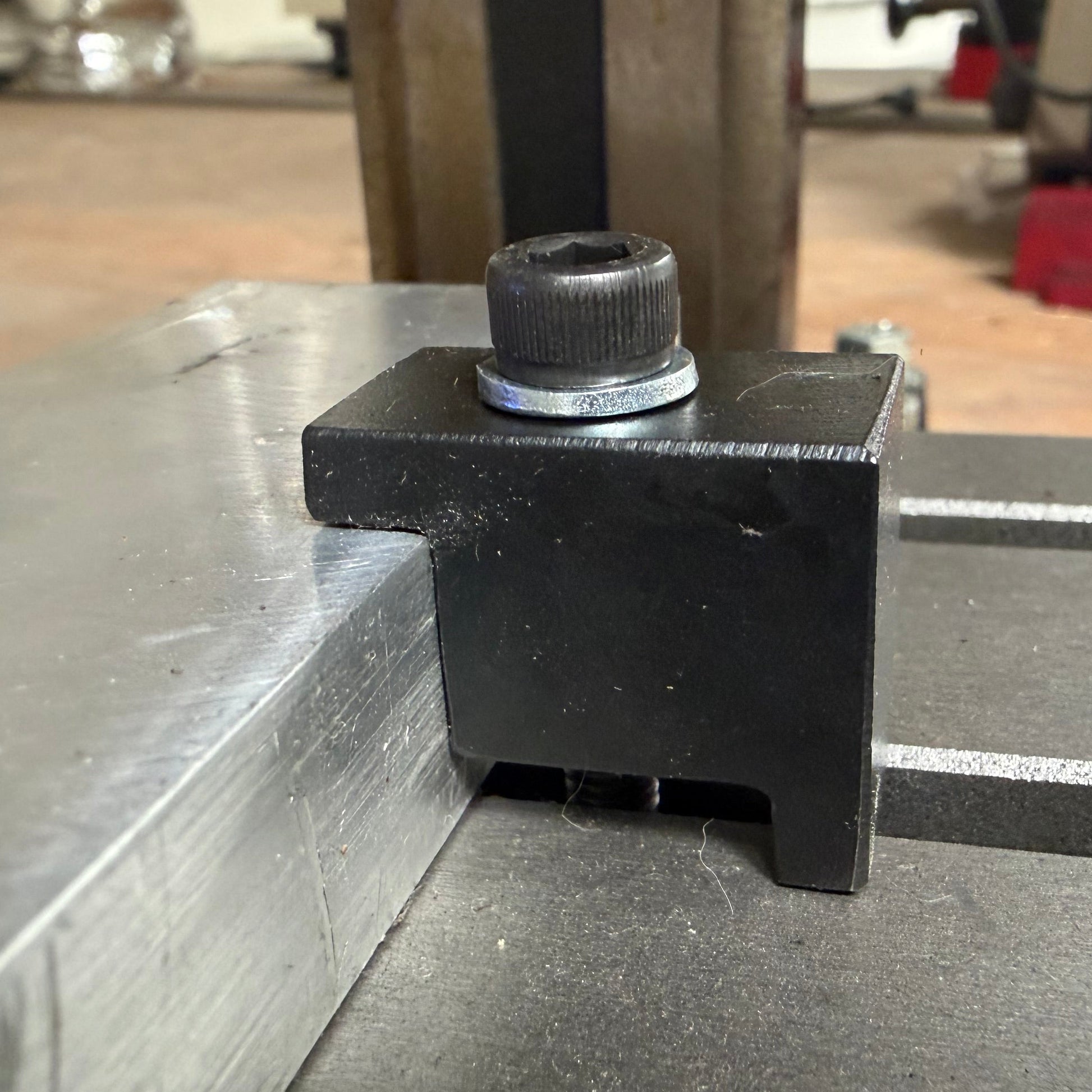

This adjustable clamp fits into the 8mm T-slots on the micro mill table, X-Y table, and rotary table with 8mm T-slots. Make sure to purchase the number you need (2, 3, 4, etc.)

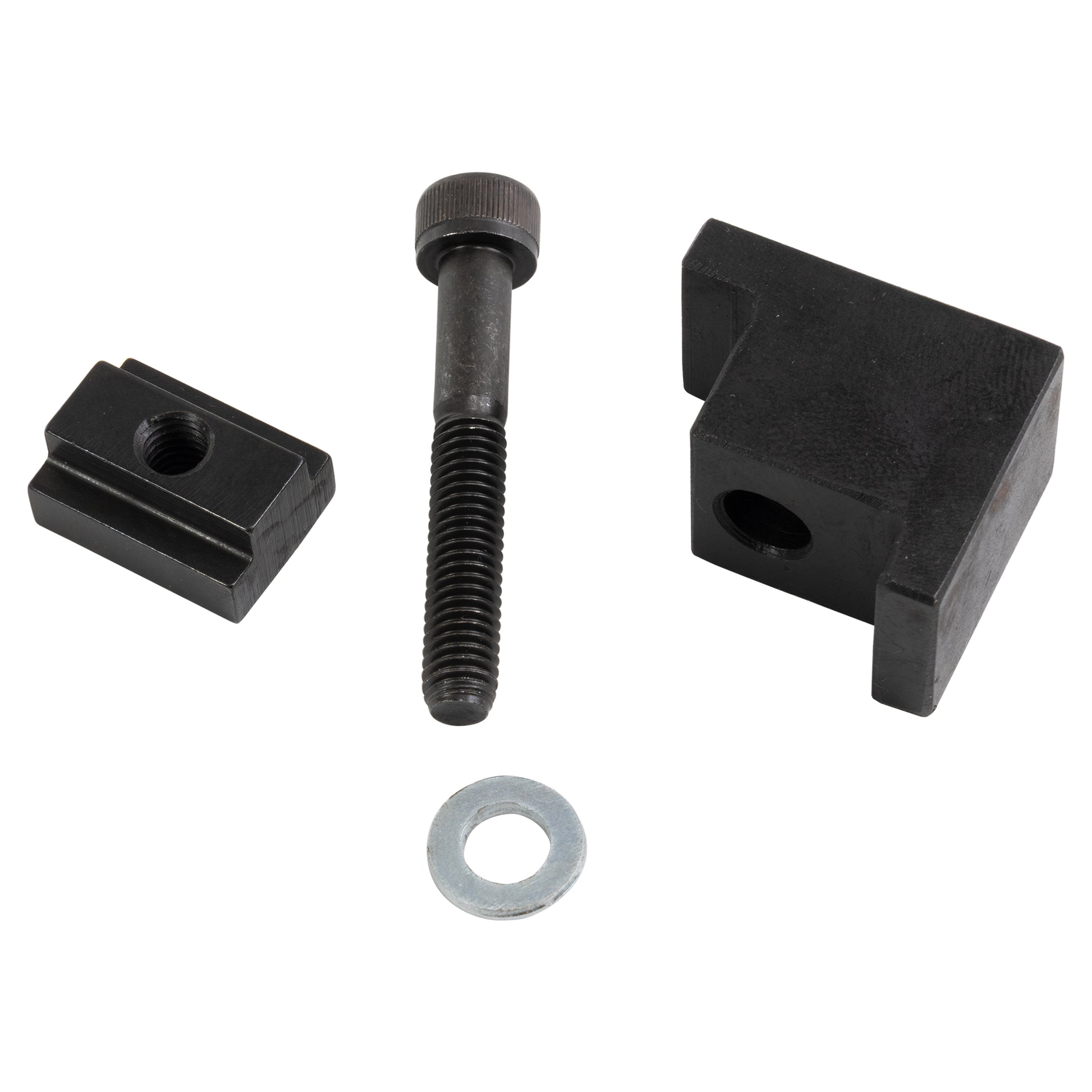

Kit includes:

  • 1 Clamp with a 20mm clamping height and 18mm clamp width
  • 1 8mm T-slot nut
  • 1 M6 x 40 Socket Head Cap Screw
  • 1 M6 Washer

Clamps are sold separately. Use two or more clamps depending on application.

Chris' Tips

Measure the width at the top of the T-slot on your mill table as shown in the photo below.

This is the dimension given for T-slot nuts and clamping kits. For example, if you measure 0.468 at the top of the T-slot, you should get a 7/16” (0.438”) T-slot nut or clamping kit.

T-slot measuring

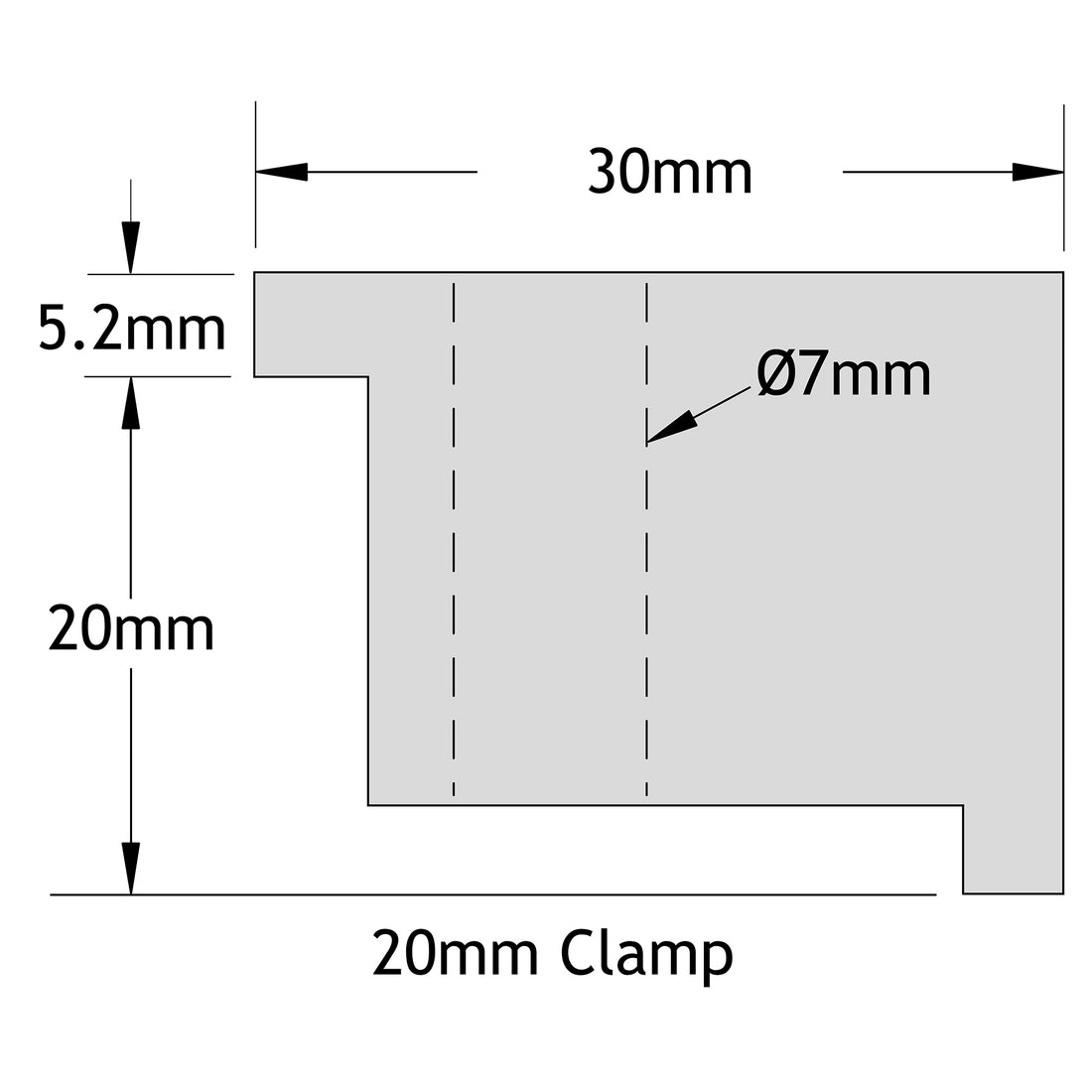

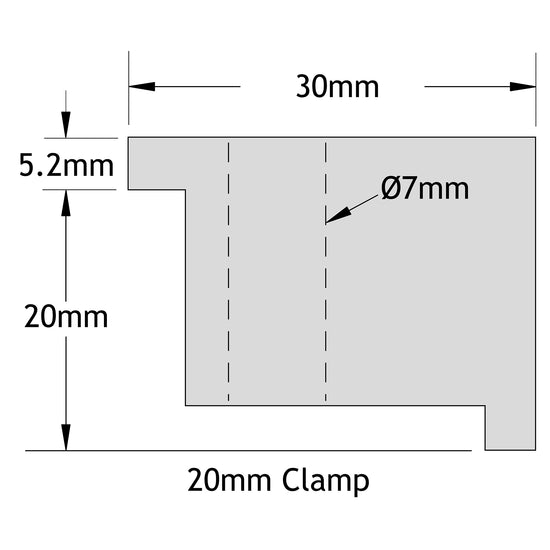

Drawings
