Description
This set of T-slot nuts and clamping bars fits our 4" H/V rotary table (PN 1927). This mill clamp set also fits Taig micro mills. (See the Compatibility tab for machines that work with this product.)

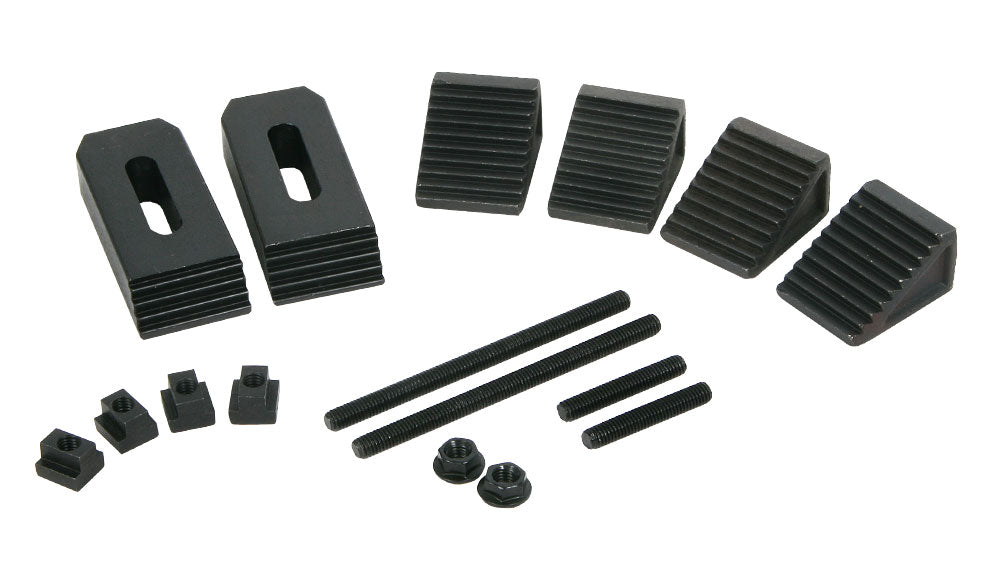

The clamping kit includes 4 studs of two different lengths, 4 step blocks in pairs, 4 T-slot nuts, 2 flange nuts, and 2 step clamps.
The stated dimension of the clamping kit is the width at the top of the T-slot.
Chris's Tips

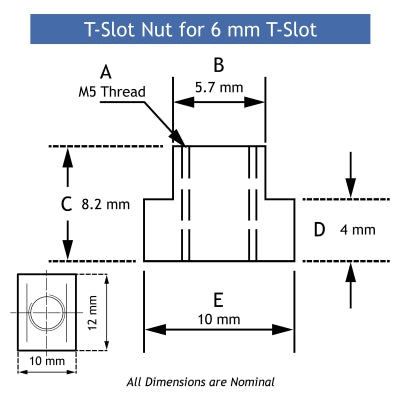

Following are the dimensions of the T-slot nuts that we sell separately or as part of a set.
Measure the width at the top of the T-slot on your mill table as shown in the photo below.
This is the dimension given for T-slot nuts and clamping kits. For example, if you measure 0.468 at the top of the T-slot, you should get a 7/16” (0.438”) T-slot nut or clamping kit.
